Velopedia Bicycle Archive

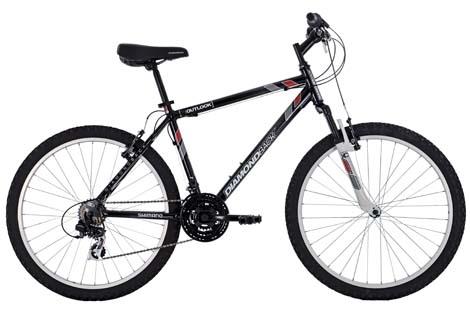

2011 Diamondback OUTLOOK
Mountain bike, front suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $0.00
- Sizes
- XXS (12"), XS (14"), SM (16"), MD (18"), LG (20"), XL (22")
- Colors
- Black
- Archive ID
- 23472
Current market
Checking current listings…Frameset
| Frame Construction | Aluminum |
|---|---|
| Frame Material | 6061-T6 aluminum |
| Fork | Trail XC, 50mm travel |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano Revo RS25 light action twist |
| Front Derailleur | Shimano Tourney, top pull |
| Rear Derailleur | Shimano TZ-40 |
| Crankset | MTB w/chainguard, 24/32/42t teeth |
| Bottom Bracket | Sealed mechanism |
| Cassette | Freewheel |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | KMC Z51 |
| Pedals | MTB Resin |
Brakes
| Brakes | Alloy linear brakes, Alloy linear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Threaded |
|---|---|
| Handlebar | Steel riser |
| Handlebar Extensions | Not included |
| Stem | Steel Quill w/ Alloy Cap |
| Saddle | DB Men's ATB |
| Seatpost | Steel pillar, 27.2mm diameter |
Wheels & Tires
| Hubs | QR |
|---|---|
| Rims | SSW26 alloy, 32-hole |
| Spokes | 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Kenda Dual Sport |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
