Velopedia Bicycle Archive

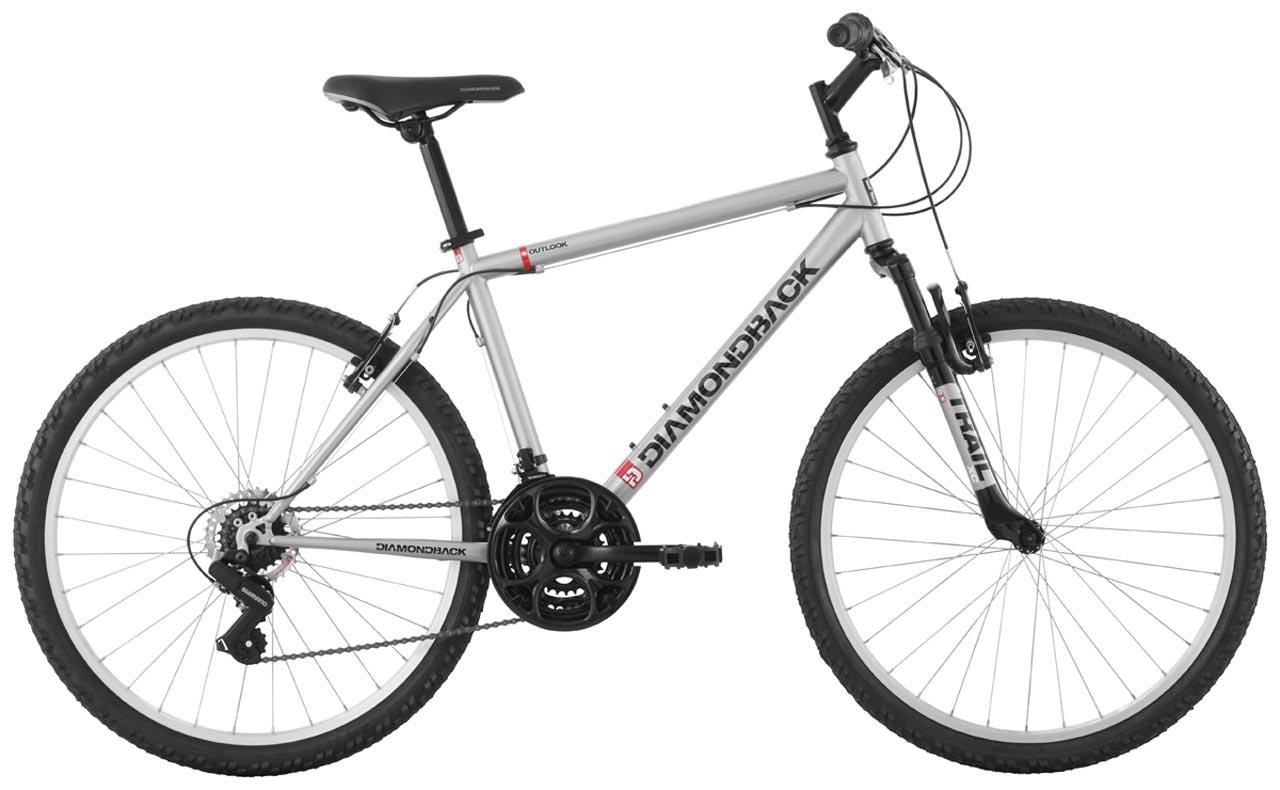

2009 Diamondback Outlook
Mountain bike, front suspension bicycle from the Velopedia historical specification archive.
- Original MSRP
- $0.00
- Sizes
- Xxsmall, xsmall, small, medium, large, xlarge
- Colors
- Gloss Silver
- Archive ID
- 18937
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Hi-tensile steel |
| Fork | Trail XC, 50mm travel |
| Fork Material | Single |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | SunRace TSM-23 Twist |
| Front Derailleur | Shimano Tourney |
| Rear Derailleur | Shimano TZ-40 |
| Crankset | MTB w/chainguard, 28/38/48 teeth |
| Bottom Bracket | Cartridge |
| Cassette | Freewheel |
| Rear Cogs | 7-speed, 13 - 34 teeth |
| Pedals | MTB Resin |
Brakes
| Brakes | Alloy linear brakes, Alloy linear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Threaded |
|---|---|
| Handlebar | Steel riser |
| Handlebar Extensions | Not included |
| Stem | Steel quill |
| Saddle | DB Men's ATB |
| Seatpost | Steel pillar, 27.2mm diameter |
Wheels & Tires
| Hubs | Steel |
|---|---|
| Rims | SSW26 alloy, 32-hole |
| Spokes | 14ga. (2.0mm) |
| Front Tire | 26 x 1.95" Kenda Dual Sport |
| Wheel Size | 26" wheels |
Historical specifications are presented as an archival reference. Component specifications may have varied by market, size, or production run.
