Lowest0.69:1
Highest3.82:1
Total range555%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 29×2.1; rear size isn’t listed.
Velopedia Bicycle Archive

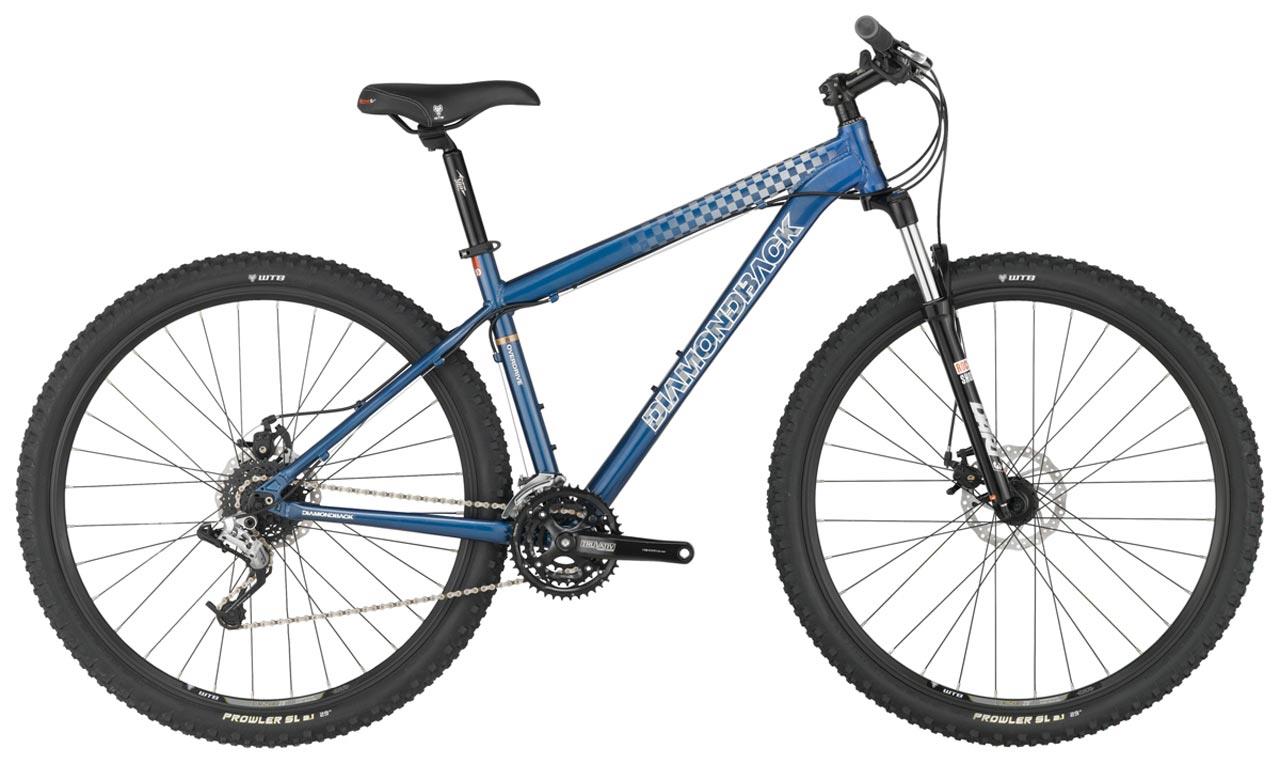

2009 Diamondback Overdrive
Original specifications: SRAM X4 · 8-speed · mechanical rear derailleur · 29" wheels.
Planning to sell? Draft your listing
At a glance
Archive #18919- Model year
- 2009
- Category
- Mountain
- Sizes
- S, M, L, XL
- Colors
- Metallic Royal Blue
- In this record
- 26 specifications · archived image
Model history 6 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Metallic Royal Blue
- Frame
- 6061-T6 aluminum
- Original equipment
- SRAM X.4/mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original build6061-T6 aluminum · SRAM X.4/mix · 29" wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 6061-T6 aluminum |
| Fork | RockShox Dart 3 29er |
| Fork Material | Single |
Drivetrain
| Component Group | SRAM X.4/mix |
|---|---|
| Shifters | SRAM X.4 trigger |
| Front Derailleur | Shimano Acera |
| Rear Derailleur | SRAM X.4 |
| Crankset | TruVativ ISOFlow 3.0, 22/32/42 teeth |
| Bottom Bracket | Sealed cartridge |
| Cassette | SRAM PG-820 |
| Rear Cogs | 8-speed, 11 - 32 teeth |
| Chain | KMC Z82 |
| Pedals | Wellgo alloy body/cage |
Brakes
| Brakes | Hayes HMX-4 w/ 6" rotor brakes, Hayes HML levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Cane Creek |
|---|---|
| Handlebar | Avenir 100 |
| Handlebar Extensions | Not included |
| Stem | Avenir 100 31.8mm clamp |
| Saddle | WTB Speed V Sport |
| Seatpost | Avenir 100, 30.9mm diameter |
Wheels & Tires
| Hubs | Alloy disc |
|---|---|
| Rims | WTB FX28, 32-hole |
| Spokes | Stainless, 14ga. (2.0mm) |
| Front Tire | 29 x 2.10" WTB Prowler SL |
| Wheel Size | 29" wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
KMC Z82
Retailer offers
SRAM PC-830 Chain One Color, 8 Speed
Replacement option
29 x 2.10" WTB Prowler SL
Retailer offers
Schwalbe RapidRob Performance 29in Tire Black, Clincher/Wire, 29x2.1
Replacement option
WTB Prowler SL on eBaySponsored links
Avenir 100
30.9mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 30.9x375mm
Replacement option
More parts (6)Fewer parts
WTB Speed V Sport
Shimano Acera
SRAM X.4
SRAM X.4 trigger
WTB FX28
32-hole
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 29 x 2.10" WTB Prowler SL
- Drivetrain
- 8-speed
- Seatpost diameter
- 30.9 mm
- Bottom bracket / shell
- Sealed cartridge
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: RockShox Dart 3 29er · Single
Suspension
Evaluate the suspension →Archived: Fork: RockShox Dart 3 29er
Drivetrain
Check drivetrain wear →Archived: Group: SRAM X.4/mix · Shifters: SRAM X.4 trigger · Front derailleur: Shimano Acera · Rear derailleur: SRAM X.4 · Crankset: TruVativ ISOFlow 3.0, 22/32/42 teeth · Bottom bracket: Sealed cartridge · Cassette: SRAM PG-820 · Rear cogs: 8-speed, 11 - 32 teeth · Chain: KMC Z82
Brakes
Inspect the brakes →Archived: Brakes: Hayes HMX-4 w/ 6" rotor brakes, Hayes HML levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 29" wheels · Rims: WTB FX28, 32-hole · Hubs: Alloy disc · Front tire: 29 x 2.10" WTB Prowler SL
Controls and contact points
Archived: Headset: 1 1/8" Cane Creek · Handlebar: Avenir 100 · Stem: Avenir 100 31.8mm clamp · Seatpost: Avenir 100, 30.9mm diameter · Saddle: WTB Speed V Sport · Pedals: Wellgo alloy body/cage
