Velopedia Bicycle Archive

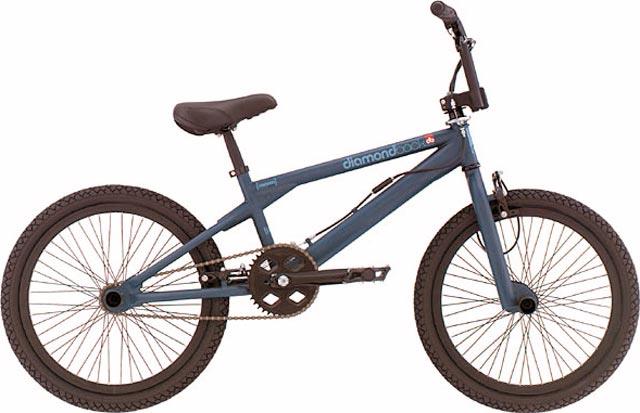

2004 Diamondback Venom
Freestyle/jumping bicycle from the Velopedia specification archive.
- Original MSRP
- $220.00
- Sizes
- Expert
- Colors
- Bomber Blue, Recon Grey
- Archive ID
- 31682
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly |
| Fork | Diamondback |
| Fork Material | Chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | N/A |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | 3-piece chromoly, 39 teeth |
| Bottom Bracket | Loose ball, splined |
| BB Shell Width | American |
| Rear Cogs | 1-speed, 14 teeth |
| Chain | KMC Z410, 1/2 x 1/8" |
| Pedals | DB Bigfoot, alloy platform |
Brakes
| Brakes | Tektro FX-11 U-brake rear brakes, aluminum rear levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless OS Threadless |
|---|---|
| Handlebar | DB Park Bars |
| Handlebar Extensions | N/A |
| Stem | DB D-day alloy |
| Saddle | DB Padded |
| Seatpost | Aluminum, 25.4mm diameter |
Wheels & Tires
| Hubs | Front: steel, 14mm, Rear: steel, 3/8 |
|---|---|
| Rims | Alex Y22 Tall Wall, 48-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 20 x 1.95" DB L-Train II |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
