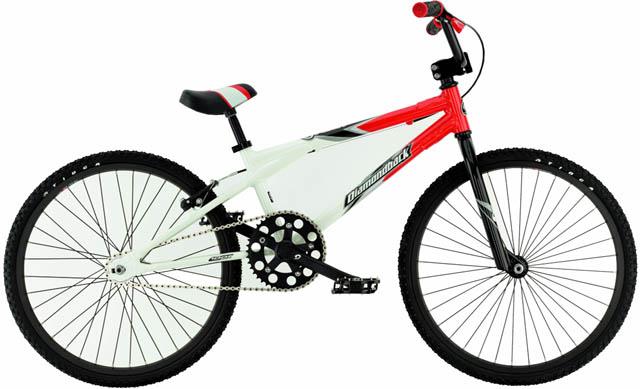

2002 Diamondback RM JR
BMX bicycle from the Velopedia specification archive.
- Original MSRP
- $300.00
- Sizes
- Race
- Colors
- Red/White
- Archive ID
- 91768
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | 7005 aluminum |
| Fork Material | Chromoly, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | N/A |
|---|---|
| Shifters | N/A |
| Front Derailleur | N/A |
| Rear Derailleur | N/A |
| Crankset | 1-piece 165mm, 42 teeth |
| Bottom Bracket | YST BB-621 |
| BB Shell Width | 68mm English |
| Rear Cogs | 1-speed, 16 teeth |
| Chain | KMC Z-610HX, 1/2 x 3/32" |
| Pedals | Aluminum |
Brakes
| Brakes | Tektro 927A rear brakes, Tektro 319A rear levers |
|---|
Cockpit & Contact Points
| Headset | 1" threadless aluminum |
|---|---|
| Handlebar | Chromoly BMX |
| Handlebar Extensions | N/A |
| Stem | Aluminum |
| Saddle | Diamondback Uni-style |
| Seatpost | Aluminum, 22.2mm (7/8 inch) diameter |
Wheels & Tires
| Hubs | Aluminum |
|---|---|
| Rims | Alex VP-15F, 36-hole |
| Spokes | Stainless steel, 14ga. (2.0mm) straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 20 x 1 3/8" Tioga Comp III |
| Wheel Size | 20" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
