Velopedia Bicycle Archive

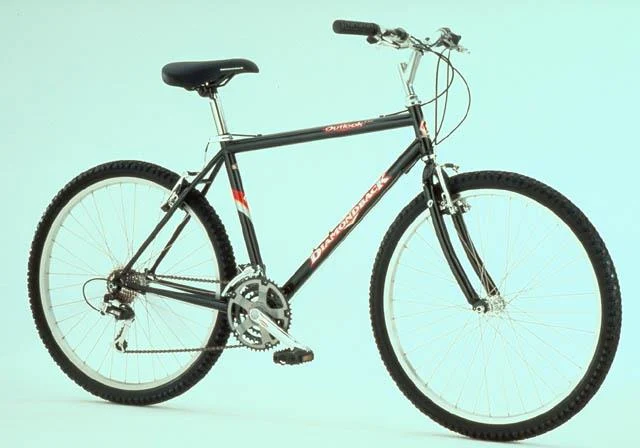

1999 Diamondback Outlook DX
Mountain bike, non-suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $229.99
- Sizes
- 12", 14", 16", 18", 20", 22", womens 16", womens 18"
- Colors
- Onyx (mens only), Polo Green, Rio Red (mens only), Sandstone (ladies only)
- Weight
- 31
- Archive ID
- 81517
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly seat tube/hi-tensile steel |
| Fork | Diamondback |
| Fork Material | Hi-tensile steel, oversize, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Shimano Altus |
|---|---|
| Shifters | Shimano Altus EZ Fire Plus |
| Front Derailleur | Shimano Tourney TY-32, bottom-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Altus |
| Crankset | Shimano Tourney, 28/38/48 teeth |
| Bottom Bracket | YST, 122.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed, 13 - 28 teeth |
| Chain | KMC Z-51, 1/2 x 3/32" |
| Pedals | Wellgo resin |
Brakes
| Brakes | Lee Chi ProMax linear-pull brakes, Lee Chi ProMax levers |
|---|
Cockpit & Contact Points
| Headset | 1" YST steel |
|---|---|
| Handlebar | Lee Chi |
| Handlebar Extensions | Not included |
| Stem | Lee Chi |
| Saddle | Diamondback MTB |
| Seatpost | Lee Chi, 29.2mm diameter |
Wheels & Tires
| Hubs | Joy Tech aluminum, Q/R |
|---|---|
| Rims | Kin Lin RT-6n, 36-hole |
| Spokes | Shuhn Lih stainless steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 1.95" CST C-796 |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
