Velopedia Bicycle Archive

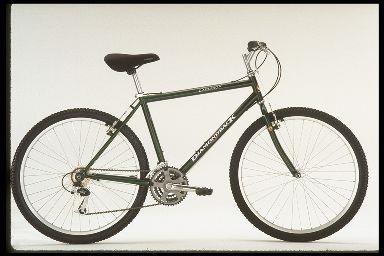

1998 Diamondback Outlook DX
Mountain bike, non-suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $250.00
- Sizes
- 12", 14", 16", 18", 20", 22", womens 16", womens 18"
- Colors
- Champagne, spy green
- Weight
- 31.3
- Archive ID
- 70042
Current market
Checking current listings…Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly seat tube/hi-tensile steel |
| Fork | Diamondback |
| Fork Material | Hi-tensile steel, unicrown crown |
| Rear Shock | N/A |
Drivetrain
| Component Group | Mountain Mix |
|---|---|
| Shifters | Shimano AceraX EZ Fire |
| Front Derailleur | Shimano Tourney TY-30, top-pull/clamp-on 31.8mm |
| Rear Derailleur | Shimano Altus |
| Crankset | Shimano Tourney TY-30, 28/38/48 teeth |
| Bottom Bracket | YST BB 613, 122.5mm spindle |
| BB Shell Width | 68mm English |
| Rear Cogs | 7-speed, 14 - 28 teeth |
| Chain | KMC UG-50, 1/2 x 3/32" |
Brakes
| Brakes | Lee Chi ProMax linear-pull brakes, Shimano AceraX EZ Fire for linear-pull levers |
|---|
Cockpit & Contact Points
| Headset | 1" YST steel |
|---|---|
| Handlebar | Diamondback steel |
| Handlebar Extensions | Not included |
| Stem | Diamondback steel |
| Saddle | Avenir Comfort Master |
| Seatpost | Aluminum, 29.2mm diameter |
Wheels & Tires
| Hubs | Aluminum, Q/R |
|---|---|
| Rims | Aluminum, 36-hole |
| Spokes | Orient steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 26 x 1.95" Cheng Shin C-1000 |
| Wheel Size | 26" wheels |
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
