Velopedia Bicycle Archive
1998 Diamondback Mini Viper
Original specifications: 16" wheels · legacy reference geometry.
Planning to sell? Draft your listing
No archive photo is available for this record.
At a glance
Archive #71792- Model year
- 1998
- Category
- Kids
- Original MSRP
- $115.00
- Sizes
- Boys
- Colors
- Chrome-plated, Red
- Geometry
- Legacy reference
- In this record
- 21 specifications · original MSRP · geometry
Model history 14 other years
Browse other years
Compare side by side
Identification clues
1998 archived details
- Published colors
- Chrome-plated, Red
- Frame
- Hi-tensile steel
- Original equipment
- N/A
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildHi-tensile steel · 16" wheels
Frameset
| Frame Construction | MIG-welded |
|---|---|
| Frame Material | Hi-tensile steel |
| Fork | Diamondback |
| Fork Material | Hi-tensile steel, unicrown crown |
Drivetrain
| Crankset | 1-piece 4 1/2", 36 teeth |
|---|---|
| Bottom Bracket | YST BB 621 |
| Rear Cogs | 1-speed |
| Chain | Taya 410, 1/2 x 1/8" |
| Pedals | Resin |
Brakes
| Brakes | Kung Ten coaster brake |
|---|
Cockpit & Contact Points
| Headset | 1" YST steel |
|---|---|
| Handlebar | Hi-tensile steel |
| Stem | Meng Jing MJ-MF310 |
| Saddle | Diamondback padded |
| Seatpost | Pillar, steel, 22.2mm (7/8 inch) diameter |
Wheels & Tires
| Hubs | Front: Kung Ten steel, nutted, Rear: Kung Ten coaster |
|---|---|
| Rims | Steel, 28-hole |
| Spokes | Shuhn Lih steel, 2.0mm straight gauge |
| Spoke Nipples | Brass nipples |
| Front Tire | 16 x 1.75" Cheng Shin Comp III type |
| Wheel Size | 16" wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 393.7 mm |
| Head-tube angle | 75° |
| Seat-tube angle | 72° |
| Chainstay / rear center | 315 mm |
| Wheelbase | 751.8 mm |
| Fork offset / rake | 30.5 mm |
Frame size not recorded.
Gearing
Original gearing is incomplete. Enter your setup to calculate ratios and cadence speeds.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
16 x 1.75" Cheng Shin Comp III type
Replacement search: 16x1.75 bicycle tire Before ordering: Check rim type and tire clearance.
Pillar
steel, 22.2mm (7/8 inch) diameter
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 16 x 1.75" Cheng Shin Comp III type
- Drivetrain
- 1-speed
- Seatpost diameter
- 22.2 mm
- Bottom bracket / shell
- YST BB 621
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: MIG-welded · Fork: Diamondback · Hi-tensile steel, unicrown crown
Drivetrain
Check drivetrain wear →Archived: Crankset: 1-piece 4 1/2", 36 teeth · Bottom bracket: YST BB 621 · Rear cogs: 1-speed · Chain: Taya 410, 1/2 x 1/8"
Brakes
Inspect the brakes →Archived: Brakes: Kung Ten coaster brake
Wheels and tires
Check wheels and tires →Archived: Wheel size: 16" wheels · Rims: Steel, 28-hole · Hubs: Front: Kung Ten steel, nutted, Rear: Kung Ten coaster · Front tire: 16 x 1.75" Cheng Shin Comp III type
Controls and contact points
Archived: Headset: 1" YST steel · Handlebar: Hi-tensile steel · Stem: Meng Jing MJ-MF310 · Seatpost: Pillar, steel, 22.2mm (7/8 inch) diameter · Saddle: Diamondback padded · Pedals: Resin
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.

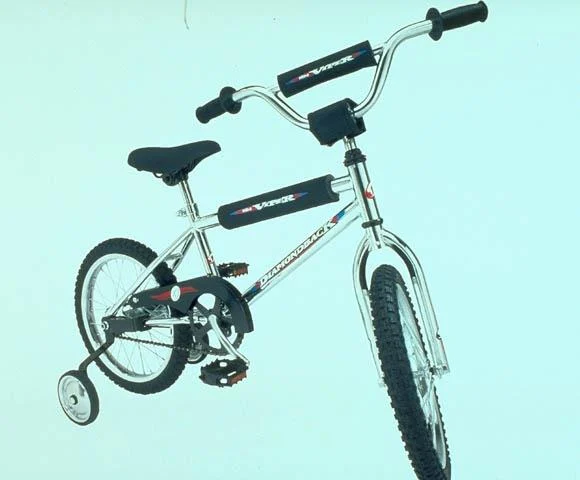

Same model · another year
