Velopedia Bicycle Archive

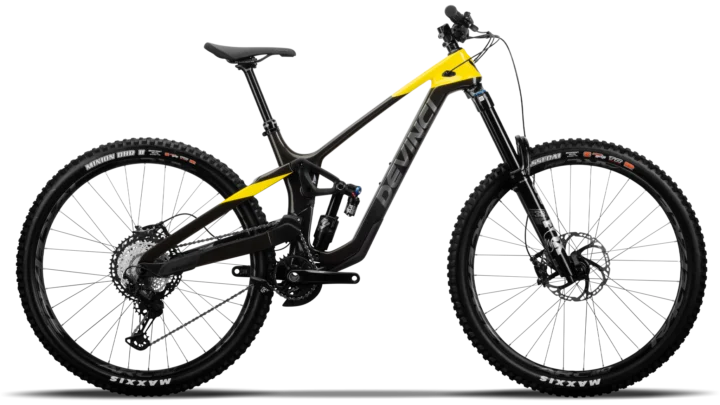

2026 Devinci Spartan Carbon XT 12S LTD

Original specifications: 29 wheels · geometry for 4 published sizes.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001879
Model year
2026
Category
Mountain
Original MSRP
$8,399.00
Sizes
S, M, L, XL
Colors
Black Yellow, Gloss, Black Dust
Geometry
4 manufacturer sizes
In this record
21 specifications · 2 archived images · original MSRP · geometry
Original buildCarbon Fiber · 29

Manufacturer catalog

Published sizes and colors

4 sizes · 3 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Black YellowGlossBlack Dust

Frameset

Frame ConstructionCarbon DMC-G 160mm
Frame MaterialCarbon Fiber
ForkFox 38 Performance Elite Grip2 180 | 44 Offset
Rear ShockFox Float X2 Performance Elite Trunnion | 0.3Vspacer|205x65

Drivetrain

Rear DerailleurShimano XT M8100 | 12s
CranksetShimano XT M8130-1 | 32T | SuperBoost 157
Bottom BracketShimano MT801 | BSA | 68/73mm
CassetteShimano XT M8100 | 12s | 10-51T | Microspline
ChainShimano M7100 | 12s

Brakes

BrakesShimano XT M8120/M8100 | 4 Pistons

Cockpit & Contact Points

HeadsetFSA Orbit | 1.5 | Zero Stack
HandlebarRaceFace Next R35 | B:35mm | R:20mm | W:800mm
StemRaceFace Turbine | B:35mm | L:40mm | 0°
SaddleSDG Belair 3.0
SeatpostSDG Tellis 34.9mm

Wheels & Tires

HubsFront: RaceFace Vault | TA 15x110mm | 6bolts; Rear: RaceFace Vault | 6bolts | TA 12x157mm | Microspline
RimsRaceFace ARC30 29 | 30mm inner | TR
SpokesSapim Stainless 14G w/Nylok
Front TireMaxxis Assegai | 29x2.5WT | 3C | DD | TR | MaxxGrip
Rear TireMaxxis Minion DHRII | 29x2.4wt | 3C | DD | TR | MaxxGrip
Wheel Size29

Geometry

4 sizes · 11 measurements

Frame measurements by size.

All geometry measurements8 size / setup combinations · 11 measurements
MeasurementS · LowM · LowL · LowXL · LowS · HighM · HighL · HighXL · High
Seat tube390 mm420 mm460 mm495 mm390 mm420 mm460 mm495 mm
Top tube587 mm610 mm639 mm668 mm585 mm608 mm637 mm665 mm
Head tube95 mm105 mm115 mm125 mm95 mm105 mm115 mm125 mm
Head-tube angle64.5°64.5°64.5°64.5°65°65°65°65°
Seat-tube angle77.1°77°76.5°76°77.7°77.6°77°76.5°
Chainstay / rear center425 mm425 mm430 mm435 mm421 mm421 mm426 mm431 mm
Wheelbase1207 mm1232 mm1261 mm1290 mm1204 mm1228 mm1258 mm1287 mm
Bottom-bracket height344 mm344 mm344 mm344 mm351 mm351 mm351 mm351 mm
Reach445 mm465 mm485 mm505 mm450 mm470 mm490 mm510 mm
Stack621 mm630 mm639 mm648 mm617 mm626 mm635 mm644 mm
Standover height740 mm740 mm740 mm740 mm746 mm746 mm746 mm746 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes32T · 10–51T · 12-speed
Lowest0.63:1 Highest3.20:1 Total range510%
Estimated speed At 90 RPM Lowest gear4.9 mph Highest gear25.1 mph

Rear tire: 29×2.4.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
Shimano M7100 | 12s
Saddle · Original
SDG BELAIR 3.0
Seatpost · Original
SDG Tellis 34.9mm

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis Assegai | 29x2.5WT | 3C | DD | TR | MaxxGrip
Rear tire
Maxxis Minion DHRII | 29x2.4wt | 3C | DD | TR | MaxxGrip
Drivetrain
12-speed
Seatpost diameter
34.9 mm
Bottom bracket / shell
Shimano MT801 | BSA | 68/73mm
Equipment inspection checks 13 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 13 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Carbon DMC-G 160mm · Fork: Fox 38 Performance Elite Grip2 180 | 44 Offset

Archived: Fork: Fox 38 Performance Elite Grip2 180 | 44 Offset · Rear shock: Fox Float X2 Performance Elite Trunnion | 0.3Vspacer|205x65

Archived: Rear derailleur: Shimano XT M8100 | 12s · Crankset: Shimano XT M8130-1 | 32T | SuperBoost 157 · Bottom bracket: Shimano MT801 | BSA | 68/73mm · Cassette: Shimano XT M8100 | 12s | 10-51T | Microspline · Chain: Shimano M7100 | 12s

Archived: Brakes: Shimano XT M8120/M8100 | 4 Pistons

Archived: Wheel size: 29 · Rims: RaceFace ARC30 29 | 30mm inner | TR · Hubs: Front: RaceFace Vault | TA 15x110mm | 6bolts; Rear: RaceFace Vault | 6bolts | TA 12x157mm | Microspline · Front tire: Maxxis Assegai | 29x2.5WT | 3C | DD | TR | MaxxGrip · Rear tire: Maxxis Minion DHRII | 29x2.4wt | 3C | DD | TR | MaxxGrip

Controls and contact points

Archived: Headset: FSA Orbit | 1.5 | Zero Stack · Handlebar: RaceFace Next R35 | B:35mm | R:20mm | W:800mm · Stem: RaceFace Turbine | B:35mm | L:40mm | 0° · Seatpost: SDG Tellis 34.9mm · Saddle: SDG BELAIR 3.0
