2027 Commencal Supreme DH V5.2 Team Replica

Archived: 2027 Commencal Supreme DH V5.2 Team Replica · Mountain · Published sizes: XS, S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: SUPREME DH V5.2, 29/27, 220 mm travel; 29/27'', Alloy 6066, triple butted tubes, T4, T6. · Fork: ROCKSHOX BOXXER Ultimate; 29", Charger 3.2 RC damper, Linear XL air spring, HSC, LSC, rebound, 48 mm offset, 0 Token

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: ROCKSHOX BOXXER Ultimate; 29", Charger 3.2 RC damper, Linear XL air spring, HSC, LSC, rebound, 48 mm offset, 0 Token · Rear shock: ROCKSHOX VIVID Air Ultimate DH; 250 x 75 mm, RC2 damper, HSC, LSC, rebound, Adjustable Bottom Out

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

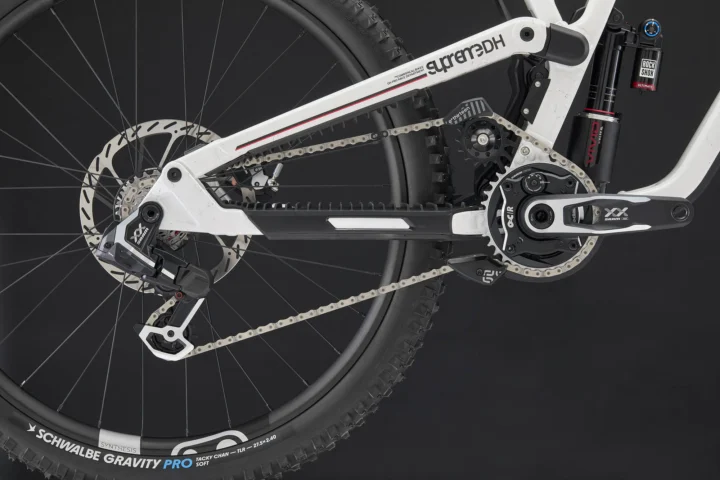

Archived: Shifters: SRAM AXS Pod controller; 7s · Rear derailleur: SRAM XX DH; 7s, AXS · Crankset: SRAM XX DH, 160 mm crank arms, DUB; Chainring : SRAM XX DH, 34t with Ochain · Bottom bracket: SRAM DUB; BB107, pressfit · Cassette: SRAM XS 797 DH; 7s, 10-24t · Chain: SRAM GX; 11s, Black

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: SRAM Maven Ultimate, 4 pistons, sintered pads; Rotors : SRAM HS2 220 mm, 6-bolts

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Rims: CRANKBROTHERS DH ALLOY 2.0; Rear : 27.5'', 32h, 30 mm inner width - Front : 29'', 32h, 30 mm inner width · Hubs: CRANKBROTHERS Ratchet; Rear : 32h, sealed bearings, 12 x 157 mm, Sram XD - Front : 28h, sealed bearings, 20 x 110 mm · Front tire: Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary; Rear : 27.5''x2.5'', Gravity Pro, Soft, Tubeless Ready - Front : 29''x2.5'', Gravity Pro, Ultra Soft, Tubeless Ready · Rear tire: Rear : SCHWALBE Tacky Chan - Front : SCHWALBE Magic Mary; Rear : 27.5''x2.5'',…

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance. This record indicates different front and rear wheel diameters, so verify each tire at its correct end.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

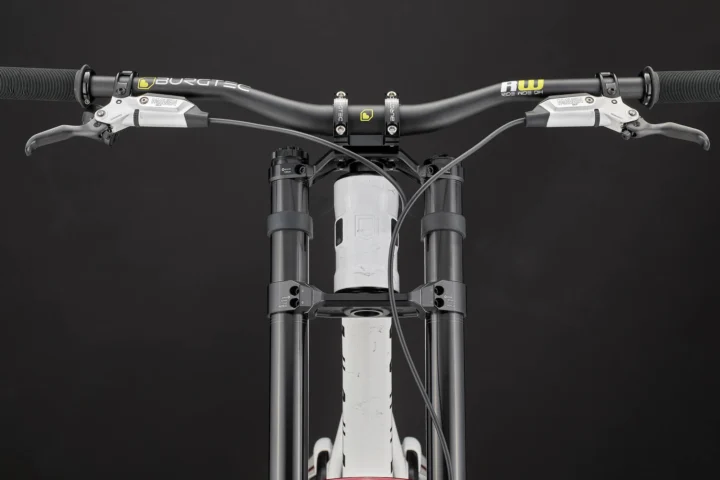

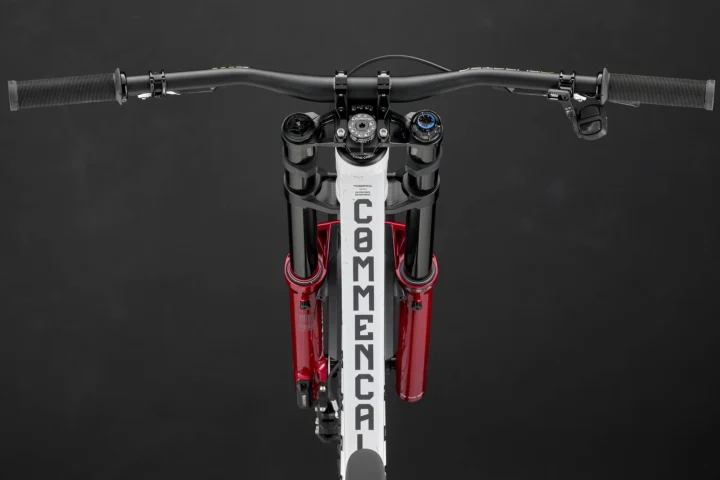

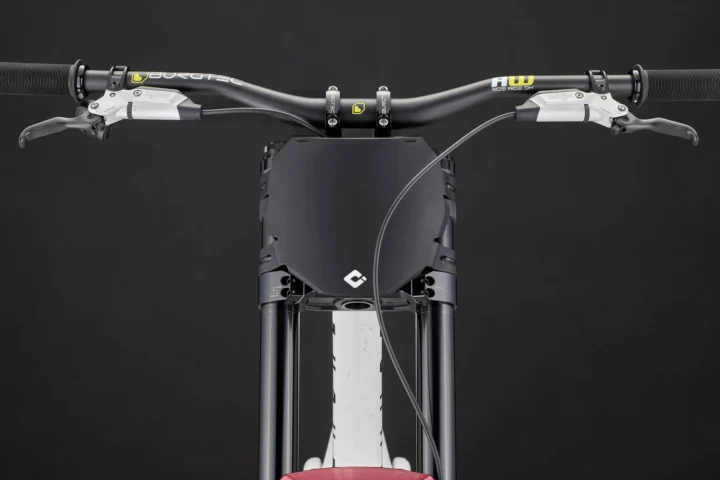

Archived: Headset: CANECREEK Hellbender 70; ZS56/ZS56, alloy cups, sealed bearings · Handlebar: BURGTEC Ride Wide; 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 · Stem: BURGTEC Direct Mount; 45 mm extension, direct mount, 31.8 mm · Seatpost: BURGTEC Xpress; 31.6 mm, 300 mm length · Saddle: FIZIK Gravita Alpaca X5; 130 mm width, S-Alloy rails, Team edition · Pedals: No

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
