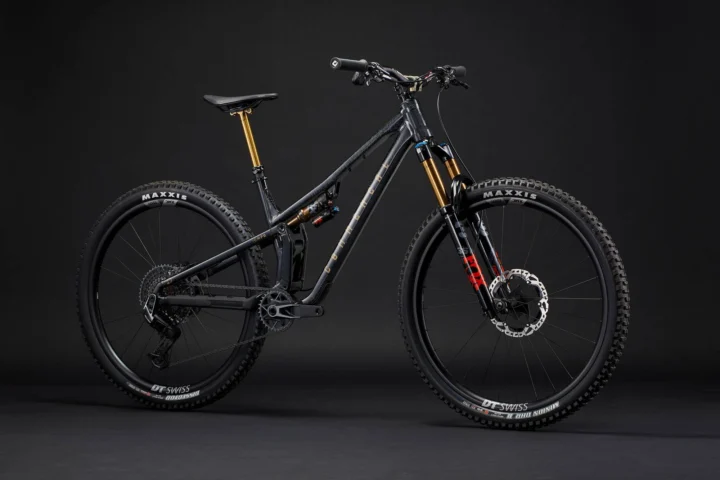

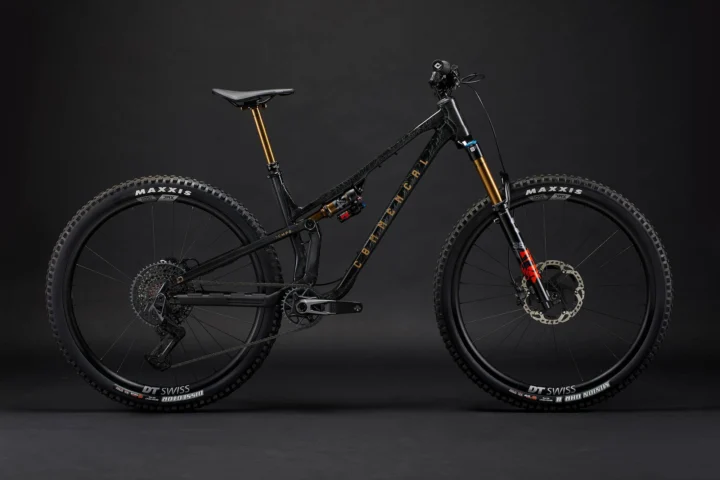

2026 Commencal T.E.M.P.O. T-Type

Original manufacturer specifications including geometry for 4 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

What Velopedia knows

Model year
2026
Category
Mountain
Original MSRP
$6,500.00
Sizes
S, M, L, XL
Colors
Crackled BlackShiny Finish
Geometry
4 manufacturer sizes · Geometry context
Record coverage
22 preserved details · 8 archived images · original MSRP · preserved geometry
Archive ID
900001425
Campaign

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

SMLXL

Published colors

Crackled BlackShiny Finish

Frameset

Frame ConstructionT.E.M.P.O., 125 mm travel29'', Alloy 6069, triple butted tubes, T4, T6.
Frame MaterialAluminum
ForkFOX 36 Factory, 150 mm travel29", Float, Grip 2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 51 mm offset, 2 spacers
Rear ShockFOX Float X Factory210 x 50, LSC,LSR, 2-postion adjustment, 0.2 spacer

Drivetrain

ShiftersSRAM AXS Pod Controller12s
Rear DerailleurSRAM X0 Eagle Transmission12s, AXS
CranksetSRAM X0 Eagle Transmission, 170 mm crank arms, DUBChainring: SRAM X0 Eagle Transmission, 32t, Narrow-Wide
Bottom BracketSRAM DUBPressfit
CassetteSRAM X0 Eagle TransmissionCS 1295, 12s, 10-52t
ChainSRAM X0 Eagle Transmission12s, Flattop chain
PedalsNo

Brakes

BrakesSHIMANO XT, 2 pistons, I-Spec EV, resin padsRotor: SHIMANO RT-MT905 203 / 180 mm, 6-bolt

Cockpit & Contact Points

HeadsetACROS ZS56 / ZS56Alloy cups, sealed bearings, Integrated cable routing
HandlebarRENTHAL Fatbar Lite on S/M - RENTHAL Fatbar on L/XL31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S/M - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on L/XL
StemRENTHAL Apex40 mm extension, 31,8 mm
SaddleFIZIK Terra Ridon X5145 mm width, S-alloy rails
SeatpostFOX Transfer Factory31.6 mm, 150 mm on S, 175 mm on M/L, 200 mm on XL

Wheels & Tires

HubsRear: DT SWISS 240 - Front: DT SWISS 240Rear: 28h, sealed bearings, 12 x 148 mm, Ratchet EXP 36, Sram XD freehub body - Front: 28h, sealed bearings, 15 x 110 mm
RimsDT SWISS XMC 1501; 29'', 28h, 30 mm inner width
Front TireRear: MAXXIS Dissector - Front: MAXXIS DHR IIRear: 29" x 2.4" WT, 3C MaxxTerra, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready
Rear TireRear: MAXXIS Dissector - Front: MAXXIS DHR IIRear: 29" x 2.4" WT, 3C MaxxTerra, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready

Size-specific frame data

Geometry

4 sizes · 11 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

MeasurementSMLXL
Seat tube380 mm420 mm440 mm460 mm
Effective top tube579 mm600 mm621.5 mm642.9 mm
Head tube115 mm120 mm125 mm130 mm
Head-tube angle65.5°65.5°65.5°65.5°
Seat-tube angle76.6°76.6°76.6°76.6°
Chainstay / rear center435 mm435 mm440 mm440 mm
Wheelbase1190 mm1211.5 mm1238.5 mm1261 mm
Bottom-bracket drop35 mm35 mm35 mm35 mm
Reach430 mm450 mm470 mm490 mm
Stack624 mm628.5 mm633 mm637.5 mm
Fork length / axle-to-crown551 mm551 mm551 mm551 mm

Geometry source: Commencal first-party labeled geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry tools

Analyze a published size

Choose a size

S geometry

Archive context: Its stack of 624 mm sits toward the taller end. Its wheelbase of 1190 mm sits somewhat longer than typical. The seat angle of 76.6° sits somewhat steeper than typical.

Compared with 180 distinct mountain geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry

Parts & serviceability

Find replacement parts

3 top part searches
ChainMatching configuration
SRAM X0 Eagle Transmission12s, Flattop chain Interpreted as SRAM X0 · 12-speed Named component · published drivetrain speed — verify exact version
CassetteMatching configuration
SRAM X0 Eagle TransmissionCS 1295, 12s, 10-52t Interpreted as SRAM X0 · 12-speed Component family — verify exact version
Front tireExact archived part
MAXXIS DHR II, 29x2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready Named tire and published size
More qualified parts (6)
Rear tireMatching fit standard
MAXXIS Dissector, 29x2.4" WT, 3C MaxxTerra, EXO, Tubeless Ready Named tire and published size
SaddleQualified part search
FIZIK Terra Ridon X5145 mm width, S-alloy rails Named archived component — verify exact version
CranksetExact archived part
SRAM X0 Eagle Transmission, 170 mm crank arms, DUBChainring: SRAM X0 Eagle Transmission, 32t, Narrow-Wide Component family — verify exact version
Rear derailleurMatching configuration
SRAM X0 Eagle Transmission12s, AXS Interpreted as SRAM X0 · 12-speed · electronic Component family — verify exact version
StemQualified part search
RENTHAL Apex40 mm extension, 31,8 mm Named archived component — verify dimensions
SeatpostMatching fit standard
31.6 mm seatpost Published diameter — verify length and setback

Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.

Campaign

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
  • BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
  • SuspensionAsk when the fork and shock were last serviced. Check the stanchions for damage, look for oil at the seals, cycle both units through their travel and test the suspension pivots for play.Evaluate the suspension →
  • DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
Bike-specific inspection checklist 23 checks based on 6 archived component groups Open checklistClose checklist
0 of 23 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2026 Commencal T.E.M.P.O. T-Type · Mountain · Published sizes: S, M, L, XL

Archived: Frame: T.E.M.P.O., 125 mm travel29'', Alloy 6069, triple butted tubes, T4, T6. · Fork: FOX 36 Factory, 150 mm travel29", Float, Grip 2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 51 mm offset, 2 spacers

Archived: Fork: FOX 36 Factory, 150 mm travel29", Float, Grip 2 damper, HSR, LSR, HSC, LSC, Boost (15 x 110 mm), 51 mm offset, 2 spacers · Rear shock: FOX Float X Factory210 x 50, LSC,LSR, 2-postion adjustment, 0.2 spacer

Archived: Shifters: SRAM AXS Pod Controller12s · Rear derailleur: SRAM X0 Eagle Transmission12s, AXS · Crankset: SRAM X0 Eagle Transmission, 170 mm crank arms, DUBChainring: SRAM X0 Eagle Transmission, 32t, Narrow-Wide · Bottom bracket: SRAM DUBPressfit · Cassette: SRAM X0 Eagle TransmissionCS 1295, 12s, 10-52t · Chain: SRAM X0 Eagle Transmission12s, Flattop chain

Archived: Brakes: SHIMANO XT, 2 pistons, I-Spec EV, resin padsRotor: SHIMANO RT-MT905 203 / 180 mm, 6-bolt

Archived: Rims: DT SWISS XMC 1501; 29'', 28h, 30 mm inner width · Hubs: Rear: DT SWISS 240 - Front: DT SWISS 240Rear: 28h, sealed bearings, 12 x 148 mm, Ratchet EXP 36, Sram XD freehub body - Front: 28h, sealed bearings, 15 x 110 mm · Front tire: Rear: MAXXIS Dissector - Front: MAXXIS DHR IIRear: 29" x 2.4" WT, 3C MaxxTerra, EXO, Tubeless Ready - Front: 29" x 2.4" WT, 3C MaxxGrip, EXO, Tubeless Ready · Rear tire: Rear: MAXXIS Dissector - Front: MAXXIS DHR IIRear: 29" x 2.4" WT, 3C MaxxTerra, EXO, Tubeless Ready - Front:…

Controls and contact points

Archived: Headset: ACROS ZS56 / ZS56Alloy cups, sealed bearings, Integrated cable routing · Handlebar: RENTHAL Fatbar Lite on S/M - RENTHAL Fatbar on L/XL31.8 mm, 760 mm width, 30 mm rise, Alloy 6061 on S/M - 31.8 mm, 800 mm width, 30 mm rise, Alloy 6061 on L/XL · Stem: RENTHAL Apex40 mm extension, 31,8 mm · Seatpost: FOX Transfer Factory31.6 mm, 150 mm on S, 175 mm on M/L, 200 mm on XL · Saddle: FIZIK Terra Ridon X5145 mm width, S-alloy rails · Pedals: No

Before and during the test ride

Follow the full used-bike inspection order →

Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
