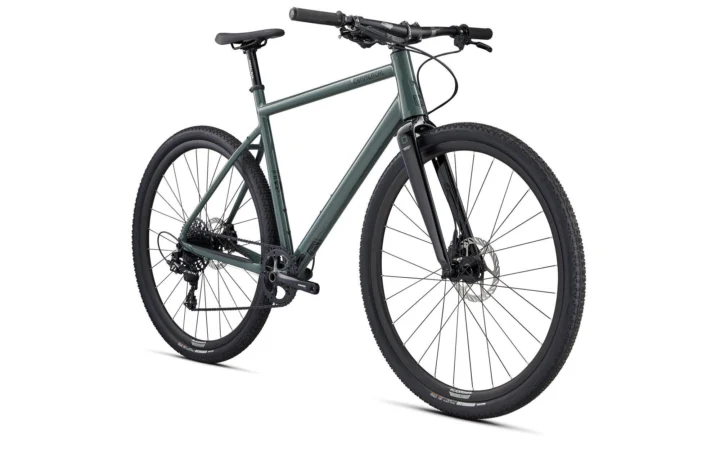

2026 Commencal FCB Origin

Archived: Frame: FCB700C, Alloy 6061, triple butted tubes, T4, T6 · Fork: FCBInternal brake hose routing, alloy 6061-T6, tapered · Aluminum

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

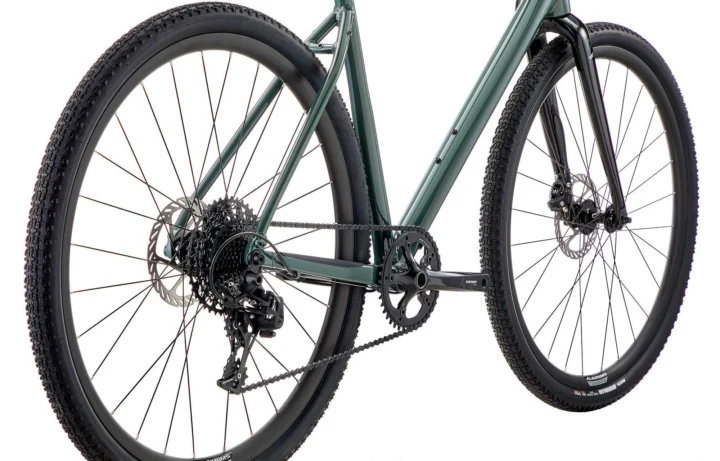

Archived: Shifters: SRAM Apex 111s · Rear derailleur: SRAM Apex 111s · Crankset: SRAM S350, 170 mm crank arms on S/M, 172,5 mm on L/XLChainring: SRAM S350 40t · Bottom bracket: SRAM GXPBSA · Cassette: SRAM PG - 113011 - 42t · Chain: KMC X1111s, Black Tech

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: SRAM Level TLM, Hydraulic disc brake, 2 pistons, flat mountRotors: SRAM G2 CleanSweep 160 mm, 6-bolt

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.

Archived: Rims: ALEXRIMS GX26P700C, 28h, 23 mm inner width, tubeless ready · Hubs: Rear: FORMULA DHT-142 S - Front: FORMULA RX25Rear: 28h, sealed bearings, 12 x 142 mm, SHIMANO Hyperglide - Front: 28h, sealed bearings, 5 x 100 mm (for QR axle) · Front tire: MAXXIS Rambler; 700 x 45c, EXO, Tubeless Ready · Rear tire: MAXXIS Rambler; 700 x 45c, EXO, Tubeless Ready

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

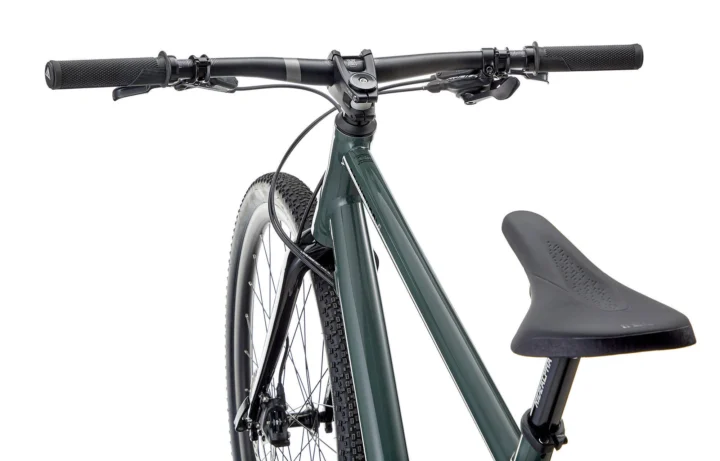

Archived: Headset: ACROS ZS44 / ZS56Alloy cups, sealed bearings · Handlebar: RIDE ALPHA R1531,8 mm, 700 mm width, 15 mm rise, Alloy 6061 · Stem: RIDE ALPHA Freeride 50 mm50 mm extension, 31,8 mm · Seatpost: RIDE ALPHA27,2 mm, 350 mm length · Saddle: FIZIK Terra Alpaca X5145 mm width, S-alloy rails · Pedals: No

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
