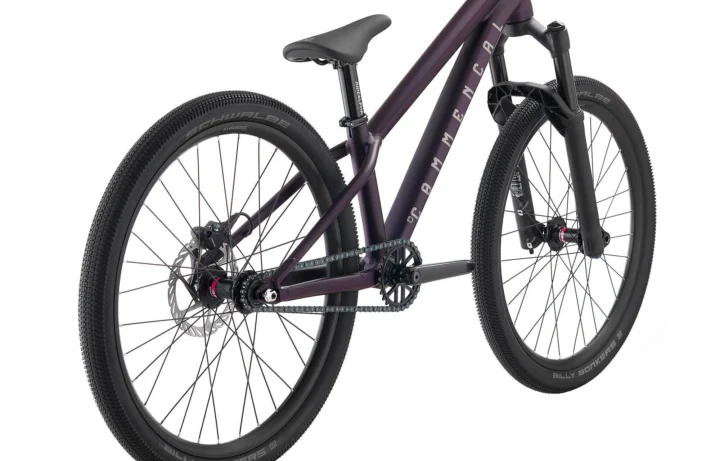

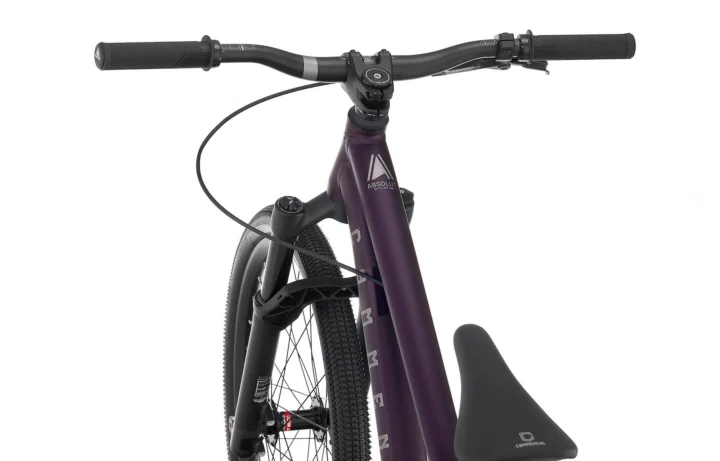

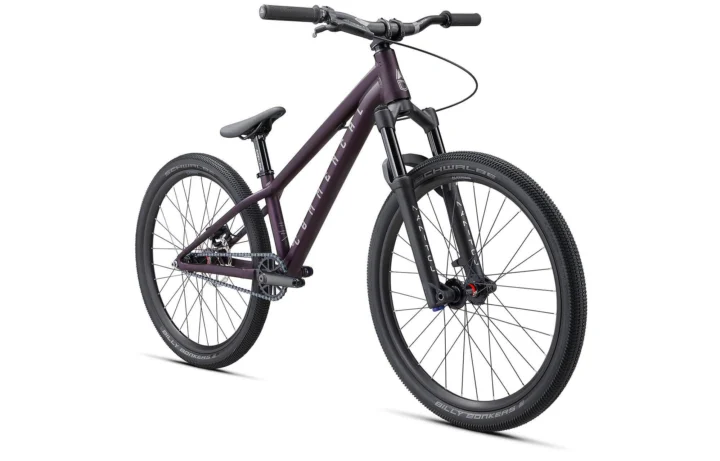

2025 Commencal Absolut 24

Original manufacturer specifications including geometry for 4 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

What Velopedia knows

Model year
2025
Category
Mountain
Original MSRP
$1,400.00
Sizes
24, S, M, L
Colors
Metallic PurpleMatte Finish
Geometry
4 manufacturer sizes · Geometry context
Record coverage
19 preserved details · 4 archived images · original MSRP · preserved geometry
Archive ID
900001429
Campaign

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

24SML

Published colors

Metallic PurpleMatte Finish

Frameset

Frame ConstructionABSOLUT 24"24'', Alloy 6061, triple butted (T4, T6), with adjustable horizontal dropouts
Frame MaterialAluminum
ForkMANITOU Circus Expert 24'', 100mm travel24'', ABS+ damper (compression & rebound), ACT air spring, tapered

Drivetrain

CranksetBMX 3-pcs, 140mm, Crmo, 19mm spindleChainring: 28t, Alloy 6061
Bottom BracketThreaded Euro BBAlloy cups, 4 sealed bearings
CassetteNOVATEC 12tCrmo sprocket
ChainKMC Z1 - BUBU1/2'' X 1/8''
PedalsNo

Brakes

BrakesSRAM Level, 2-pistons, hydraulic disc brake, steel backed organic padsRotor: SRAM G2 CleanSweep 160mm, 6-bolt

Cockpit & Contact Points

HeadsetACROS ZS44 / ZS56Alloy cups, sealed bearings
HandlebarRIDE ALPHA R2731.8 mm, 650 mm width, 27 mm rise, Alloy 6061
StemRIDE ALPHA Freeride 40 mm40 mm extension, 31,8 mm
SaddleCOMMENCALSoft padding, steel rails
SeatpostRIDE ALPHA31.6 mm, 250 mm length

Wheels & Tires

HubsRear: NOVATEC D256SBT - Front: NOVATEC D041SB-B15Rear: 32h, 4 sealed bearings, Crmo axle (M10 x 180 x 135 mm), black - Front: 32h, 2 sealed bearings, 15 x 110 mm, black
RimsALEXRIMS MD2524'', 32h, 25 mm inner width
Front TireRear: SCHWALBE BILLY BONKERS - Front: SCHWALBE BILLY BONKERSRear: 24" x 2.0", Active Line - Front: 24" x 2.0", Active Line
Rear TireRear: SCHWALBE BILLY BONKERS - Front: SCHWALBE BILLY BONKERSRear: 24" x 2.0", Active Line - Front: 24" x 2.0", Active Line

Size-specific frame data

Geometry

4 sizes · 11 measurements

Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.

Measurement24SML
Seat tube270 mm310 mm310 mm310 mm
Effective top tube516 mm577 mm597 mm622 mm
Head tube115 mm120 mm120 mm120 mm
Head-tube angle69°69°69°69°
Seat-tube angle72.5°72°72°72°
Chainstay / rear center365 mm390 mm390 mm390 mm
Wheelbase972 mm1037 mm1057 mm1082 mm
Bottom-bracket drop8 mm25 mm25 mm25 mm
Reach360 mm395 mm415 mm440 mm
Stack527 mm566 mm566 mm566 mm
Fork length / axle-to-crown460 mm470 mm470 mm470 mm

Geometry source: Commencal first-party labeled geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.

Geometry tools

Analyze a published size

Choose a size

24 geometry

Archive context: Its stack of 527 mm sits toward the lower end. Its wheelbase of 972 mm sits toward the shorter end. The chainstay of 365 mm sits toward the shorter rear-center end.

Compared with 166 distinct mountain geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 24 geometry

Parts & serviceability

Find replacement parts

3 top part searches
ChainExact archived part
KMC Z1 - BUBU1/2'' X 1/8'' Exact archived model
Front tireMatching fit standard
SCHWALBE BILLY BONKERS, 24x2.0", Active Line Named tire and published size
Brake padsVerified replacement
SRAM Level 2-piston brake pads — 00.5318.024.001 Manufacturer-verified pad family — compare pad shape
More qualified parts (1)
SeatpostMatching fit standard
31.6 mm seatpost Published diameter — verify length and setback

Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.

Campaign

Used-bike inspection

If you’re buying this bike used

Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.

Follow the full used-bike inspection order →
  • FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
  • BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
  • SuspensionAsk when the fork was last serviced. Check the stanchions for damage, look for oil at the seals and make sure the fork moves smoothly without bushing play.Evaluate the suspension →
  • DrivetrainShift through the full range under light load, measure chain wear and inspect the cassette or freewheel teeth. Skipping or hesitation can indicate wear, poor adjustment or mismatched parts.Check drivetrain wear →
  • Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
0 of 20 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 2025 Commencal Absolut 24 · Mountain · Published sizes: 24, S, M, L

Archived: Frame: ABSOLUT 24"24'', Alloy 6061, triple butted (T4, T6), with adjustable horizontal dropouts · Fork: MANITOU Circus Expert 24'', 100mm travel24'', ABS+ damper (compression & rebound), ACT air spring, tapered

Archived: Fork: MANITOU Circus Expert 24'', 100mm travel24'', ABS+ damper (compression & rebound), ACT air spring, tapered

Archived: Crankset: BMX 3-pcs, 140mm, Crmo, 19mm spindleChainring: 28t, Alloy 6061 · Bottom bracket: Threaded Euro BBAlloy cups, 4 sealed bearings · Cassette: NOVATEC 12tCrmo sprocket · Chain: KMC Z1 - BUBU1/2'' x 1/8''

Archived: Brakes: SRAM Level, 2-pistons, hydraulic disc brake, steel backed organic padsRotor: SRAM G2 CleanSweep 160mm, 6-bolt

Archived: Rims: ALEXRIMS MD2524'', 32h, 25 mm inner width · Hubs: Rear: NOVATEC D256SBT - Front: NOVATEC D041SB-B15Rear: 32h, 4 sealed bearings, Crmo axle (M10 x 180 x 135 mm), black - Front: 32h, 2 sealed bearings, 15 x 110 mm, black · Front tire: Rear: SCHWALBE BILLY BONKERS - Front: SCHWALBE BILLY BONKERSRear: 24" x 2.0", Active Line - Front: 24" x 2.0", Active Line · Rear tire: Rear: SCHWALBE BILLY BONKERS - Front: SCHWALBE BILLY BONKERSRear: 24" x 2.0", Active Line - Front: 24" x 2.0", Active Line

Controls and contact points

Archived: Headset: ACROS ZS44 / ZS56Alloy cups, sealed bearings · Handlebar: RIDE ALPHA R2731.8 mm, 650 mm width, 27 mm rise, Alloy 6061 · Stem: RIDE ALPHA Freeride 40 mm40 mm extension, 31,8 mm · Seatpost: RIDE ALPHA31.6 mm, 250 mm length · Saddle: COMMENCALSoft padding, steel rails · Pedals: No

Before and during the test ride

Follow the full used-bike inspection order →

Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
