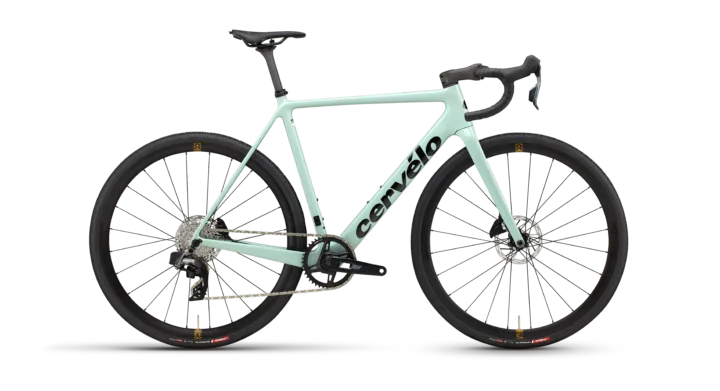

2026 Cervelo R5-CX Rival
Original manufacturer specifications including 8.16 kgs published weight, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Gravel & Cyclocross
- Original MSRP
- $6,650.00
- Sizes
- 51cm, 54cm, 56cm, 58cm
- Colors
- Racing Red, November Sky
- Weight
- 8.16 kgs
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 19 preserved details · 2 archived images · original MSRP · preserved geometry
- Archive ID
- 900000195
Frameset
| Frame Construction | Cervélo R5-CX frame |
|---|---|
| Fork | Cervélo All-Carbon, Tapered R5CX Fork |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | SRAM Rival AXS E1 |
|---|---|
| Rear Derailleur | SRAM Rival AXS D1 |
| Crankset | SRAM Rival 1 AXS E1, 42T, DUB Wide, with power meter |
| Bottom Bracket | SRAM DUB Wide, T47 BBright |
| Cassette | SRAM Rival D1, 10-36T, 12-Speed |
| Chain | SRAM Rival E1 |
Brakes
| Brakes | Brake controls: SRAM Rival AXS E1; Rotors: SRAM Paceline Centerlock |
|---|
Cockpit & Contact Points
| Headset | FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° |
|---|---|
| Handlebar | Cervélo HB13 Carbon, 31.8mm clamp |
| Stem | Cervélo ST31 Carbon |
| Saddle | Prologo Nago R4 PAS Steel |
| Seatpost | Cervélo SP24 Carbon |
Wheels & Tires
| Wheels | Front: Reserve 30 GR AL, Reserve 4LD, 12x100mm, 24H, centerlock, tubeless compatible; Rear: Reserve 30 GR AL, Reserve 4LD, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible |
|---|---|
| Front Tire | Vittoria Terreno T80 CX TLR G2.0 700x33c |
| Rear Tire | Vittoria Terreno T80 CX TLR G2.0 700x33c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 51 | 54 | 56 | 58 |
|---|---|---|---|---|
| Top tube | 517 mm | 536 mm | 556 mm | 574 mm |
| Head tube | 97 mm | 118 mm | 139 mm | 157 mm |
| Head-tube angle | 71.5° | 71.5° | 71.5° | 72° |
| Seat-tube angle | 74.5° | 74° | 73.5° | 73° |
| Chainstay / rear center | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 998 mm | 1014 mm | 1029 mm | 1037 mm |
| Bottom-bracket drop | 63 mm | 63 mm | 63 mm | 63 mm |
| Reach | 371 mm | 380 mm | 389 mm | 398 mm |
| Stack | 520 mm | 540 mm | 560 mm | 580 mm |
| Standover height | 775 mm | 789 mm | 803 mm | 820 mm |
| Fork offset / rake | 51 mm | 51 mm | 51 mm | 48 mm |
| Front center | 581 mm | 597 mm | 612 mm | 620 mm |
| Trail | 58.7 mm | 58.7 mm | 58.7 mm | 58.7 mm |
| Wheel size | 700c | 700c | 700c | 700c |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
51 geometry
Archive context: Its trail of 58.7 mm sits toward the lower-trail end. Its stack of 520 mm sits toward the lower end. The head angle of 71.5° sits toward the steeper end.
Compared with 80 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 51 geometry 54 geometry
Archive context: Its stack of 540 mm sits toward the lower end. Its trail of 58.7 mm sits toward the lower-trail end. Its bottom-bracket drop of 63 mm sits toward the shallower-drop end.
Compared with 92 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: Its stack of 560 mm sits toward the lower end. Its bottom-bracket drop of 63 mm sits toward the shallower-drop end. Its trail of 58.7 mm sits toward the lower-trail end.
Compared with 65 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: Its stack of 580 mm sits toward the lower end. Its wheelbase of 1037 mm sits toward the shorter end. Its bottom-bracket drop of 63 mm sits toward the shallower-drop end.
Compared with 71 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry Parts & serviceability
Find replacement parts
SRAM Rival E1
Interpreted as SRAM Rival · 12-speed Named component · published drivetrain speed — verify exact version
SRAM Rival D1, 10-36T, 12-Speed
Interpreted as SRAM Rival · 12-speed Component family — verify exact version
Vittoria Terreno T80 CX TLR G2.0 700x33c
Named tire and published size
More qualified parts (5)
SRAM DUB Wide, T47 BBright
Named archived component — verify dimensions
Prologo Nago R4 PAS Steel
Named archived component — verify exact version
SRAM Rival 1 AXS E1, 42T, DUB Wide, with power meter
Component family — verify exact version
SRAM Rival AXS D1
Interpreted as SRAM Rival · 12-speed · electronic Component family — verify exact version
SRAM Rival AXS E1
Interpreted as SRAM Rival · 12-speed · electronic Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the complete frame and fork in bright light for cracks, dents, distortion, corrosion, impact marks, suspicious paint differences or signs of repair. Check the head tube, bottom-bracket area, dropouts, joints and clamped surfaces especially closely.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads. If it is set up tubeless, confirm both tires hold pressure and ask when the sealant was last refreshed.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Cervelo R5-CX Rival · Cyclocross/Gravel · Published sizes: 51cm, 54cm, 56cm, 58cm
Frame and fork
Inspect the frame and fork →Archived: Frame: Cervélo R5-CX frame · Fork: Cervélo All-Carbon, Tapered R5CX Fork · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM Rival AXS E1 · Rear derailleur: SRAM Rival AXS D1 · Crankset: SRAM Rival 1 AXS E1, 42T, DUB Wide, with power meter · Bottom bracket: SRAM DUB Wide, T47 BBright · Cassette: SRAM Rival D1, 10-36T, 12-Speed · Chain: SRAM Rival E1
Brakes
Inspect the brakes →Archived: Brakes: Brake controls: SRAM Rival AXS E1; Rotors: SRAM Paceline Centerlock
Wheels and tires
Check wheels and tires →Archived: Wheels: Front: Reserve 30 GR AL, Reserve 4LD, 12x100mm, 24H, centerlock, tubeless compatible; Rear: Reserve 30 GR AL, Reserve 4LD, 12x142mm, XDR freehub, 24H, centerlock, tubeless compatible · Front tire: Vittoria Terreno T80 CX TLR G2.0 700x33c · Rear tire: Vittoria Terreno T80 CX TLR G2.0 700x33c
Controls and contact points
Archived: Headset: FSA IS2 1-1/4, 45° x 45° / 1-1/2, 36° x 45° · Handlebar: Cervélo HB13 Carbon, 31.8mm clamp · Stem: Cervélo ST31 Carbon · Seatpost: Cervélo SP24 Carbon · Saddle: Prologo Nago R4 PAS Steel
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
