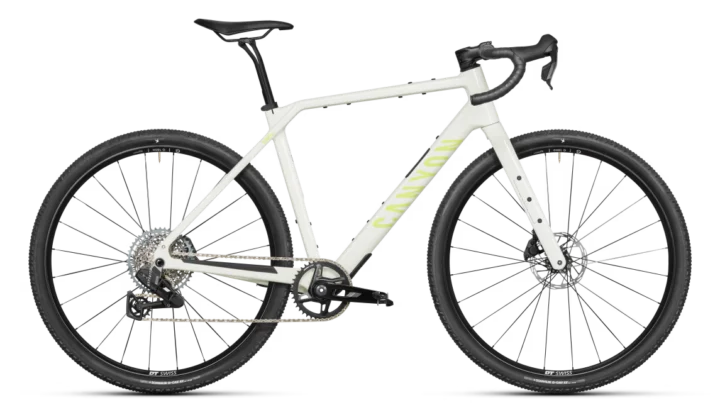

2027 Canyon Grizl CF 7 AXS
Original manufacturer specifications including 700C wheels, 20.55 lb published weight, geometry for 7 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2027
- Category
- Gravel & Cyclocross
- Original MSRP
- $3,799.00
- Sizes
- XXS, XS, S, M, L, XL, XXL
- Colors
- Acid White, Floating Violet
- Weight
- 20.55 lb
- Geometry
- 7 manufacturer sizes · Geometry context
- Record coverage
- 17 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001600
Frameset
| Frame Construction | Canyon Grizl CF |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | FK0143 |
Drivetrain
| Rear Derailleur | SRAM Rival XPLR AXS RD 13s |
|---|---|
| Crankset | SRAM Rival XPLR |
| Bottom Bracket | SRAM Pressfit DUB Wide |
| Cassette | SRAM Rival XPLR XG-1351 |
| Chain | SRAM Rival |
Cockpit & Contact Points
| Handlebar | Canyon HB0067 |
|---|---|
| Stem | Canyon ST0046 |
| Saddle | Fizik Argo Terra X5 |
| Seatpost | Canyon SP100 |
Wheels & Tires
| Wheels | DT Swiss G1800 |
|---|---|
| Front Tire | Schwalbe G-One RX Performance, 45mm |
| Rear Tire | Schwalbe G-One RX Performance, 45mm |
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | XS | XL | XXL | 2XS | L |
|---|---|---|---|---|---|---|---|
| Seat tube | 492 mm | 522 mm | 462 mm | 582 mm | 612 mm | 432 mm | 552 mm |
| Effective top tube | 559 mm | 581 mm | 545 mm | 618 mm | 643 mm | 532 mm | 603 mm |
| Head tube | 141 mm | 158 mm | 126 mm | 203 mm | 226 mm | 120 mm | 183 mm |
| Head-tube angle | 70.5° | 71° | 69.5° | 71° | 71° | 68.8° | 71° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm | 440 mm |
| Wheelbase | 1059 mm | 1076 mm | 1054 mm | 1115 mm | 1142 mm | 1047 mm | 1100 mm |
| Bottom-bracket drop | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Reach | 388 mm | 404 mm | 380 mm | 429 mm | 448 mm | 369 mm | 420 mm |
| Stack | 578 mm | 596 mm | 559 mm | 638 mm | 660 mm | 550 mm | 610 mm |
| Standover height | 810 mm | 826 mm | 785 mm | 883 mm | 892 mm | 764 mm | 883 mm |
| Crank length | 165 mm | 165 mm | 160 mm | 170 mm | 170 mm | 160 mm | 170 mm |
| Stem length | 60 mm | 60 mm | 50 mm | 70 mm | 70 mm | 50 mm | 60 mm |
| Wheel size | 700C | 700C | 700C | 700C | 700C | 700C | 700C |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its bottom-bracket drop of 66 mm sits toward the shallower-drop end. Its reach of 388 mm sits toward the longer end. The seat angle of 73.5° sits toward the more relaxed end.
Compared with 89 distinct gravel & cyclocross geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its bottom-bracket drop of 66 mm sits toward the shallower-drop end. Its reach of 404 mm sits toward the longer end. Its wheelbase of 1076 mm sits toward the longer end.
Compared with 107 distinct gravel & cyclocross geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry XS geometry
Archive context: Its wheelbase of 1054 mm sits toward the longer end. Its bottom-bracket drop of 66 mm sits toward the shallower-drop end. The seat angle of 73.5° sits toward the more relaxed end.
Compared with 39 distinct gravel & cyclocross geometries in the XS-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry XL geometry
Archive context: Its bottom-bracket drop of 66 mm sits toward the shallower-drop end. Its wheelbase of 1115 mm sits somewhat longer than typical. Its reach of 429 mm sits somewhat longer than typical.
Compared with 82 distinct gravel & cyclocross geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry XXL geometry
Archive context: Its wheelbase of 1142 mm sits toward the longer end. Its stack of 660 mm sits toward the taller end. Its bottom-bracket drop of 66 mm sits toward the shallower-drop end.
Compared with 28 distinct gravel & cyclocross geometries in the XXL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL geometry 2XS geometry
Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 2XS geometry L geometry
Archive context: Its bottom-bracket drop of 66 mm sits toward the shallower-drop end. Its reach of 420 mm sits toward the longer end. Its wheelbase of 1100 mm sits somewhat longer than typical.
Compared with 78 distinct gravel & cyclocross geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry Parts & serviceability
Find replacement parts
SRAM Rival
Interpreted as SRAM Rival · 13-speed Named component · published drivetrain speed — verify exact version
SRAM Rival XPLR XG-1351
Interpreted as SRAM Rival · 13-speed Exact archived model
SRAM Pressfit DUB Wide
Named archived component — verify dimensions
More qualified parts (4)
Fizik Argo Terra X5
Named archived component — verify exact version
SRAM Rival XPLR
Named archived component — verify exact version
SRAM Rival XPLR AXS RD 13s
Interpreted as SRAM Rival · 13-speed · electronic Component family — verify exact version
DT Swiss G1800
Named archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Canyon Grizl CF 7 AXS · Gravel · Published sizes: XXS, XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Grizl CF · Fork: FK0143
Drivetrain
Check drivetrain wear →Archived: Rear derailleur: SRAM Rival XPLR AXS RD 13s · Crankset: SRAM Rival XPLR · Bottom bracket: SRAM Pressfit DUB Wide · Cassette: SRAM Rival XPLR XG-1351 · Chain: SRAM Rival
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: DT Swiss G1800 · Front tire: Schwalbe G-One RX Performance, 45mm · Rear tire: Schwalbe G-One RX Performance, 45mm
Controls and contact points
Archived: Handlebar: Canyon HB0067 · Stem: Canyon ST0046 · Seatpost: Canyon SP100 · Saddle: Fizik Argo Terra X5
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
