Velopedia Bicycle Archive
2027 Kona Libre
Cyclocross/Gravel bicycle from the Velopedia specification archive.
Selling this bike? Create a Bike History Report
What Velopedia knows
- Model year
- 2027
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,299.00
- Sizes
- 48, 50, 52, 54, 56, 58
- Colors
- Gloss Winter Sky w/ Metallic Nickel Decals
- Geometry
- 6 manufacturer sizes · Geometry context
- Record coverage
- 24 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900000999
Model history 1 other year
Frameset
| Frame Construction | Kona 6061 Aluminum Butted |
|---|---|
| Frame Material | Aluminum |
| Fork | Kona Libre Carbon Flat Mount Disc |
| Fork Material | Carbon Fiber |
| Rear Shock | n/a |
Drivetrain
| Shifters | Shimano CUES 6030 |
|---|---|
| Front Derailleur | Shimano CUES 6030 |
| Rear Derailleur | Shimano CUES 6020 |
| Crankset | Shimano CUES 6040 32/46t / Length 48-54 170mm / 56-58 175mm |
| Bottom Bracket | Shimano PF86.5 |
| Cassette | Shimano CUES LG300 11-39t 10spd |
| Chain | Shimano CUES LG500 |
| Pedals | n/a |
Brakes
| Brakes | Brake Calipers: Shimano CUES 6030; Front Brake Rotor: Shimano RT56 180mm 6B; Rear Brake Rotor: Shimano RT56 180mm 6B; Brake Levers: Shimano CUES 6030 |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit No.57E ZS44/ZS56 |
|---|---|
| Handlebar | Kona Gravel Dropbar 31.8mm / Width 48 42cm / 50-52 44cm / 54 46cm / 56-58 48cm |
| Stem | Kona Gravel Deluxe 31.8mm / Rise 6º / Length 48-52 60mm / 54-56 70mm / 58 80mm |
| Saddle | WTB Gravelier Steel Fusion Form |
| Seatpost | Kona Thumb w/Offset 27.2mm / Length 48-50 325mm / 52 350mm / 54-58 375mm |
Wheels & Tires
| Hubs | (F) Formula 12x100mm 6B / (R) Formula 12x142mm 6B HG |
|---|---|
| Rims | WTB ST I25 TCS 2.0 CVX |
| Spokes | Stainless 2.0mm Black |
| Front Tire | WTB Vulpine TCS Light 700x45c |
| Rear Tire | WTB Vulpine TCS Light 700x45c |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 48 | 50 | 52 | 54 | 56 | 58 |
|---|---|---|---|---|---|---|
| Seat tube | 440 mm | 460 mm | 480 mm | 510 mm | 540 mm | 570 mm |
| Top tube | 527 mm | 542 mm | 556 mm | 573 mm | 590 mm | 610 mm |
| Head tube | 109 mm | 125 mm | 140 mm | 165 mm | 186 mm | 218 mm |
| Head-tube angle | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° | 70.5° |
| Seat-tube angle | 75° | 74.5° | 74° | 73.5° | 73° | 72.5° |
| Chainstay / rear center | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm | 435 mm |
| Wheelbase | 1030 mm | 1040 mm | 1050 mm | 1064 mm | 1076 mm | 1092 mm |
| Bottom-bracket drop | 75 mm | 75 mm | 75 mm | 72 mm | 72 mm | 72 mm |
| Bottom-bracket height | 285 mm | 285 mm | 285 mm | 288 mm | 288 mm | 288 mm |
| Reach | 380 mm | 385 mm | 390 mm | 395 mm | 400 mm | 405 mm |
| Stack | 550 mm | 565 mm | 580 mm | 600 mm | 620 mm | 650 mm |
| Standover height | 733 mm | 752 mm | 770 mm | 799 mm | 825 mm | 855 mm |
| Fork offset / rake | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| Front center | 606 mm | 616 mm | 626 mm | 639 mm | 651 mm | 667 mm |
| Fork length / axle-to-crown | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
Geometry source: Manufacturer HTML geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
48 geometry
Archive context: The seat angle of 75° sits toward the steeper end. The chainstay of 435 mm sits somewhat longer than typical. Its stack of 550 mm sits close to the middle of the group.
Compared with 70 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 48 geometry 50 geometry
Archive context: Its reach of 385 mm sits somewhat longer than typical. Its stack of 565 mm sits somewhat taller than typical. Its wheelbase of 1040 mm sits somewhat longer than typical.
Compared with 70 distinct cyclocross/gravel geometries in the Small-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 50 geometry 52 geometry
Archive context: The chainstay of 435 mm sits somewhat longer than typical. The seat angle of 74° sits somewhat steeper than typical. The head angle of 70.5° sits somewhat slacker than typical.
Compared with 83 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 52 geometry 54 geometry
Archive context: Its wheelbase of 1064 mm sits somewhat longer than typical. Its stack of 600 mm sits somewhat taller than typical. Its reach of 395 mm sits somewhat longer than typical.
Compared with 83 distinct cyclocross/gravel geometries in the Medium-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 54 geometry 56 geometry
Archive context: The seat angle of 73° sits somewhat more relaxed than typical. Its stack of 620 mm sits somewhat taller than typical. The chainstay of 435 mm sits somewhat longer than typical.
Compared with 59 distinct cyclocross/gravel geometries in the Large-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 56 geometry 58 geometry
Archive context: The seat angle of 72.5° sits toward the more relaxed end. Its stack of 650 mm sits toward the taller end. The chainstay of 435 mm sits somewhat longer than typical.
Compared with 64 distinct cyclocross/gravel geometries in the XL-equivalent size cohort from model years 2025–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 58 geometry Parts & serviceability
Find replacement parts
ChainShimano CUES LG500Exact archived model
CassetteShimano CUES LG300 11-39t 10spdExact archived model
Front tireWTB Vulpine TCS Light 700x45cNamed tire and published size
More qualified parts (6)
Bottom bracketShimano PF86.5Named archived component — verify dimensions
SaddleWTB Gravelier Steel Fusion FormNamed archived component — verify exact version
Front derailleurShimano CUES 6030Named component · published drivetrain speed — verify exact version
Rear derailleurShimano CUES 6020Named component · published drivetrain speed — verify exact version
ShiftersShimano CUES 6030Named component · published drivetrain speed — verify exact version
RimsWTB ST I25 TCS 2.0 CVXNamed archived component — verify dimensions
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesTest each brake separately and confirm it stops firmly and releases cleanly. Inspect the pads and braking surfaces for wear or contamination, and check the cables or hoses for damage.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 10-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Kona Libre · Cyclocross/Gravel · Published sizes: 48, 50, 52, 54, 56, 58
Frame and fork
Inspect the frame and fork →Archived: Frame: Kona 6061 Aluminum Butted · Fork: Kona Libre Carbon Flat Mount Disc · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano CUES 6030 · Front derailleur: Shimano CUES 6030 · Rear derailleur: Shimano CUES 6020 · Crankset: Shimano CUES 6040 32/46t / Length 48-54 170mm / 56-58 175mm · Bottom bracket: Shimano PF86.5 · Cassette: Shimano CUES LG300 11-39t 10spd · Chain: Shimano CUES LG500
Brakes
Inspect the brakes →Archived: Brakes: Brake Calipers: Shimano CUES 6030; Front Brake Rotor: Shimano RT56 180mm 6B; Rear Brake Rotor: Shimano RT56 180mm 6B; Brake Levers: Shimano CUES 6030
Wheels and tires
Check wheels and tires →Archived: Rims: WTB ST i25 TCS 2.0 CVX · Hubs: (F) Formula 12x100mm 6B / (R) Formula 12x142mm 6B HG · Front tire: WTB Vulpine TCS Light 700x45c · Rear tire: WTB Vulpine TCS Light 700x45c
Controls and contact points
Archived: Headset: FSA Orbit No.57E ZS44/ZS56 · Handlebar: Kona Gravel Dropbar 31.8mm / Width 48 42cm / 50-52 44cm / 54 46cm / 56-58 48cm · Stem: Kona Gravel Deluxe 31.8mm / Rise 6º / Length 48-52 60mm / 54-56 70mm / 58 80mm · Seatpost: Kona Thumb w/Offset 27.2mm / Length 48-50 325mm / 52 350mm / 54-58 375mm · Saddle: WTB Gravelier Steel Fusion Form
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

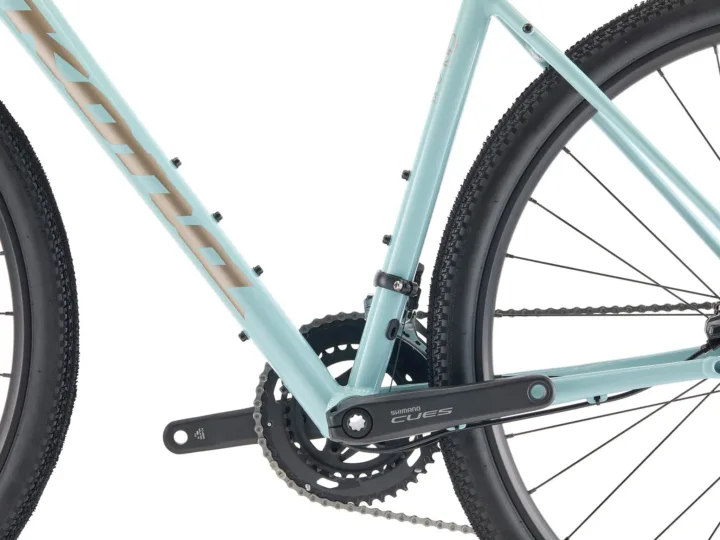

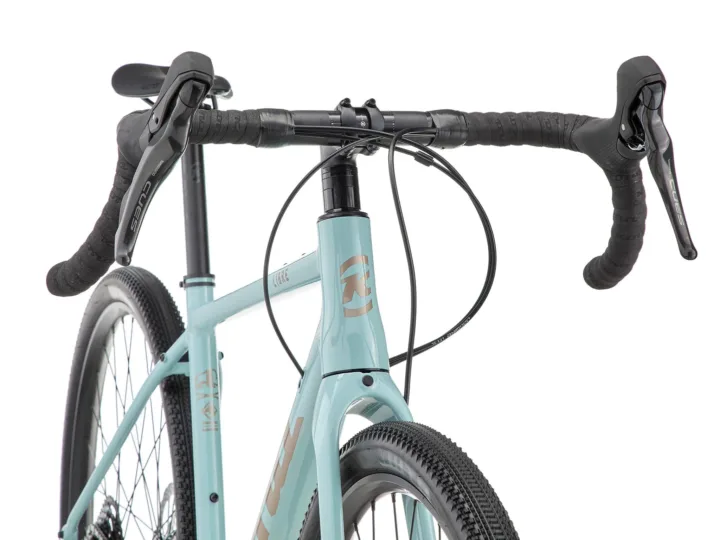

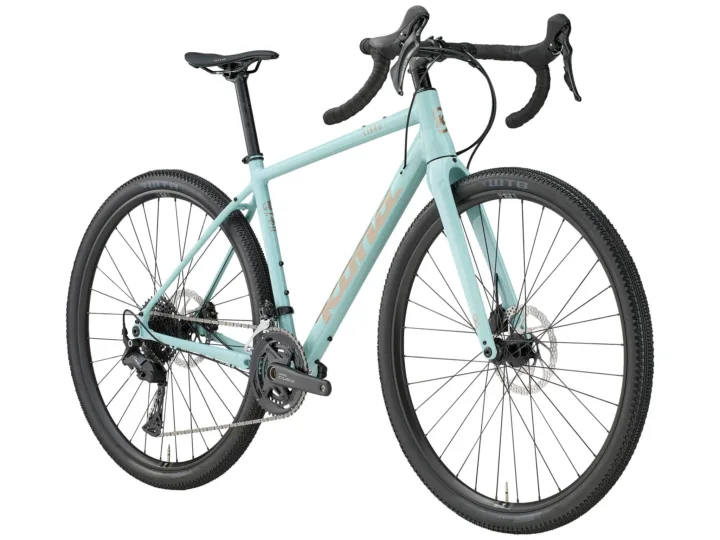

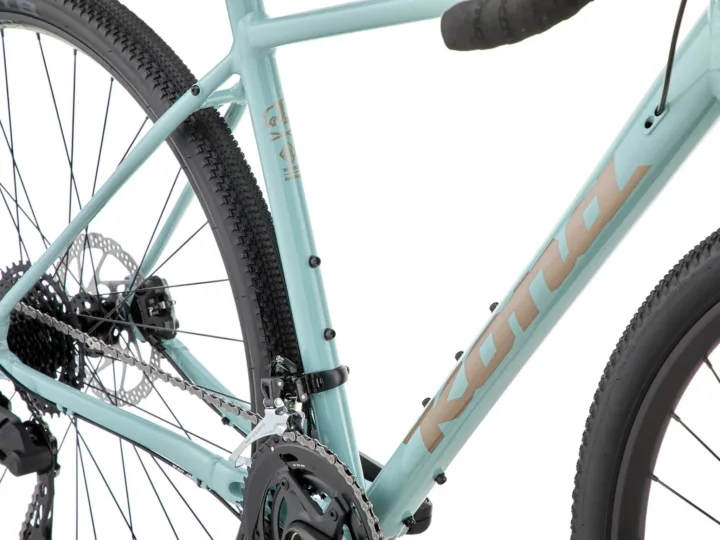

Gallery
Recently checked marketplace data
Market Snapshot
Velopedia did not find a close used eBay listing in the latest snapshot. New and used listings remain separate.
Evidence standard
Fixed-price and Best Offer item prices only
Shipping and tax excluded
Active asks, not completed sales
No close current matches found. Velopedia did not find an eBay listing confident enough to include in the latest snapshot.
Listings shown have not passed their eBay-supplied end time. Velopedia rechecks matched bicycles on a protected weekly cycle; availability can still change between checks. Price calculations use active fixed-price and Best Offer item prices before shipping and tax. Auction bids, auction-only prices, classified ads, lower-confidence Review candidates and ended listings are excluded. These observations are not completed-sale prices, a certified appraisal or a guarantee of value.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
