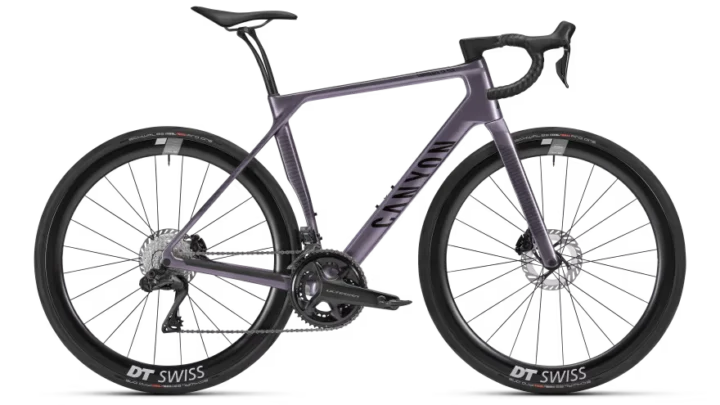

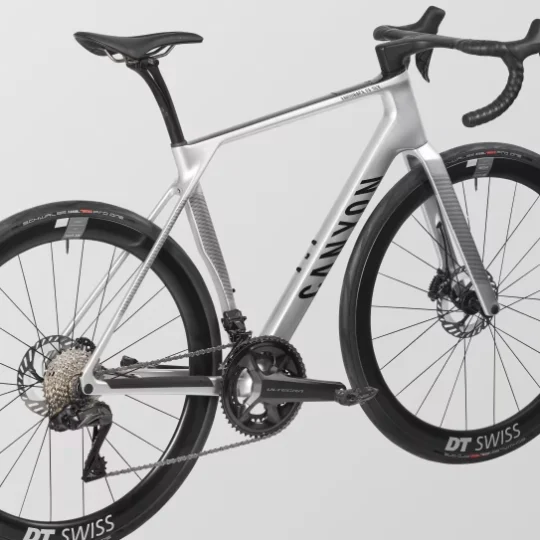

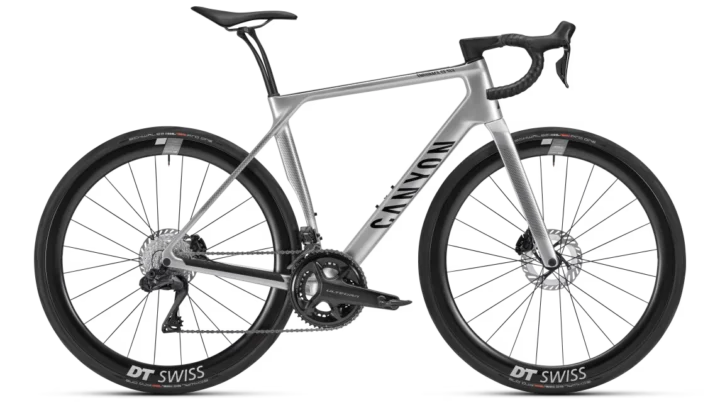

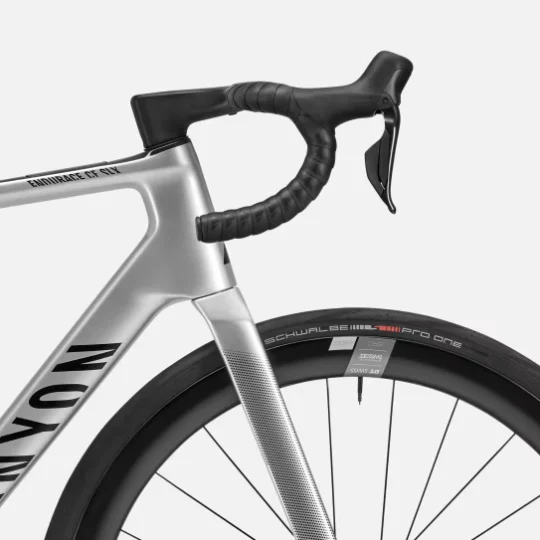

2026 Canyon Endurace CF SLX 8 Di2
Original manufacturer specifications including 27.5; 700C wheels, 17.29 lb published weight, geometry for 8 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Road
- Original MSRP
- $4,899.00
- Sizes
- 3XS, XXS, XS, S, M, L, XL, XXL
- Colors
- Chrome Whisper
- Weight
- 17.29 lb
- Geometry
- 8 manufacturer sizes · Geometry context
- Record coverage
- 15 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001375
Model history 1 other year
Frameset
| Frame Construction | Canyon Endurace CF SLX |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | Canyon FK0149 |
Drivetrain
| Rear Derailleur | Shimano Ultegra Di2 |
|---|---|
| Crankset | Shimano Ultegra R8100, 12-speed |
| Bottom Bracket | Shimano Pressfit BB72 |
| Cassette | Shimano CS-R8101 11-34 12s |
| Chain | Shimano XT |
Cockpit & Contact Points
| Saddle | Fizik Aliante R3 |
|---|---|
| Seatpost | Canyon S15 VCLS 2.0 CF |
Wheels & Tires
| Wheels | Front: DT Swiss ERC 1400 Dicut; Rear: DT Swiss ERC1400 |
|---|---|
| Front Tire | Schwalbe Pro One Evo 32 mm |
| Rear Tire | Schwalbe Pro One Evo 32 mm |
| Wheel Size | 27.5; 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | 3XS | 2XS | XS | S | M | L | XL | XXL |
|---|---|---|---|---|---|---|---|---|
| Seat tube | 402 mm | 432 mm | 462 mm | 492 mm | 522 mm | 552 mm | 582 mm | 612 mm |
| Effective top tube | 501 mm | 511 mm | 531 mm | 543 mm | 553 mm | 568 mm | 594 mm | 609 mm |
| Head tube | 123 mm | 138 mm | 129 mm | 146 mm | 165 mm | 186 mm | 212 mm | 232 mm |
| Head-tube angle | 70.3° | 71.5° | 70.8° | 71.8° | 72.75° | 73° | 73.3° | 73.3° |
| Seat-tube angle | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° | 73.5° |
| Chainstay / rear center | 405 mm | 405 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm | 415 mm |
| Wheelbase | 959 mm | 958 mm | 991 mm | 993 mm | 993 mm | 1006 mm | 1029 mm | 1044 mm |
| Bottom-bracket drop | 60 mm | 60 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Reach | 350 mm | 354 mm | 370 mm | 375 mm | 378 mm | 387 mm | 405 mm | 415 mm |
| Stack | 510 mm | 529 mm | 548 mm | 568 mm | 590 mm | 611 mm | 637 mm | 656 mm |
| Standover height | 708 mm | 734 mm | 763 mm | 788 mm | 815 mm | 840 mm | 867 mm | 891 mm |
| Crank length | 165 mm | 165 mm | 170 mm | 170 mm | 172.5 mm | 172.5 mm | 175 mm | 175 mm |
| Wheel size | 27.5 | 27.5 | 700C | 700C | 700C | 700C | 700C | 700C |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
3XS geometry
Archive context: Its reach of 350 mm sits toward the shorter end. Its wheelbase of 959 mm sits toward the shorter end. The chainstay of 405 mm sits toward the shorter rear-center end.
Compared with 33 distinct road geometries in the XXS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.2XS geometry
Archive context: The head angle of 71.5° sits toward the steeper end. Its wheelbase of 958 mm sits toward the shorter end. Its stack of 529 mm sits toward the taller end.
Compared with 33 distinct road geometries in the XXS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze 2XS geometry XS geometry
Archive context: Its stack of 548 mm sits toward the taller end. The seat angle of 73.5° sits toward the more relaxed end. Its reach of 370 mm sits somewhat shorter than typical.
Compared with 64 distinct road geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry S geometry
Archive context: Its stack of 568 mm sits toward the taller end. The seat angle of 73.5° sits toward the more relaxed end. Its wheelbase of 993 mm sits somewhat longer than typical.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its stack of 590 mm sits toward the taller end. Its reach of 378 mm sits somewhat shorter than typical. The seat angle of 73.5° sits somewhat more relaxed than typical.
Compared with 88 distinct road geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its stack of 611 mm sits toward the taller end. Its reach of 387 mm sits somewhat shorter than typical. The head angle of 73° sits somewhat steeper than typical.
Compared with 77 distinct road geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its stack of 637 mm sits toward the taller end. The head angle of 73.3° sits toward the steeper end. Its bottom-bracket drop of 73 mm sits somewhat deeper than typical.
Compared with 63 distinct road geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry XXL geometry
Archive context: Its stack of 656 mm sits toward the taller end. Its reach of 415 mm sits toward the longer end. The seat angle of 73.5° sits toward the steeper end.
Compared with 39 distinct road geometries in the XXL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XXL geometry Parts & serviceability
Find replacement parts
Shimano CS-R8101 11-34 12s
Exact archived model
Shimano Pressfit BB72
Named archived component — verify dimensions
Fizik Aliante R3
Named archived component — verify exact version
More qualified parts (2)
Shimano Ultegra R8100, 12-speed
Named archived component — verify exact version
Shimano Ultegra Di2
Interpreted as Shimano Ultegra · 12-speed · Di2 Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 17 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 Canyon Endurace CF SLX 8 Di2 · Road · Published sizes: 3XS, XXS, XS, S, M, L, XL, XXL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Endurace CF SLX · Fork: Canyon FK0149
Drivetrain
Check drivetrain wear →Archived: Rear derailleur: Shimano Ultegra Di2 · Crankset: Shimano Ultegra R8100, 12-speed · Bottom bracket: Shimano Pressfit BB72 · Cassette: Shimano CS-R8101 11-34 12s · Chain: Shimano XT
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 27.5; 700C · Wheels: Front: DT Swiss ERC 1400 Dicut; Rear: DT Swiss ERC1400 · Front tire: Schwalbe Pro One Evo 32 mm · Rear tire: Schwalbe Pro One Evo 32 mm
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
