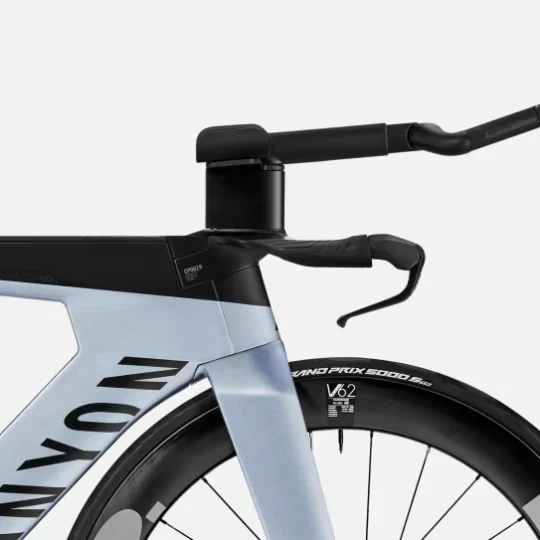

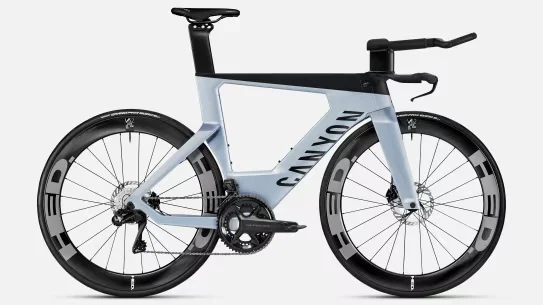

2025 Canyon Speedmax CF SLX 8 Di2 Vanquish
Original manufacturer specifications including 700C; 27.5 wheels, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2025
- Category
- Road
- Original MSRP
- $8,099.00
- Sizes
- XS, S, M, L, XL
- Colors
- Arctic Grey
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 16 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001610
Frameset
| Frame Construction | Canyon Speedmax CF SLX Disc |
|---|---|
| Frame Material | Carbon (CF) |
| Fork | Canyon FK0080 CF Disc |
| Fork Material | Carbon |
Drivetrain
| Shifters | Shimano Dura-Ace Di2 R9160 Remote TT |
|---|---|
| Rear Derailleur | Shimano Ultegra Di2 |
| Crankset | Shimano Ultegra FC-R8100 4iiii Precision Powermeter |
| Bottom Bracket | Shimano Pressfit BB72 |
| Cassette | Shimano CS-R8101 11-30 12s |
| Chain | Shimano XT |
Cockpit & Contact Points
| Saddle | Selle Italia Watt Superflow |
|---|---|
| Seatpost | Canyon SP0049 Aero Seatpost |
Wheels & Tires
| Wheels | HED Vanquish V62 |
|---|---|
| Front Tire | Continental Grand Prix 5000 S TR, 25mm |
| Rear Tire | Continental Grand Prix 5000 S TR, 28mm |
| Wheel Size | 700C; 27.5 |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL | XS |
|---|---|---|---|---|---|
| Seat tube | 531 mm | 552 mm | 592 mm | 616 mm | 488 mm |
| Effective top tube | 494 mm | 519 mm | 548 mm | 576 mm | 466 mm |
| Head tube | 62 mm | 83 mm | 123 mm | 150 mm | 64 mm |
| Head-tube angle | 73° | 73° | 73° | 73° | 72° |
| Seat-tube angle | 80.5° | 80.5° | 80.5° | 80.5° | 80.5° |
| Chainstay / rear center | 420 mm | 420 mm | 420 mm | 420 mm | 410 mm |
| Wheelbase | 986 mm | 1014 mm | 1047 mm | 1079 mm | 960 mm |
| Bottom-bracket drop | 72 mm | 72 mm | 72 mm | 72 mm | 52 mm |
| Reach | 415 mm | 438 mm | 459 mm | 483 mm | 393 mm |
| Stack | 469 mm | 489 mm | 527 mm | 553 mm | 435 mm |
| Standover height | 797 mm | 817 mm | 857 mm | 881 mm | 759 mm |
| Crank length | 165 mm | 170 mm | 170 mm | 172.5 mm | 165 mm |
| Wheel size | 700C | 700C | 700C | 700C | 27.5 |
Geometry source: Canyon first-party ProductGroup geometry ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its stack of 469 mm sits toward the lower end. Its reach of 415 mm sits toward the longer end. The seat angle of 80.5° sits toward the steeper end.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its reach of 438 mm sits toward the longer end. Its stack of 489 mm sits toward the lower end. The seat angle of 80.5° sits toward the steeper end.
Compared with 89 distinct road geometries in the Medium-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its reach of 459 mm sits toward the longer end. The seat angle of 80.5° sits toward the steeper end. Its stack of 527 mm sits toward the lower end.
Compared with 77 distinct road geometries in the Large-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: Its reach of 483 mm sits toward the longer end. The seat angle of 80.5° sits toward the steeper end. Its wheelbase of 1079 mm sits toward the longer end.
Compared with 63 distinct road geometries in the XL-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry XS geometry
Archive context: Its stack of 435 mm sits toward the lower end. The seat angle of 80.5° sits toward the steeper end. Its bottom-bracket drop of 52 mm sits toward the shallower-drop end.
Compared with 64 distinct road geometries in the XS-equivalent size cohort from model years 2023–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XS geometry Parts & serviceability
Find replacement parts
Shimano CS-R8101 11-30 12s
Exact archived model
Shimano Pressfit BB72
Named archived component — verify dimensions
Selle Italia Watt Superflow
Named archived component — verify exact version
More qualified parts (3)
Shimano Ultegra FC-R8100 4iiii Precision Powermeter
Exact archived model
Shimano Ultegra Di2
Interpreted as Shimano Ultegra · 12-speed · Di2 Component family — verify exact version
Shimano Dura-Ace Di2 R9160 Remote TT
Interpreted as Shimano Dura-Ace · 12-speed · Di2 Component family — verify exact version
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- BrakesIdentify the installed brake system before riding or ordering parts. Test every installed brake separately at walking speed, confirm it stops firmly and releases cleanly, then inspect its pads, braking surfaces and complete cable or hose path.Inspect the brakes →
- DrivetrainConfirm every shift-system battery charges, every shift control works and the derailleur moves cleanly across the cassette. Make sure the matching shift-system charger is included, then measure chain wear and inspect the cassette teeth.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 17 checks based on 4 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2025 Canyon Speedmax CF SLX 8 Di2 Vanquish · Road · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: Canyon Speedmax CF SLX Disc · Fork: Canyon FK0080 CF Disc · Carbon
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Dura-Ace Di2 R9160 Remote TT · Rear derailleur: Shimano Ultegra Di2 · Crankset: Shimano Ultegra FC-R8100 4iiii Precision Powermeter · Bottom bracket: Shimano Pressfit BB72 · Cassette: Shimano CS-R8101 11-30 12s · Chain: Shimano XT
Brakes
Inspect the brakes →Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C; 27.5 · Wheels: HED Vanquish V62 · Front tire: Continental Grand Prix 5000 S TR, 25mm · Rear tire: Continental Grand Prix 5000 S TR, 28mm
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
