Velopedia Bicycle Archive

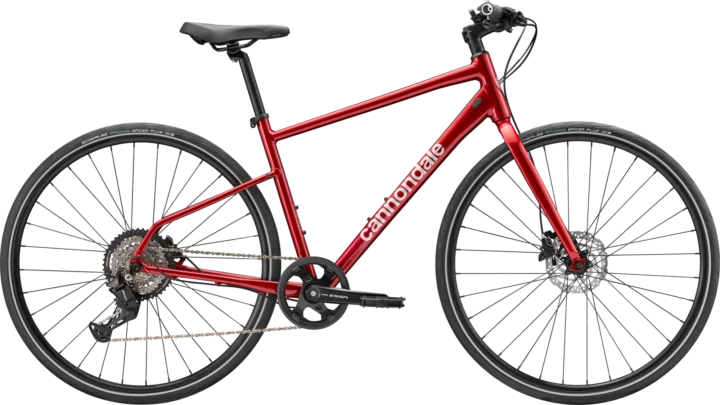

2026 Cannondale Quick 3

Original specifications: 700c wheels · geometry for 6 published sizes.

Share owner experience

Selling this bike? Create a shareable bike record

At a glance

Model year
2026
Category
Hybrid
Original MSRP
$749.00
Sizes
XS, S, M, L, XL, XXL
Colors
Spruce Green, Grey, Metallic Red
Geometry
6 manufacturer sizes
In this record
22 specifications · 3 archived images · original MSRP · geometry
Archive ID
900000894
Model history 4 other years
Original buildAluminum · 700c

Manufacturer catalog

Published sizes and colors

6 sizes · 3 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSMLXLXXL

Published colors

Spruce GreenGreyMetallic Red

Frameset

Frame ConstructionQuick, SmartForm C3 Alloy, tapered head tube, Straightshot hidden cable routing, post mount disc, rack/fender/Si kickstand mounts
Frame MaterialAluminum
ForkSteel, ISO disc mount, 100x9mm QR, 1-1/8" steerer, fender mounts,
Fork MaterialSteel

Drivetrain

ShiftersShimano Essa, RapidFire, 8-speed
Rear DerailleurShimano Essa U2000, 8-speed
CranksetShimano Essa, 40T
Bottom BracketShimano UN101, square taper
Rear CogsShimano HG400, 11-45, 8-speed
ChainKMC X8, 8-speed

Brakes

BrakesBrakes Shimano MT200 hydraulic disc, 160/160mm RT10 centerlock rotors Brake Levers Shimano MT-200 hydraulic disc

Cockpit & Contact Points

HeadsetSealed Bearing, integrated, 1-1/8"
HandlebarCannondale 3 Riser, 6061 Alloy, 18mm rise, 8° back, 4° up, 680mm
StemCannondale 3 Intellimount, Alloy, 31.8mm, With SP-Connect SPC+ Mount
SaddleSelle Royal Vaia Moderate
SeatpostCannondale 3, 6061 Alloy, 27.2x350mm (XS-LG), 400mm (XL-2XL)

Wheels & Tires

Hubs(F) Shimano QC300, 9x100mm, centerlock, QR / (R) Shimano QC300, 9x135mm, centerlock, QR
RimsCannondale DC 4.0 Disc, double wall w/eyelet, 32h
SpokesStainless Steel, 14g
Front TireSchwalbe Spicer Plus, 700x35c
Rear TireSchwalbe Spicer Plus, 700x35c
Wheel Size700c

Geometry

6 sizes · 18 measurements

Frame measurements by size.

All geometry measurements6 sizes · 18 measurements
MeasurementXSSMLXLXXL
Seat tube350 mm400 mm450 mm500 mm550 mm600 mm
Effective top tube552 mm567 mm583 mm598 mm613 mm628 mm
Top tube530 mm543 mm558 mm574 mm591 mm610 mm
Head tube112 mm133 mm158 mm184 mm209 mm234 mm
Head-tube angle70°71°71°71°71°71°
Seat-tube angle70.3°70.3°70.3°70.3°70.3°70.3°
Chainstay / rear center435 mm435 mm435 mm435 mm435 mm435 mm
Wheelbase1046 mm1053 mm1069 mm1086 mm1102 mm1118 mm
Bottom-bracket drop68 mm68 mm68 mm68 mm68 mm68 mm
Bottom-bracket height286 mm286 mm286 mm286 mm286 mm286 mm
Reach390 mm398 mm406 mm414 mm422 mm430 mm
Stack530 mm554 mm578 mm602 mm626 mm650 mm
Standover height663 mm706 mm743 mm782 mm821 mm855 mm
Fork offset / rake55 mm55 mm55 mm55 mm55 mm55 mm
Front center620 mm627 mm643 mm660 mm676 mm692 mm
Trail70 mm64 mm64 mm64 mm64 mm64 mm
Fork length / axle-to-crown400 mm400 mm400 mm400 mm400 mm400 mm
Wheel size700c700c700c700c700c700c

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.

Gearing

Chainring ÷ rear sprocket

Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.

All published sizes40T · 11–45T · 8-speed
Lowest0.89:1 Highest3.64:1 Total range409%

6.5–26.5 mph at 90 rpm, estimated from the published rear tire size 700×35c · 35-622 ETRTO.
