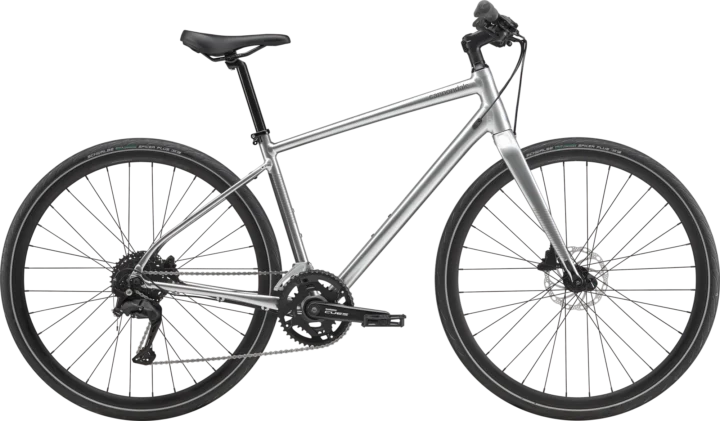

2023 Cannondale Quick 3

Archived: 2023 Cannondale Quick 3 · Hybrid · Published sizes: SM; 2X; XL; MD; LG

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: SmartForm C3 Alloy, SAVE, tapered head tube, Straightshot hidden cable routing, flat mount disc, rack/fender mounts, 360° reflectivity · Fork: Full carbon, 12x100mm thru-axle, 1-1/4" to 1-1/8" tapered steerer, flat mount disc, fender mounts, 360° reflectivity · Carbon fiber

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Shifters: Shimano Cues, 9-speed · Front derailleur: Shimano CUES, 31.8mm clamp · Rear derailleur: Shimano Cues, Shadow SGS · Crankset: Shimano U4010-2, 46/30 · Bottom bracket: Cartridge, square taper · Rear cogs: Shimano LG 300, 11-36, 9-speed · Chain: Shimano LG500

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Brakes Tektro HD-R280 hydraulic disc, 160/140mm rotors Brake Levers Tektro hydraulic disc

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700 · Rims: Cannondale Disc, double wall w/eyelet, 32h · Hubs: (F) Formula CRX-512, 12x100mm / (R) Formula DC-1422, QR · Front tire: Schwalbe Spicer, 700x35c, K-Guard, reflective strip · Rear tire: Schwalbe Spicer, 700x35c, K-Guard, reflective strip

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.

Archived: Headset: FSA Sealed Bearing, Integrated, 1-1/4"-1-1/8" · Handlebar: 6061 Alloy Double-butted, 25mm rise, 8° sweep, 6° rise, 640mm · Stem: Cannondale 3 with Intellimount, Alloy, 31.8mm clamp · Seatpost: 6061 Alloy, 27.2x350mm · Saddle: Cannondale Fitness Ergo Double Density

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
