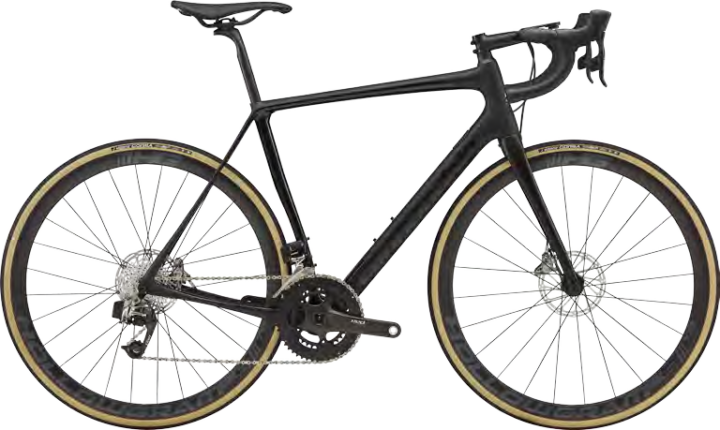

2019 Cannondale Synapse Hi-MOD Disc RED eTap

Archived: 2019 Cannondale Synapse Hi-MOD Disc RED eTap · Road · Published sizes: 48, 51, 54, 56, 58, 61

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Synapse Disc Asymmetric, BallisTec Hi-MOD Carbon, Di2 ready, SAVE, BB30a, flat mount, 12mm thru axle · Fork: · Carbon

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Shifters: SRAM RED eTap HRD, 2x11 · Front derailleur: SRAM RED eTap, braze-on · Rear derailleur: SRAM RED eTap, Mid cage · Crankset: SRAM RED Carbon, 50/34 · Bottom bracket: Cannondale Alloy PressFit30 · Rear cogs: SRAM Force, 11-32, 11-speed · Chain: SRAM PC-1170, 11-speed

• Confirm every shift battery charges and every control operates. Shift through the full cassette under light load while checking pairing, derailleur alignment and response at both ends of the range.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: SRAM RED hydro disc, 160/160mm Centerline rotors

• Inspect pads, rotors, calipers and the complete cable or hose path. Both levers should feel consistent and both calipers should release without persistent rubbing.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 700c · Rims: Cannondale HollowGram Si, Carbon Clincher Disc, 19mm inner, 35mm deep, tubeless ready · Hubs: Cannondale HollowGram Sealed Bearing, straight pull, 12x100 front, 12x142 rear w/ DT Swiss internals · Front tire: Vittoria Corsa, 700 x 28c · Rear tire: Vittoria Corsa, 700 x 28c

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: Synapse Si, 25mm Carbon top cap · Handlebar: Cannondale Escape Hanger Carbon · Stem: Cannondale C1 Ultralight, 7050 Alloy, 31.8, 7°, Integrated Garmin mount · Seatpost: Cannondale SAVE Carbon, 25.4 x 350mm (44-56), 400mm (58-61) · Saddle: Fabric Scoop Shallow Race, ti rails · Pedals: Not Included

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
