Lowest1.13:1
Highest4.17:1
Total range368%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×25; rear size isn’t listed.
Velopedia Bicycle Archive

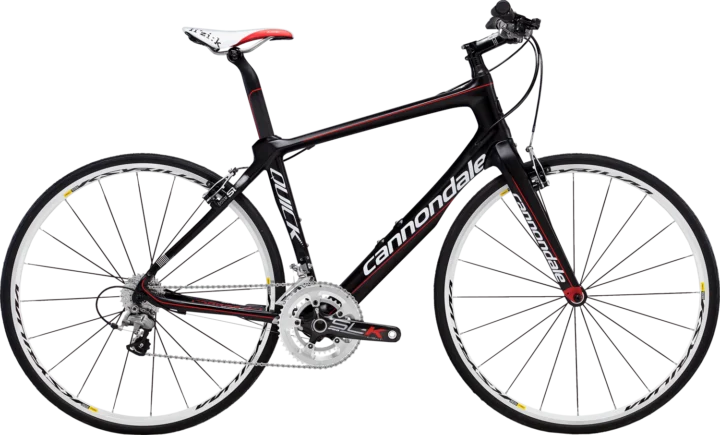

2015 Cannondale Quick Carbon 1
Original specifications: Shimano Tiagra drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #1148961- Model year
- 2015
- Category
- Gravel & Cyclocross
- Original MSRP
- $2,060.00
- Sizes
- S, M, L, XL
- Colors
- Black/White
- In this record
- 24 specifications · archived image · original MSRP
Model history 5 other years
Browse other years
Compare side by side
Identification clues
2015 archived details
- Published colors
- Black/White
- Frame
- Carbon Fiber
- Original equipment
- Shimano Tiagra
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCarbon Fiber · Shimano Tiagra · 700c
Frameset
| Frame Construction | Quick Full Carbon G2, SAVE, BB30 |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Quick Si G2, Carbon, 1-1/8" |
| Fork Material | Carbon Fiber/Aluminum |
Drivetrain
| Component Group | Shimano Tiagra |
|---|---|
| Shifters | Shimano Tiagra |
| Front Derailleur | Shimano Tiagra |
| Rear Derailleur | Shimano Tiagra |
| Crankset | FSA Omega Compact, BB30, 50/34 |
| Bottom Bracket | FSA BB30 |
| Rear Cogs | Shimano Tiagra, 12-30, 10-speed |
| Chain | KMC X10, 10-speed |
| Pedals | Quick Alloy w/ Kraton Inserts |
Brakes
| Brakes | Magura MT2 hydraulic disc, 160/160mm |
|---|
Cockpit & Contact Points
| Headset | Tange Si 1-1/8" |
|---|---|
| Handlebar | Cannondale C3, 6061 alloy, 25mm rise, 620mm |
| Stem | Cannondale C3, 31.8, 12 deg. |
| Saddle | Cannondale Quick Ergo Performance |
| Seatpost | Cannondale C3, Alloy, 27.2 |
Wheels & Tires
| Hubs | Cannondale C4, 32 hole, black |
|---|---|
| Rims | Maddux R3.0, double wall, 32-hole |
| Spokes | Stainless, 15g |
| Front Tire | Schwalbe Lugano 700x25c |
| Wheel Size | 700c |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Schwalbe Lugano 700x25c
Retailer offers
Vittoria Zaffiro Pro V Clincher Tire Black, 700x25
700x25c
Replacement option
Schwalbe Lugano on eBaySponsored links
Cannondale C3
Alloy, 27.2
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (6)Fewer parts
Shimano Tiagra
12-30, 10-speed
FSA BB30
FSA Omega Compact
BB30, 50/34
Shimano Tiagra
Shimano Tiagra
Shimano Tiagra
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Schwalbe Lugano 700x25c
- Drivetrain
- 10-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- FSA BB30
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Quick Full Carbon G2, SAVE, BB30 · Fork: Quick Si G2, Carbon, 1-1/8" · Carbon Fiber/Aluminum
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Tiagra · Shifters: Shimano Tiagra · Front derailleur: Shimano Tiagra · Rear derailleur: Shimano Tiagra · Crankset: FSA Omega Compact, BB30, 50/34 · Bottom bracket: FSA BB30 · Rear cogs: Shimano Tiagra, 12-30, 10-speed · Chain: KMC X10, 10-speed
Brakes
Inspect the brakes →Archived: Brakes: Magura MT2 hydraulic disc, 160/160mm
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c · Rims: Maddux R3.0, double wall, 32-hole · Hubs: Cannondale C4, 32 hole, black · Front tire: Schwalbe Lugano 700x25c
Controls and contact points
Archived: Headset: Tange Si 1-1/8" · Handlebar: Cannondale C3, 6061 alloy, 25mm rise, 620mm · Stem: Cannondale C3, 31.8, 12 deg. · Seatpost: Cannondale C3, Alloy, 27.2 · Saddle: Cannondale Quick Ergo Performance · Pedals: Quick Alloy w/ Kraton Inserts
