Lowest1.44:1
Highest3.83:1
Total range266%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×35; rear size isn’t listed.
Velopedia Bicycle Archive

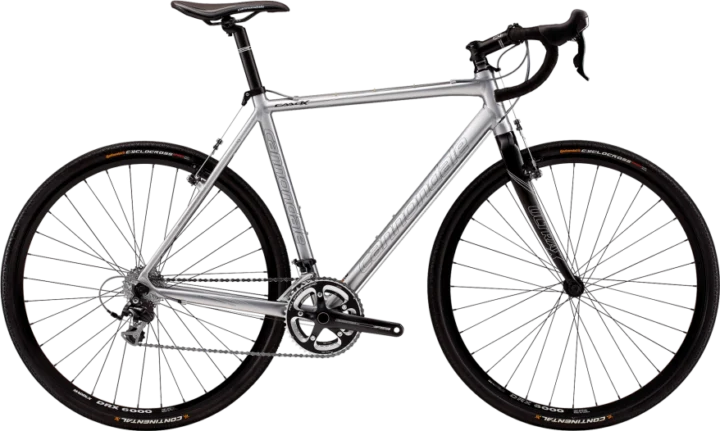

2011 Cannondale Caadx 105
Original specifications: Shimano 105 drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #22413- Model year
- 2011
- Category
- Gravel & Cyclocross
- Sizes
- 44cm, 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Brushed Aluminum
- In this record
- 26 specifications · 2 archived images
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2011 archived details
- Published colors
- Brushed Aluminum
- Frame
- Carbon
- Original equipment
- Shimano 105
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCarbon · Shimano 105 · 700c wheels
Frameset
| Frame Construction | Bonded/monocoque |
|---|---|
| Frame Material | Carbon |
| Fork | CAADX Ultra |
| Fork Material | Carbon, aero crown |
Drivetrain
| Component Group | Shimano 105 |
|---|---|
| Shifters | Shimano 105 |
| Front Derailleur | Shimano 105, 34.9mm clamp |
| Rear Derailleur | Shimano 105 |
| Crankset | FSA Gossamer Pro, 36/46 teeth |
| Bottom Bracket | FSA BB30 |
| Cassette | Shimano 105 |
| Rear Cogs | 10-speed, 12 - 25 teeth |
| Chain | Shimano 105 |
| Pedals | Not included |
Brakes
| Brakes | Tektro CR720 brakes, Shimano 105 levers |
|---|
Cockpit & Contact Points
| Headset | Caadx |
|---|---|
| Handlebar | Control Tech |
| Handlebar Extensions | Not included |
| Stem | Cannondale C4 |
| Saddle | Cannondale w/CroMo rails |
| Seatpost | Cannondale C3, 31.6mm diameter |
Wheels & Tires
| Hubs | Front: Formula RB51, Rear: Formula RB52 |
|---|---|
| Rims | Maddux DRX 6000, 32-hole |
| Spokes | Stainless |
| Front Tire | 700 x 35c Continental Cyclocross Speed |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 35c Continental Cyclocross Speed
Retailer offers
Vittoria Randonneur Reflect Tire Black, 700x35
700x35c
Replacement option
Other replacement options (1)
Challenge Strada Pro Tubeless Tire Black, 700x35
700x35c
Replacement option
Continental Cyclocross Speed on eBaySponsored links
Cannondale C3
31.6mm diameter
Retailer offers
FSA Gossamer SB20 Seatpost Black, 31.6mm, 350mm
Replacement option
Shimano 105
More parts (5)Fewer parts
FSA BB30
FSA Gossamer Pro
36/46 teeth
Shimano 105
34.9mm clamp
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano 105
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Shimano 105
Before ordering: Confirm whether the drivetrain is mechanical or electronic before ordering.
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 35c Continental Cyclocross Speed
- Drivetrain
- 10-speed
- Seatpost diameter
- 31.6 mm
- Bottom bracket / shell
- FSA BB30
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Bonded/monocoque · Fork: CAADX Ultra · Carbon, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano 105 · Shifters: Shimano 105 · Front derailleur: Shimano 105, 34.9mm clamp · Rear derailleur: Shimano 105 · Crankset: FSA Gossamer Pro, 36/46 teeth · Bottom bracket: FSA BB30 · Cassette: Shimano 105 · Rear cogs: 10-speed, 12 - 25 teeth · Chain: Shimano 105
Brakes
Inspect the brakes →Archived: Brakes: Tektro CR720 brakes, Shimano 105 levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Maddux DRX 6000, 32-hole · Hubs: Front: Formula RB51, Rear: Formula RB52 · Front tire: 700 x 35c Continental Cyclocross Speed
Controls and contact points
Archived: Headset: CAADX · Handlebar: Control Tech · Stem: Cannondale C4 · Seatpost: Cannondale C3, 31.6mm diameter · Saddle: Cannondale w/CroMo rails · Pedals: Not included
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery2 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
