Lowest1.31:1
Highest4.17:1
Total range319%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

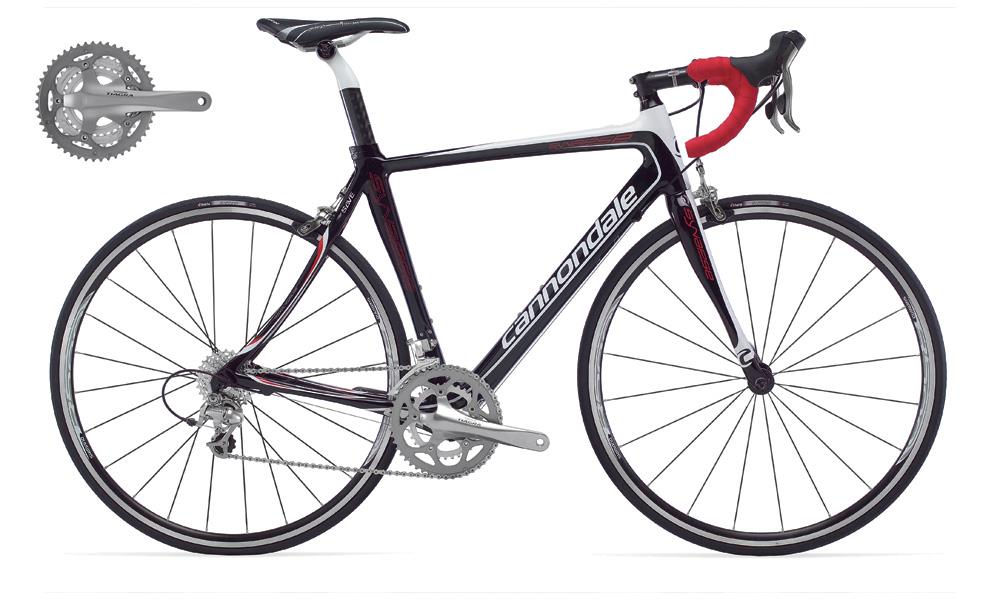

2010 Cannondale Synapse Carbon 6 Compact
Original specifications: Shimano Tiagra · 9-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #20571- Model year
- 2010
- Category
- Road
- Original MSRP
- $1,699.00
- Sizes
- 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Jet Black/Magnesium White/Red Accents, Fine Silver/Magnesium White w/Blue/Black Accents
- In this record
- 25 specifications · archived image · original MSRP
Original buildSynapse S.A.V.E. Carbon · Shimano Tiagra Mix · 700c wheels
Frameset
| Frame Construction | Carbon |
|---|---|
| Frame Material | Synapse S.A.V.E. Carbon |
| Fork | Cannondale Synapse S.A.V.E. carbon |
| Fork Material | Full Carbon, aero crown |
Drivetrain
| Component Group | Shimano Tiagra Mix |
|---|---|
| Shifters | Shimano Tiagra |
| Front Derailleur | Shimano Sora, braze-on |
| Rear Derailleur | Shimano Tiagra |
| Crankset | Shimano Tiagra Compact, 50/34 teeth |
| Bottom Bracket | Shimano Tiagra |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 12 - 26 teeth |
| Chain | Shimano HG-53 |
Brakes
| Brakes | Shimano Tiagra brakes, Shimano Tiagra levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Tange |
|---|---|
| Handlebar | Cannondale C3 |
| Handlebar Extensions | Not included |
| Stem | Cannondale C3 |
| Saddle | Prologo Kappa Pas |
| Seatpost | Cannondale Synapse Carbon |
Wheels & Tires
| Hubs | Shimano WH-R500A |
|---|---|
| Rims | Shimano WH-R500A |
| Spokes | Shimano WH-R500A |
| Front Tire | 700 x 23c Vittoria Zaffiro Pro Slick Folding |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Vittoria Zaffiro Pro Slick Folding
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Vittoria Zaffiro Pro Slick on eBaySponsored links
More parts (6)Fewer parts
Shimano Tiagra
Prologo Kappa Pas
Shimano Tiagra Compact
50/34 teeth
Shimano Sora
braze-on
Shimano Tiagra
Shimano Tiagra
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Vittoria Zaffiro Pro Slick Folding
- Drivetrain
- 9-speed
- Bottom bracket / shell
- Shimano Tiagra
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: Carbon · Fork: Cannondale Synapse S.A.V.E. carbon · Full Carbon, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Tiagra Mix · Shifters: Shimano Tiagra · Front derailleur: Shimano Sora, braze-on · Rear derailleur: Shimano Tiagra · Crankset: Shimano Tiagra Compact, 50/34 teeth · Bottom bracket: Shimano Tiagra · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 12 - 26 teeth · Chain: Shimano HG-53
Brakes
Inspect the brakes →Archived: Brakes: Shimano Tiagra brakes, Shimano Tiagra levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Shimano WH-R500A · Hubs: Shimano WH-R500A · Front tire: 700 x 23c Vittoria Zaffiro Pro Slick Folding
Controls and contact points
Archived: Headset: 1 1/8" integrated Tange · Handlebar: Cannondale C3 · Stem: Cannondale C3 · Seatpost: Cannondale Synapse Carbon · Saddle: Prologo Kappa Pas
