Lowest1.31:1
Highest4.17:1
Total range319%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

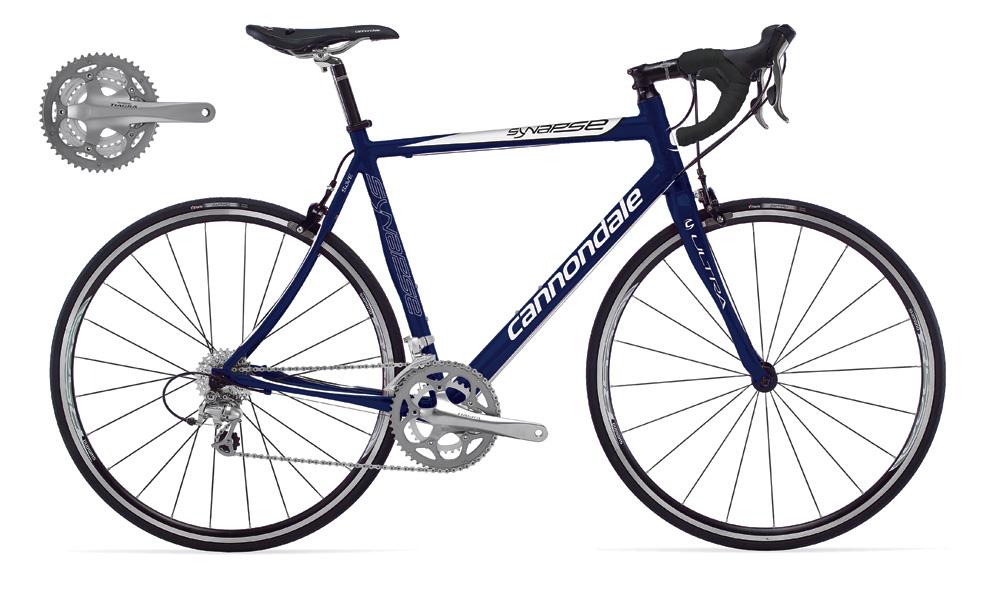

2010 Cannondale Synapse 6 Compact
Original specifications: Shimano Tiagra · 9-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #20578- Model year
- 2010
- Category
- Road
- Original MSRP
- $1,299.00
- Sizes
- 48cm, 51cm, 54cm, 56cm, 58cm, 61cm
- Colors
- Indigo Blue w/White/Black Accents, Race Red w/White/Black Accents
- In this record
- 25 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Indigo Blue w/White/Black Accents, Race Red w/White/Black Accents
- Frame
- Synapse Hydro Formed S.A.V.E. Alloy
- Original equipment
- Shimano Tiagra Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildSynapse Hydro Formed S.A.V.E. Alloy · Shimano Tiagra Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Synapse Hydro Formed S.A.V.E. Alloy |
| Fork | Cannondale Synapse S.A.V.E. carbon |
| Fork Material | Carbon, aero crown |
Drivetrain
| Component Group | Shimano Tiagra Mix |
|---|---|
| Shifters | Shimano Tiagra |
| Front Derailleur | Shimano Sora, 34.9mm clamp |
| Rear Derailleur | Shimano Tiagra |
| Crankset | Shimano Tiagra Compact, 50/34 teeth |
| Bottom Bracket | Shimano Tiagra |
| Cassette | SRAM PG-950 |
| Rear Cogs | 9-speed, 12 - 26 teeth |
| Chain | Shimano HG-53 |
Brakes
| Brakes | Tektro R316 Dual Pivot brakes, Shimano Tiagra levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" integrated Tange |
|---|---|
| Handlebar | Cannondale C3 |
| Handlebar Extensions | Not included |
| Stem | Cannondale C3 |
| Saddle | Cannondale Ergo Performance |
| Seatpost | Cannondale C3 Carbon-wrapped, 27.2mm diameter |
Wheels & Tires
| Hubs | Shimano WH-R500A |
|---|---|
| Rims | Shimano WH-R500A |
| Spokes | Shimano WH-R500A |
| Front Tire | 700 x 23c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Vittoria Zaffiro
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Vittoria Zaffiro on eBaySponsored links
Cannondale C3 Carbon-wrapped
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (7)Fewer parts
Tektro R316 Dual Pivot brakes
Shimano Tiagra levers
Shimano Tiagra
Shimano Tiagra Compact
50/34 teeth
Shimano Sora
34.9mm clamp
Shimano Tiagra
Shimano Tiagra
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Vittoria Zaffiro
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano Tiagra
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Cannondale Synapse S.A.V.E. carbon · Carbon, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Tiagra Mix · Shifters: Shimano Tiagra · Front derailleur: Shimano Sora, 34.9mm clamp · Rear derailleur: Shimano Tiagra · Crankset: Shimano Tiagra Compact, 50/34 teeth · Bottom bracket: Shimano Tiagra · Cassette: SRAM PG-950 · Rear cogs: 9-speed, 12 - 26 teeth · Chain: Shimano HG-53
Brakes
Inspect the brakes →Archived: Brakes: Tektro R316 Dual Pivot brakes, Shimano Tiagra levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Shimano WH-R500A · Hubs: Shimano WH-R500A · Front tire: 700 x 23c Vittoria Zaffiro
Controls and contact points
Archived: Headset: 1 1/8" integrated Tange · Handlebar: Cannondale C3 · Stem: Cannondale C3 · Seatpost: Cannondale C3 Carbon-wrapped, 27.2mm diameter · Saddle: Cannondale Ergo Performance
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
