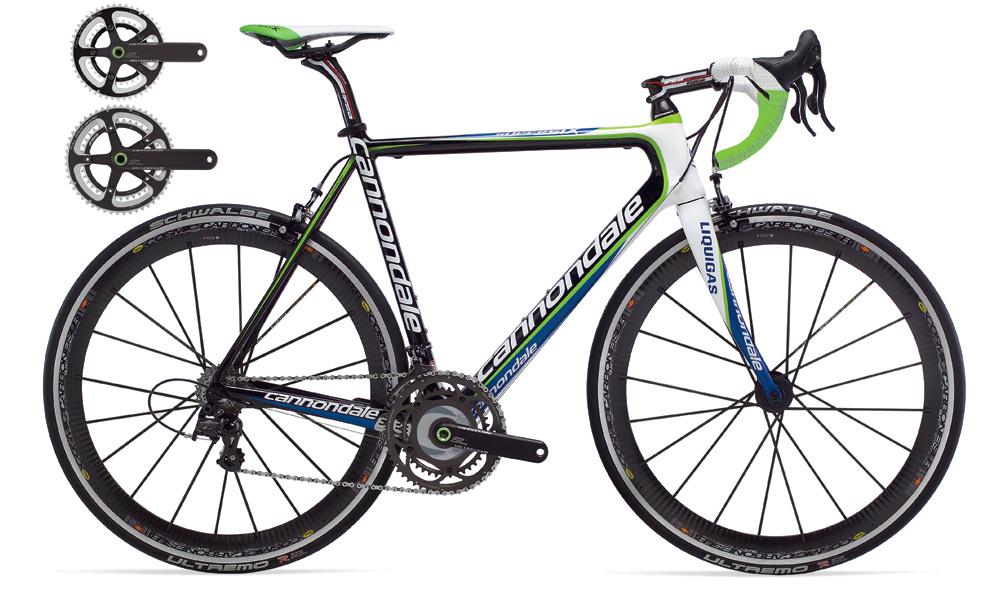

2010 Cannondale SuperSix Hi-Mod Team Double

Archived: Frame: Carbon · Fork: Cannondale SuperSix Hi-MOD · Full Carbon, aero crown

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Inspect the fork crown, blades, dropouts and visible steerer area. Check that it is straight, securely installed and free of cracks or impact damage.

Archived: Group: Road Mix · Shifters: Campagnolo Super Record QS Carbon ErgoShift · Front derailleur: Campagnolo Super Record, 34.9mm clamp · Rear derailleur: Campagnolo Super Record · Crankset: Cannondale Hollowgram BB30 SL Double, 53/39 teeth · Bottom bracket: Cannondale Hollowgram SL · Cassette: Campagnolo Super Record · Rear cogs: 11-speed, 12 - 25 teeth · Chain: Campagnolo Record

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Campagnolo Super Record D-Skeleton brakes, Campagnolo Super Record QS Carbon ErgoShift levers

• Inspect pads and braking surfaces, check the complete cable or hose path, and confirm both controls feel consistent and return cleanly.

Archived: Wheel size: 700c wheels · Rims: Mavic Cosmic Carbone SLR · Hubs: Mavic Cosmic Carbone SLR · Front tire: 700 x 23c Schwable Ultremo

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.

Archived: Headset: 1 1/2" to 1 1/8" tapered SuperSix · Handlebar: FSA K-Force Carbon compact · Stem: FSA OS-99 CSI · Seatpost: FSA K-Force Carbon, 31.6mm diameter · Saddle: Fizik Antares

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.
