Velopedia Bicycle Archive

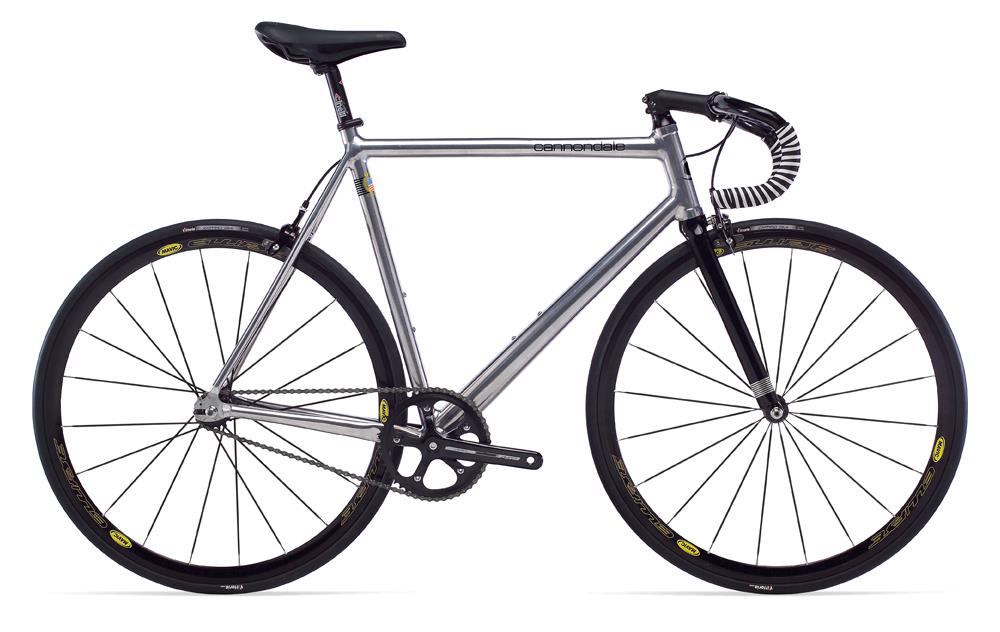

2010 Cannondale Capo 1
Original specifications: Track Mix drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #21092- Model year
- 2010
- Category
- Track
- Original MSRP
- $1,599.00
- Sizes
- 48cm, 50cm, 52cm, 54cm, 56cm, 58cm, 60cm, 63cm
- Colors
- Ball Burnished
- In this record
- 23 specifications · archived image · original MSRP
Model history 1 other year
Browse other years
Compare side by side
Identification clues
2010 archived details
- Published colors
- Ball Burnished
- Frame
- CAAD5 6061 Alloy
- Original equipment
- Track Mix
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildCAAD5 6061 Alloy · Track Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | CAAD5 6061 Alloy |
| Fork | Aero Low Profile |
| Fork Material | Aluminum, aero crown |
Drivetrain
| Component Group | Track Mix |
|---|---|
| Crankset | FSA Vero, 46 teeth |
| Bottom Bracket | Tange Sealed Cartridge |
| Cassette | Shimano freewheel |
| Rear Cogs | 1-speed, 18 teeth |
| Chain | KMC Nano Black |
| Pedals | Wellgo Resin w/Kraton Insert |
Brakes
| Brakes | Tektro R520 Dual Pivot brakes, Cannondale 2 finger levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" Tange Integrated |
|---|---|
| Handlebar | Cinelli Pista, Cro-Mo |
| Handlebar Extensions | Not included |
| Stem | Cinelli Pista |
| Saddle | Cinelli Unicantor Plastic, urban type |
| Seatpost | Cinelli Vai, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Mavic Ellipse Track, Rear: Mavic Ellipse Track flip flop |
|---|---|
| Rims | Mavic Ellipse Track Aero |
| Spokes | Mavic Ellipse Track Aero stainless |
| Front Tire | 700 x 25c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 25c Vittoria Zaffiro
Retailer offers
Vittoria Zaffiro Pro V Clincher Tire Black, 700x25
700x25c
Model match
Other replacement options (1)
Vittoria Zaffiro V Wire Bead Tire Black, 700x25
700x25c
Model match
Vittoria Zaffiro on eBaySponsored links
Cinelli Vai
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
Tektro R520 Dual Pivot brakes
Cannondale 2 finger levers
More parts (3)Fewer parts
Wellgo Resin w/Kraton Insert
FSA Vero
46 teeth
Mavic Ellipse Track Aero
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 25c Vittoria Zaffiro
- Drivetrain
- 1-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Tange Sealed Cartridge
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Aero Low Profile · Aluminum, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Track Mix · Crankset: FSA Vero, 46 teeth · Bottom bracket: Tange Sealed Cartridge · Cassette: Shimano freewheel · Rear cogs: 1-speed, 18 teeth · Chain: KMC Nano Black
Brakes
Inspect the brakes →Archived: Brakes: Tektro R520 Dual Pivot brakes, Cannondale 2 finger levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic Ellipse Track Aero · Hubs: Front: Mavic Ellipse Track, Rear: Mavic Ellipse Track flip flop · Front tire: 700 x 25c Vittoria Zaffiro
Controls and contact points
Archived: Headset: 1 1/8" Tange Integrated · Handlebar: Cinelli Pista, Cro-Mo · Stem: Cinelli Pista · Seatpost: Cinelli Vai, 27.2mm diameter · Saddle: Cinelli Unicantor Plastic, urban type · Pedals: Wellgo Resin w/Kraton Insert
