Velopedia Bicycle Archive

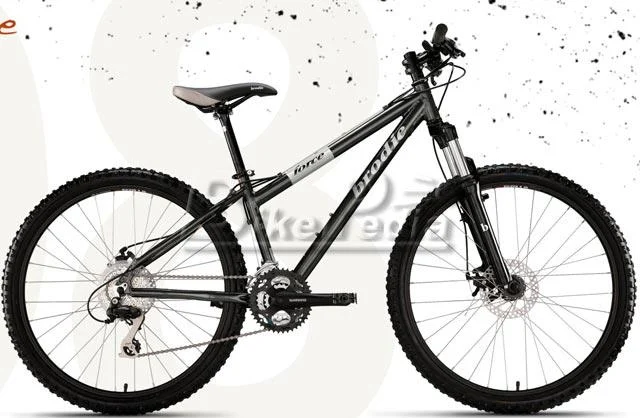

2011 Brodie Force

Original specifications: Mountain Mix drivetrain · 26" wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #25165
Model year
2011
Category
Mountain
Original MSRP
$549.00
Sizes
14.5, 16.5, 18, 19.5, 21
Colors
Black
In this record
21 specifications · archived image · original MSRP
Model history 2 other years

Browse other years

Compare side by side

Identification clues

2011 archived details

Published colors
Black
Frame
6061 Butted AL XC
Original equipment
Mountain Mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original build6061 Butted AL XC · Mountain Mix · 26" wheels

Historical catalog variants

Archived sizes and colors

5 item records

Item-level catalog entries recovered from Velopedia’s original bicycle archive. They document how this model was listed historically; they do not identify the frame size associated with legacy reference geometry or indicate current availability.

Published sizes

14.516.51819.521

Published colors

Black
View 5 archived size/color combinations
SizeColor
14.5Black
16.5Black
18Black
19.5Black
21Black

Historical catalog evidence. Exact specifications and naming may vary by market, production run or manufacturer revision.

Frameset

Frame ConstructionAluminum
Frame Material6061 Butted AL XC
ForkSuntour XCM, 100mm travel

Drivetrain

Component GroupMountain Mix
ShiftersShimano EF50 EZ-Fire
Front DerailleurShimano Altus
Rear DerailleurShimano Alivio
CranksetShimano M361, 22/32/42t teeth
CassetteShimano HG30
Rear Cogs11 - 32 teeth
PedalsWellgo Cage

Brakes

BrakesTektro IO mechanical Disc

Cockpit & Contact Points

HandlebarBrodie Lo Rise Lite 25.4
Handlebar ExtensionsNot included
StemBrodie XC 4-bolt
SaddleBrodie XC
SeatpostBrodie 2-bolt, 27.2mm diameter

Wheels & Tires

HubsShimano M475
RimsFront: Shining A-M1, Rear: Shining SS
Front Tire26 x 2.0'' Kenda Kobra
Wheel Size26" wheels

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42/32/22T · 11–32T
Lowest0.69:1 Highest3.82:1 Total range555%
Estimated speed At 90 RPM Lowest gear4.8 mph Highest gear26.6 mph

Uses front tire 26×2; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Seatpost · Original
Brodie 2-bolt

27.2mm diameter

Retailer offers
Cassette · Original
Shimano HG30
Front tire · Original
26 x 2.0'' Kenda Kobra
More parts (2)Fewer parts
Crankset · Original
Shimano M361

22/32/42t teeth

Hubs · Original
Shimano M475

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
26 x 2.0'' Kenda Kobra
Drivetrain
Mountain Mix
Seatpost diameter
27.2 mm
Equipment inspection checks 11 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 11 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Aluminum · Fork: Suntour XCM, 100mm travel

Archived: Fork: Suntour XCM, 100mm travel

Archived: Group: Mountain Mix · Shifters: Shimano EF50 EZ-Fire · Front derailleur: Shimano Altus · Rear derailleur: Shimano Alivio · Crankset: Shimano M361, 22/32/42t teeth · Cassette: Shimano HG30 · Rear cogs: 11 - 32 teeth

Archived: Brakes: Tektro IO mechanical Disc

Archived: Wheel size: 26" wheels · Rims: Front: Shining A-M1, Rear: Shining SS · Hubs: Shimano M475 · Front tire: 26 x 2.0'' Kenda Kobra

Controls and contact points

Archived: Handlebar: Brodie Lo Rise Lite 25.4 · Stem: Brodie XC 4-bolt · Seatpost: Brodie 2-bolt, 27.2mm diameter · Saddle: Brodie XC · Pedals: Wellgo Cage
