2027 Bianchi Specialissima Ultegra Di2
Original specifications: geometry for 6 published sizes.
Planning to sell? Draft your listing
At a glance
Archive #900001051- Model year
- 2027
- Category
- Road
- Original MSRP
- $7,370.00
- Sizes
- 47, 50, 53, 55, 57, 59
- Colors
- JE – Celeste: Celeste Metallico / Celeste Scuro + Logo CK16 + Full Glossy, JF – Black in black: Nero / Logo cromato iridescente + Satin / Glossy, JS – Mocha: Bianco Italia / Bronzo + Logo nero + Full Glossy
- Geometry
- 6 manufacturer sizes
- In this record
- 20 specifications · 3 archived images · original MSRP · geometry
Original buildCarbon Fiber
Frameset
| Frame Construction | Bianchi Specialissima PRO carbon, only electronic groupsets, fully internal cable routing, Flat mount disc brake type, UDH compatible, BBPressFit 86.5×41, Max crankset compatibility 58T sizes 47-50-53-55-57-59 |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Bianchi Specialissima carbon, ICR 1.5″ integrated head, Disc brake flat mount 140mm, thru axle 12×100 w/countervail |
| Fork Material | Carbon Fiber |
Drivetrain
| Shifters | Shimano Ultegra Di2, shifter lever ST-R8170, caliper BR-R8170 |
|---|---|
| Front Derailleur | Shimano Ultegra Di2, FD-R8150 |
| Rear Derailleur | Shimano Ultegra Di2, RD-R8150, 12sp |
| Crankset | Shimano Ultegra, FC-R8100, 50x34T Crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm) |
| Bottom Bracket | Shimano SM-BB72-41B, press fit type for road |
| Cassette | Shimano 105, CS-R7100 11-34T, 11-12-13-14-15-17-19-21-24-27-30-34T |
| Chain | Shimano CN-M7100, for HG 12- speed |
Brakes
| Brakes | Shimano BR-R8170 Hydraulic disc brake; Rotors: Shimano RT-CL700 Center Lock, 160 mm; Levers: Included in the shifter |
|---|
Cockpit & Contact Points
| Headset | Acros IS52 Integrated Cable Routing |
|---|---|
| Handlebar | Included in the stem |
| Stem | Bianchi Reparto Corse Carbon integrated handlebar, for Acros ICR system drop 125mm, reach 80mm Size: 90/380 (47-50 cm); 100/380 (53 cm); 110/400 (55-57 cm); 120/420 (59 cm) |
| Saddle | Prologo Nago R4 PAS, steel rail, Nylon Injection, 265 g, Length: 245 mm, Width: 137 mm |
| Seatpost | Bianchi Specialissima seatpost Full Carbon Aero length: 280 mm, 0 offset (47 cm); 300 mm, 0 offset (50-53 cm); 350 mm, 20 mm offset (55-57-59 cm) |
Wheels & Tires
| Wheels | Bianchi B 49R, 25-622, profile height 49 mm, jbend spokes, ratchet system, tubeless ready, HG11 body |
|---|---|
| Front Tire | Continental 30-622 Grand Prix TR black |
| Rear Tire | Continental 30-622 Grand Prix TR black |
No specifications match. Try a component name or clear your search.
Geometry
Frame measurements by size.
Frame diagram
Select an available measurement to locate it on the frame.
All geometry measurements6 sizes · 13 measurements
| Measurement | 47 | 50 | 53 | 55 | 57 | 59 |
|---|---|---|---|---|---|---|
| Seat tube | 420 mm | 450 mm | 480 mm | 500 mm | 520 mm | 540 mm |
| Effective top tube | 514 mm | 524 mm | 535 mm | 550 mm | 560 mm | 575 mm |
| Head tube | 100 mm | 105 mm | 120 mm | 135 mm | 150 mm | 170 mm |
| Head-tube angle | 70.5° | 71.5° | 72° | 72.5° | 73° | 73° |
| Seat-tube angle | 74.5° | 74.5° | 74° | 73.5° | 73.5° | 73° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 412 mm | 412 mm |
| Wheelbase | 982 mm | 983 mm | 984 mm | 988 mm | 996 mm | 1005 mm |
| Bottom-bracket drop | 58 mm | 58 mm | 68 mm | 68 mm | 68 mm | 68 mm |
| Reach | 379 mm | 387 mm | 386 mm | 391 mm | 397 mm | 400 mm |
| Stack | 486 mm | 494 mm | 520 mm | 536 mm | 552 mm | 571 mm |
| Fork offset / rake | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm | 43 mm |
| Front center | 579 mm | 581 mm | 582 mm | 588 mm | 593 mm | 603 mm |
| Fork length / axle-to-crown | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm | 368 mm |
Dimensions as recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
for HG 12- speed

Shimano SLX CN-M7100 12-Speed Chain Silver, 126 Links
Model match
CS-R7100 11-34T, 11-12-13-14-15-17-19-21-24-27-30-34T

Shimano 105 CS-R7100 12-Speed Cassette Silver, 11-34T, 12- Speed
Model match

Continental Grand Prix TR Tire Black, BlackChili, 700x30
700x30c
Model match
Other replacement options (4)

Continental Grand Prix TR Tire Black/Transparent, BlackChili, 700x30
700x30c
Model match

Continental Grand Prix 5000 S TR Tire Black/Black Chili, 700x30
700x30c
Model match

Continental Grand Prix 5000 S TR Tire Transparent, Black Chili, 700x30
700x30c
Model match

Challenge Strada Bianca Pro Tubeless Tire Tan, 700x30
700x30c
Replacement option
More parts (6)Fewer parts
FD-R8150

Shimano Ultegra FD-R8150 Di2 Front Derailleur Grey, Braze-On
Model match
RD-R8150, 12sp

Shimano Ultegra RD-R8150 Di2 Rear Derailleur Grey, 12-Speed
Model match
Rotors: Shimano RT-CL700 Center Lock, 160 mm; Levers: Included in the shifter
press fit type for road
steel rail, Nylon Injection, 265 g, Length: 245 mm, Width: 137 mm
FC-R8100, 50x34T Crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm)
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Service essentialsQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Continental 30-622 Grand Prix TR blackCheck: Verify the fitted tire’s size marking and rim type.
- Rear tire
- Continental 30-622 Grand Prix TR blackCheck: Verify the rear size; it may differ from the front.
- Drivetrain
- 12-speedCheck: Match the installed drivetrain family, not just its speed count.
- Bottom bracket / shell
- Shimano SM-BB72-41B, press fit type for roadCheck: Verify shell type and width, crank interface, and spindle length or spacers.
Not confirmed in this record: Seatpost diameter. Check the fitted parts for these details.
Bike-specific inspection checklist 20 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2027 Bianchi Specialissima Ultegra Di2 · Road · Published sizes: 47, 50, 53, 55, 57, 59
Frame and fork
Inspect the frame and fork →Archived: Frame: Bianchi Specialissima PRO carbon, only electronic groupsets, fully internal cable routing, Flat mount disc brake type, UDH compatible, BBPressFit 86.5×41, Max crankset compatibility 58T sizes 47-50-53-55-57-59 · Fork: Bianchi Specialissima carbon, ICR 1.5″ integrated head, Disc brake flat mount 140mm, thru axle 12×100 w/countervail · Carbon Fiber
Drivetrain
Check drivetrain wear →Archived: Shifters: Shimano Ultegra Di2, shifter lever ST-R8170, caliper BR-R8170 · Front derailleur: Shimano Ultegra Di2, FD-R8150 · Rear derailleur: Shimano Ultegra Di2, RD-R8150, 12sp · Crankset: Shimano Ultegra, FC-R8100, 50x34T Crank length: 165 mm (47-50 cm); 170 mm (53-55 cm); 172.5 mm (57-59 cm) · Bottom bracket: Shimano SM-BB72-41B, press fit type for road · Cassette: Shimano 105, CS-R7100 11-34T, 11-12-13-14-15-17-19-21-24-27-30-34T · Chain: Shimano CN-M7100, for HG 12- speed
Brakes
Inspect the brakes →Archived: Brakes: Shimano BR-R8170 Hydraulic disc brake; Rotors: Shimano RT-CL700 Center Lock, 160 mm; Levers: Included in the shifter
Wheels and tires
Check wheels and tires →Archived: Wheels: Bianchi B 49R, 25-622, profile height 49 mm, jbend spokes, ratchet system, tubeless ready, HG11 body · Front tire: Continental 30-622 Grand Prix TR black · Rear tire: Continental 30-622 Grand Prix TR black
Controls and contact points
Archived: Headset: Acros IS52 Integrated Cable Routing · Handlebar: Included in the stem · Seatpost: Bianchi Specialissima seatpost Full Carbon Aero length: 280 mm, 0 offset (47 cm); 300 mm, 0 offset (50-53 cm); 350 mm, 20 mm offset (55-57-59 cm) · Saddle: Prologo Nago R4 PAS, steel rail, Nylon Injection, 265 g, Length: 245 mm, Width: 137 mm
Before and during the test ride
Follow the full used-bike inspection order →Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

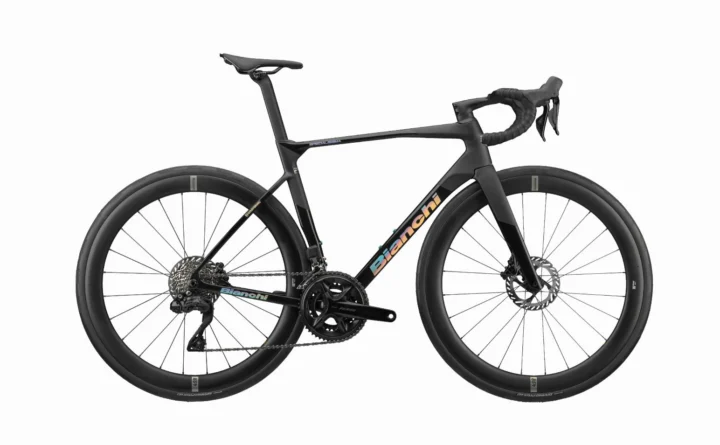

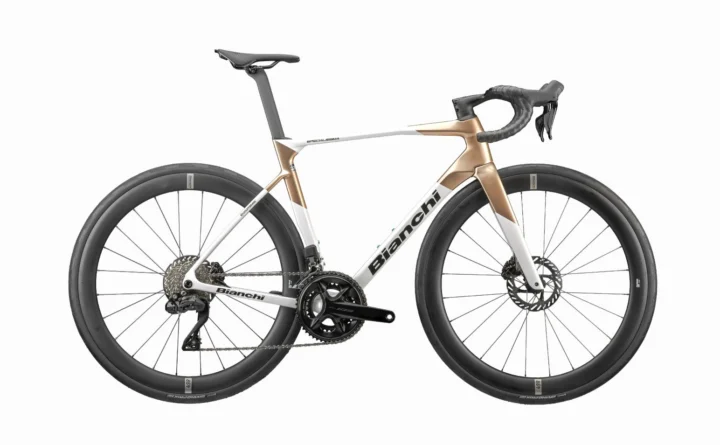

Gallery3 images
