Lowest1.20:1
Highest4.33:1
Total range361%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×28; rear size isn’t listed.
Velopedia Bicycle Archive

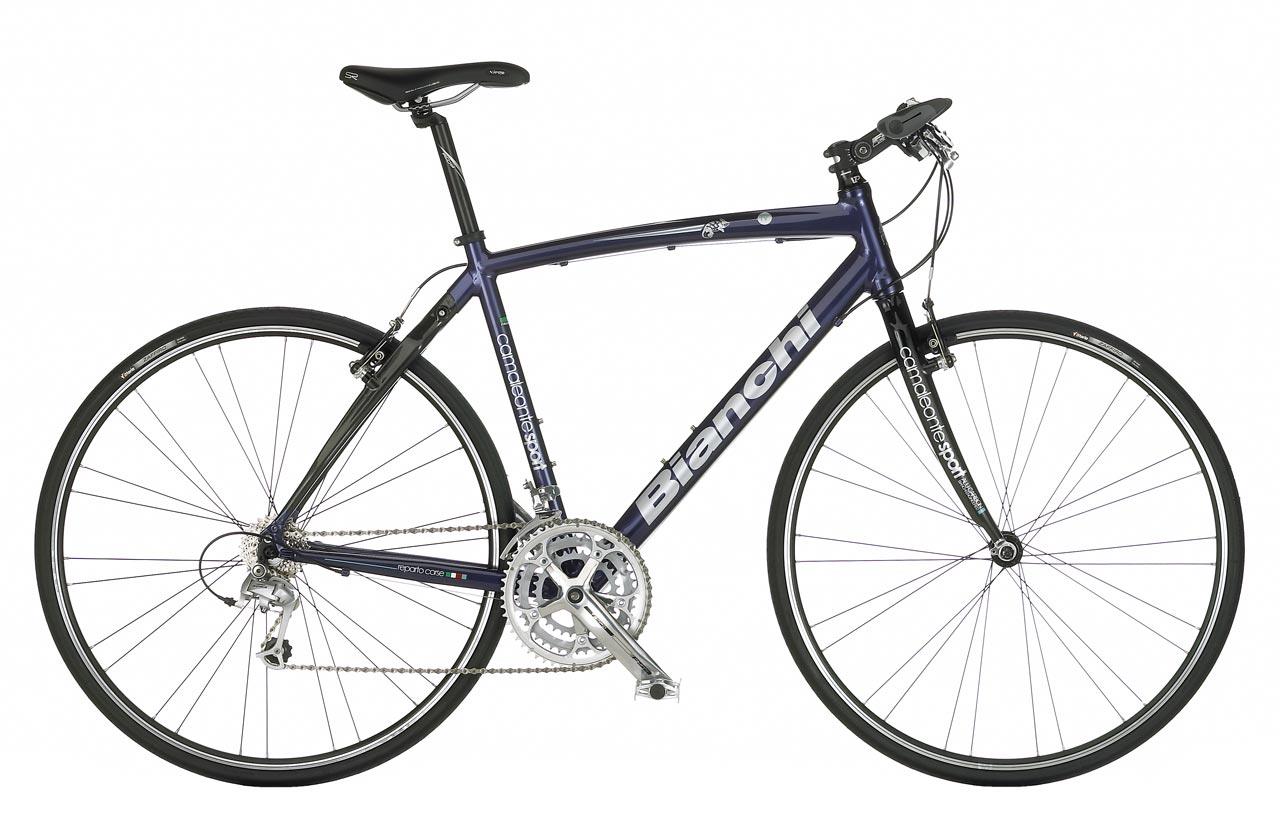

2010 Bianchi Camaleonte 4
Original specifications: Shimano Sora · 9-speed rear derailleur · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #19880- Model year
- 2010
- Category
- City & Commuter
- Original MSRP
- $1,000.00
- Sizes
- 48cm, 53cm, 58cm
- Colors
- UK Radiant Blue
- In this record
- 24 specifications · archived image · original MSRP
Original buildAluminum/carbon fiber · Commuter Mix · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Aluminum/carbon fiber |
| Fork | Bianchi FC7 |
| Fork Material | Carbon/aluminum, aero crown |
Drivetrain
| Component Group | Commuter Mix |
|---|---|
| Shifters | Shimano Tiagra SL-R441-440 |
| Front Derailleur | Shimano FD-R443 Triple |
| Rear Derailleur | Shimano Sora |
| Crankset | FSA Tempo Triple, 52/42/30 teeth |
| Cassette | Shimano Tiagra |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | KMC X9 |
| Pedals | VP-516A |
Brakes
| Brakes | MV-87 Mini V-Brake alloy brakes, Lee Chi XL-136 levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" threadless FSA ZS4-Custom |
|---|---|
| Handlebar | FSA XC-180 Flat |
| Handlebar Extensions | Not included |
| Stem | FSA varius ST-OS-150 Adjustable |
| Saddle | Selle Royal Viper |
| Seatpost | RC SP-222 alloy, 27.2mm diameter |
Wheels & Tires
| Hubs | Front: Joytech A141SB Alloy, Rear: Joytech F192SB Alloy |
|---|---|
| Rims | Mach 1 CFX, 28-hole |
| Front Tire | 700 x 28c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
