Lowest1.20:1
Highest4.17:1
Total range347%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

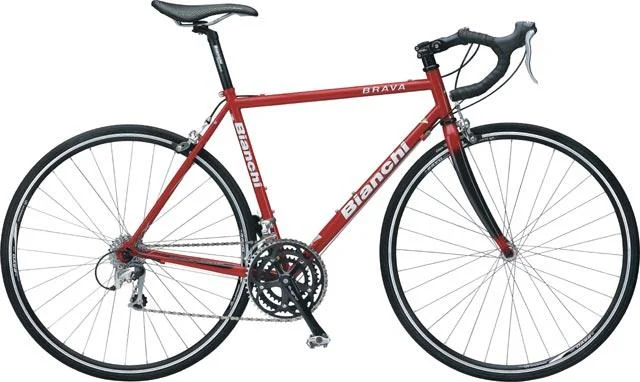

2009 Bianchi Brava
Original specifications: Shimano Sora drivetrain · 700c wheels.
Planning to sell? Draft your listing
At a glance
Archive #17816- Model year
- 2009
- Category
- Road
- Original MSRP
- $1,050.00
- Sizes
- 44cm, 49cm, 52cm, 55cm, 58cm, 61cm
- Colors
- Deep Green
- In this record
- 24 specifications · archived image · original MSRP
Model history 11 other years
Browse other years
Compare side by side
Identification clues
2009 archived details
- Published colors
- Deep Green
- Frame
- Chromoly
- Original equipment
- Shimano Sora
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildChromoly · Shimano Sora · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Chromoly |
| Fork | Bianchi |
| Fork Material | Carbon fiber/aluminum steerer |
Drivetrain
| Component Group | Shimano Sora |
|---|---|
| Shifters | Shimano Sora STI |
| Front Derailleur | Shimano Sora |
| Rear Derailleur | Shimano Sora |
| Crankset | Prowheel Ounce-632 Triple, 30/39/50 teeth |
| Cassette | Shimano HG50 |
| Rear Cogs | 9-speed, 12 - 25 teeth |
| Chain | KMC X9 |
| Pedals | VP-R70 clipless |
Brakes
| Brakes | Bianchi RC alloy brakes, Shimano Sora STI levers |
|---|
Cockpit & Contact Points
| Headset | 1 1/8" VP-A51AE |
|---|---|
| Handlebar | FSA Omega |
| Handlebar Extensions | Not included |
| Stem | Bianchi RC forged alloy |
| Saddle | Selle San Marco Ponza |
| Seatpost | Bianchi RC alloy |
Wheels & Tires
| Hubs | Front: Joytech JY-A141SB, Rear: Joytech JY-F192SB |
|---|---|
| Rims | Jalco DRX4000 |
| Front Tire | 700 x 23c Vittoria Zaffiro |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Vittoria Zaffiro
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Vittoria Zaffiro on eBaySponsored links
Shimano HG50
More parts (4)Fewer parts
Shimano Sora
Shimano Sora
Shimano Sora STI
FSA Omega
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Vittoria Zaffiro
- Drivetrain
- 9-speed
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Bianchi · Carbon fiber/aluminum steerer
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Sora · Shifters: Shimano Sora STI · Front derailleur: Shimano Sora · Rear derailleur: Shimano Sora · Crankset: Prowheel Ounce-632 Triple, 30/39/50 teeth · Cassette: Shimano HG50 · Rear cogs: 9-speed, 12 - 25 teeth · Chain: KMC X9
Brakes
Inspect the brakes →Archived: Brakes: Bianchi RC alloy brakes, Shimano Sora STI levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Jalco DRX4000 · Hubs: Front: Joytech JY-A141SB, Rear: Joytech JY-F192SB · Front tire: 700 x 23c Vittoria Zaffiro
Controls and contact points
Archived: Headset: 1 1/8" VP-A51AE · Handlebar: FSA Omega · Stem: Bianchi RC forged alloy · Seatpost: Bianchi RC alloy · Saddle: Selle San Marco Ponza · Pedals: VP-R70 clipless
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Checking current listings…
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
