Lowest1.11:1
Highest4.33:1
Total range390%
Estimated speed At 90 RPM
Lowest gear
Highest gear
Uses front tire 700C×23; rear size isn’t listed.
Velopedia Bicycle Archive

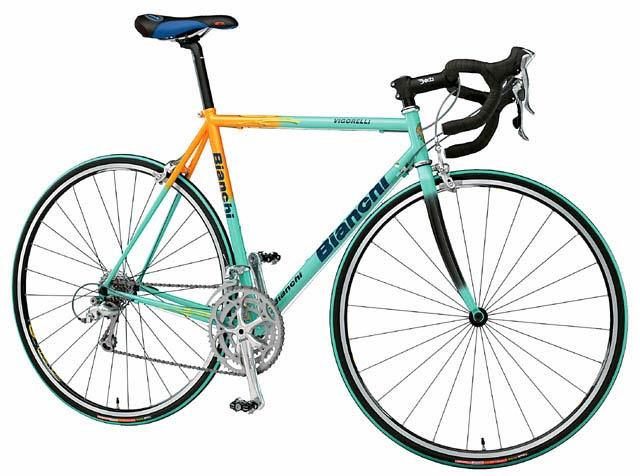

2002 Bianchi Vigorelli
Original specifications: Shimano Ultegra drivetrain · 700c wheels · legacy reference geometry.
Planning to sell? Draft your listing
At a glance
Archive #37564- Model year
- 2002
- Category
- Road
- Original MSRP
- $1,699.99
- Sizes
- 49cm, 51cm, 53cm, 55cm, 57cm, 59cm, 61cm, 63cm
- Colors
- Celeste/Yellow Fade, Electric Yellow
- Geometry
- Legacy reference
- In this record
- 26 specifications · archived image · original MSRP · geometry
Model history 9 other years
Browse other years
Compare side by side
Identification clues
2002 archived details
- Published colors
- Celeste/Yellow Fade, Electric Yellow
- Frame
- Reynolds 631
- Original equipment
- Shimano Ultegra
Clues, not proof of model year. Colors vary and components may have been replaced.
Original buildReynolds 631 · Shimano Ultegra · 700c wheels
Frameset
| Frame Construction | TIG-welded |
|---|---|
| Frame Material | Reynolds 631 |
| Fork | Bianchi carbon |
| Fork Material | Carbon fiber composite w/chromoly steerer, aero crown |
Drivetrain
| Component Group | Shimano Ultegra |
|---|---|
| Shifters | Shimano Ultegra STI Dual Control |
| Front Derailleur | Shimano Ultegra, braze-on |
| Rear Derailleur | Shimano Ultegra |
| Crankset | Shimano Ultegra Triple, 30/42/52 teeth |
| Bottom Bracket | Shimano BB-6500, 118.5mm spindle |
| Rear Cogs | 9-speed, 12 - 27 teeth |
| Chain | Shimano CN-HG53, 1/2 x 3/32" |
| Pedals | Wellgo clipless |
Brakes
| Brakes | Shimano Ultegra Dual Pivot brakes, Shimano Ultegra STI Dual Control levers |
|---|
Cockpit & Contact Points
| Headset | Aheadset AL |
|---|---|
| Handlebar | Deda Elementi 310 |
| Handlebar Extensions | Not included |
| Stem | Deda Elementi Linx |
| Saddle | Vetta/Bianchi Cosmos |
| Seatpost | Bianchi aluminum, 27.2mm diameter |
Wheels & Tires
| Hubs | Mavic Cosmos |
|---|---|
| Rims | Mavic Cosmos, 24-hole/28-hole |
| Spokes | Mavic stainless steel, double-butted |
| Spoke Nipples | Brass nipples |
| Front Tire | 700 x 23c Vittoria Action HSD |
| Wheel Size | 700c wheels |
No specifications match. Try a component name or clear your search.
Geometry
Historical measurements. Frame size unknown.
Reference drawing
Size
Measurement
Measurement
—
Select an available measurement to locate it on the frame.
All geometry measurementsLegacy reference · 6 measurements
| Measurement | Legacy reference |
|---|---|
| Top tube | 560 mm |
| Head-tube angle | 73.5° |
| Seat-tube angle | 73.5° |
| Chainstay / rear center | 407 mm |
| Wheelbase | 990 mm |
| Fork offset / rake | 45 mm |
Frame size not recorded.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM
RPM = pedal turns per minute.
How it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
700 x 23c Vittoria Action HSD
Retailer offers
Vittoria Rubino Pro G2.0 Clincher Tire Black, 700x23
700x23c
Replacement option
Vittoria Action HSD on eBaySponsored links
Bianchi aluminum
27.2mm diameter
Retailer offers
Race Face Ride XC Seatpost Black, 27.2x375mm
Replacement option
More parts (8)Fewer parts
Shimano BB-6500
118.5mm spindle
Shimano Ultegra Triple
30/42/52 teeth
Shimano Ultegra
braze-on
Shimano Ultegra
Shimano Ultegra STI Dual Control
Deda Elementi 310
Deda Elementi Linx
Mavic Cosmos
Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- 700 x 23c Vittoria Action HSD
- Drivetrain
- 9-speed
- Seatpost diameter
- 27.2 mm
- Bottom bracket / shell
- Shimano BB-6500, 118.5mm spindle
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: TIG-welded · Fork: Bianchi carbon · Carbon fiber composite w/chromoly steerer, aero crown
Drivetrain
Check drivetrain wear →Archived: Group: Shimano Ultegra · Shifters: Shimano Ultegra STI Dual Control · Front derailleur: Shimano Ultegra, braze-on · Rear derailleur: Shimano Ultegra · Crankset: Shimano Ultegra Triple, 30/42/52 teeth · Bottom bracket: Shimano BB-6500, 118.5mm spindle · Rear cogs: 9-speed, 12 - 27 teeth · Chain: Shimano CN-HG53, 1/2 x 3/32"
Brakes
Inspect the brakes →Archived: Brakes: Shimano Ultegra Dual Pivot brakes, Shimano Ultegra STI Dual Control levers
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700c wheels · Rims: Mavic Cosmos, 24-hole/28-hole · Hubs: Mavic Cosmos · Front tire: 700 x 23c Vittoria Action HSD
Controls and contact points
Archived: Headset: Aheadset AL · Handlebar: Deda Elementi 310 · Stem: Deda Elementi Linx · Seatpost: Bianchi aluminum, 27.2mm diameter · Saddle: Vetta/Bianchi Cosmos · Pedals: Wellgo clipless
Have you owned this model?Help preserve its real-world history by sharing your owner experience.
Share the details that would help another rider understand how this model fits, rides and holds up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
