2015 Banshee Legend Show

Original specifications: SRAM X01 DH · 7-speed · mechanical rear derailleur · 26 wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1528025
Model year
2015
Category
Mountain
Sizes
M, L, XL
Colors

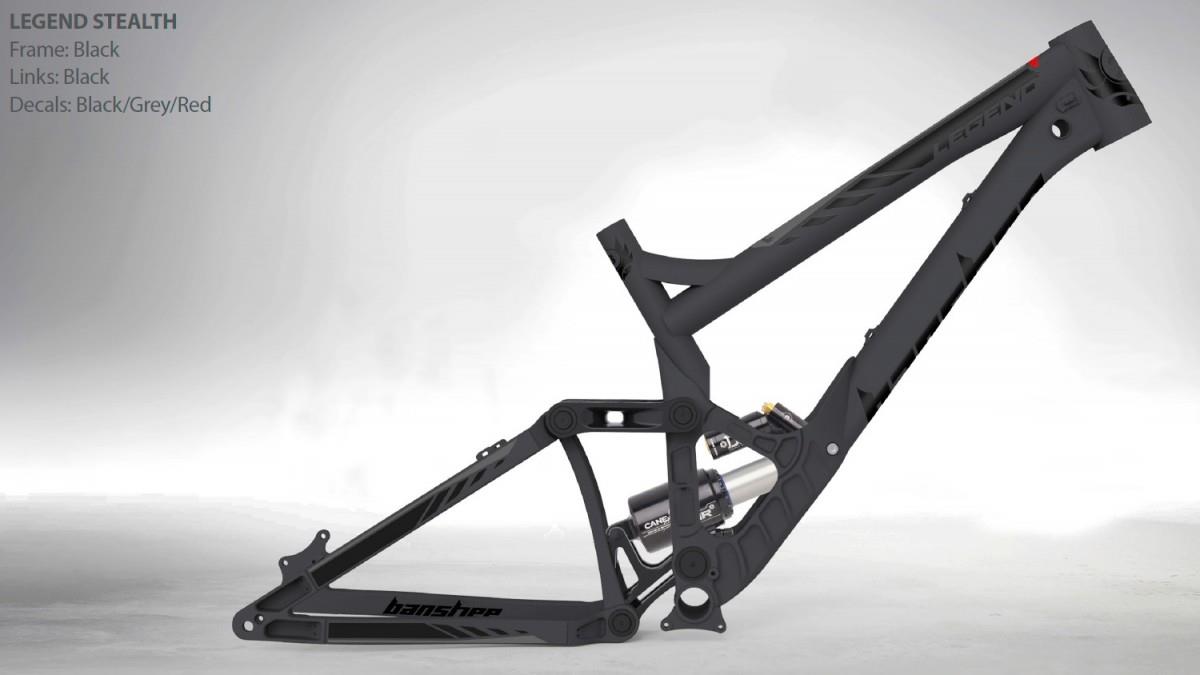

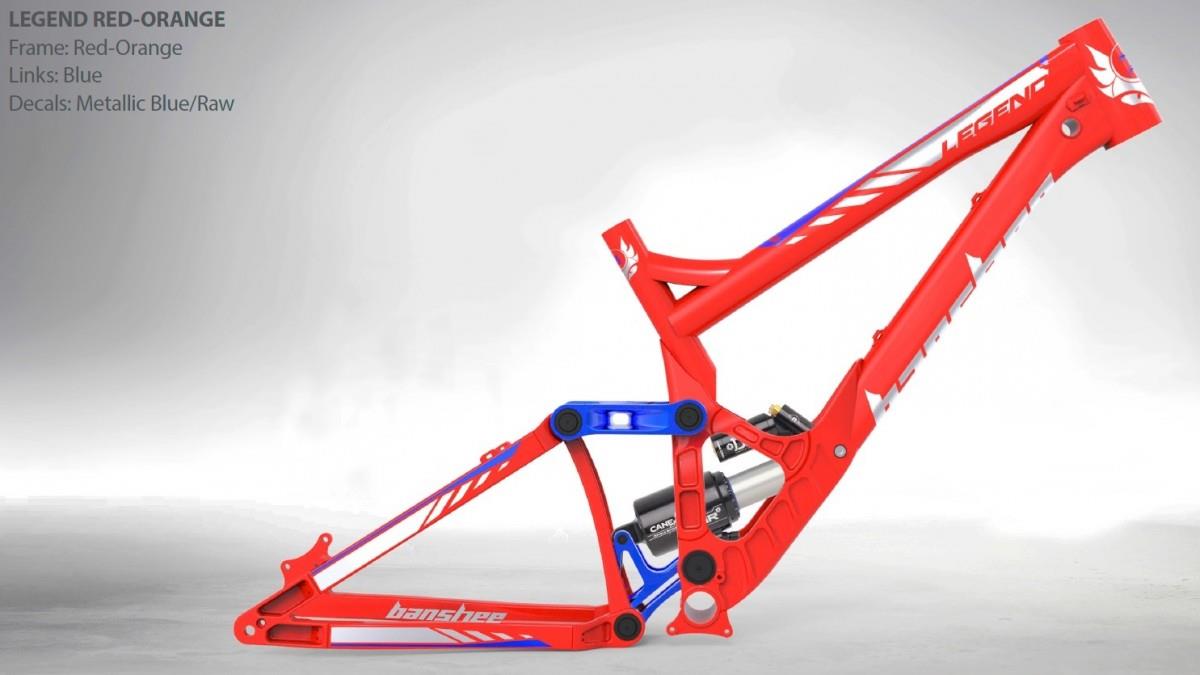

Stealth, Red/Blue, Raw/Black
In this record
21 specifications · 4 archived images
Sponsored affiliate link
Original buildHydroformed 7005 butted aluminum · DH mix · 26

Manufacturer catalog

Published sizes and colors

3 sizes · 3 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

MLXL

Published colors

StealthRed/BlueRaw/Black

Frameset

Frame ConstructionKS-Link 205mm
Frame MaterialHydroformed 7005 butted aluminum
Rear ShockCane Creek DBair CS

Drivetrain

Component GroupDH mix
ShiftersSRAM X01 DH - 7SPD - Trigger
Front DerailleurNone
Rear DerailleurSRAM X01 DH - 7SPD - Short Cage
CranksetRaceFace SixC - 165mm - 36T, e13 LG1 32-36T steel
BB Shell Width83mm
Rear CogsSRAM X01 DH - 7SPD - 10-24
ChainYaban S1010CR Hollowpin

Brakes

BrakesSRAM Guide RS - 200/180mm

Cockpit & Contact Points

HeadsetBanshee Munro Taper 44/56 zero stack
HandlebarRaceFace SixC 35mm - 800mm width - 20mm rise
StemRaceFace SixC 35mm - 800mm width - 20mm rise
SaddleRaceFace Atlas - Railed
SeatpostBanshee 30.9mm

Wheels & Tires

HubsSpank Spike Race 28 150mm
RimsSpank Spike Race 28 150mm
Front TireMaxxis Minion DHF - 26x2.5 - 3C
Wheel Size26

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes36/32T · 10–24T · 7-speed
Lowest1.33:1 Highest3.60:1 Total range270%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Seatpost · Original
Banshee 30.9mm
Retailer offers
Cassette / rear cogs · Original
SRAM X01 DH - 7SPD - 10-24
Front tire · Original
Maxxis Minion DHF - 26x2.5 - 3C Before ordering: Confirm the exact tire width before ordering.
More parts (8)Fewer parts
Saddle · Original
RaceFace Atlas - Railed
Crankset · Original
RaceFace SixC - 165mm - 36T

e13 LG1 32-36T steel

Rear derailleur · Original
SRAM X01 DH - 7SPD - Short Cage
Shifters · Original
SRAM X01 DH - 7SPD - Trigger
Handlebar · Original
RaceFace SixC 35mm - 800mm width - 20mm rise
Stem · Original
RaceFace SixC 35mm - 800mm width - 20mm rise
Rims · Original
Spank Spike Race 28 150mm
Hubs · Original
Spank Spike Race 28 150mm

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Maxxis Minion DHF - 26x2.5 - 3C
Drivetrain
7-speed
Seatpost diameter
30.9 mm
Bottom bracket / shell
83mm
Equipment inspection checks 14 checks based on 6 archived component groups Open equipment checksClose equipment checks
0 of 14 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: KS-Link 205mm · Fork: TBD

Archived: Fork: TBD · Rear shock: Cane Creek DBair CS

Archived: Group: DH mix · Shifters: SRAM X01 DH - 7SPD - Trigger · Rear derailleur: SRAM X01 DH - 7SPD - Short Cage · Crankset: RaceFace SixC - 165mm - 36T, e13 LG1 32-36T steel · Rear cogs: SRAM X01 DH - 7SPD - 10-24 · Chain: Yaban S1010CR Hollowpin

Archived: Brakes: SRAM Guide RS - 200/180mm

Archived: Wheel size: 26 · Rims: Spank Spike Race 28 150mm · Hubs: Spank Spike Race 28 150mm · Front tire: Maxxis Minion DHF - 26x2.5 - 3C

Controls and contact points

Archived: Headset: Banshee Munro Taper 44/56 zero stack · Handlebar: RaceFace SixC 35mm - 800mm width - 20mm rise · Stem: RaceFace SixC 35mm - 800mm width - 20mm rise · Seatpost: Banshee 30.9mm · Saddle: RaceFace Atlas - Railed
