Velopedia Bicycle Archive
At a glance
Archive #1302191- Model year
- 2015
- Category
- Mountain
- Sizes
- S, M, L
- Colors

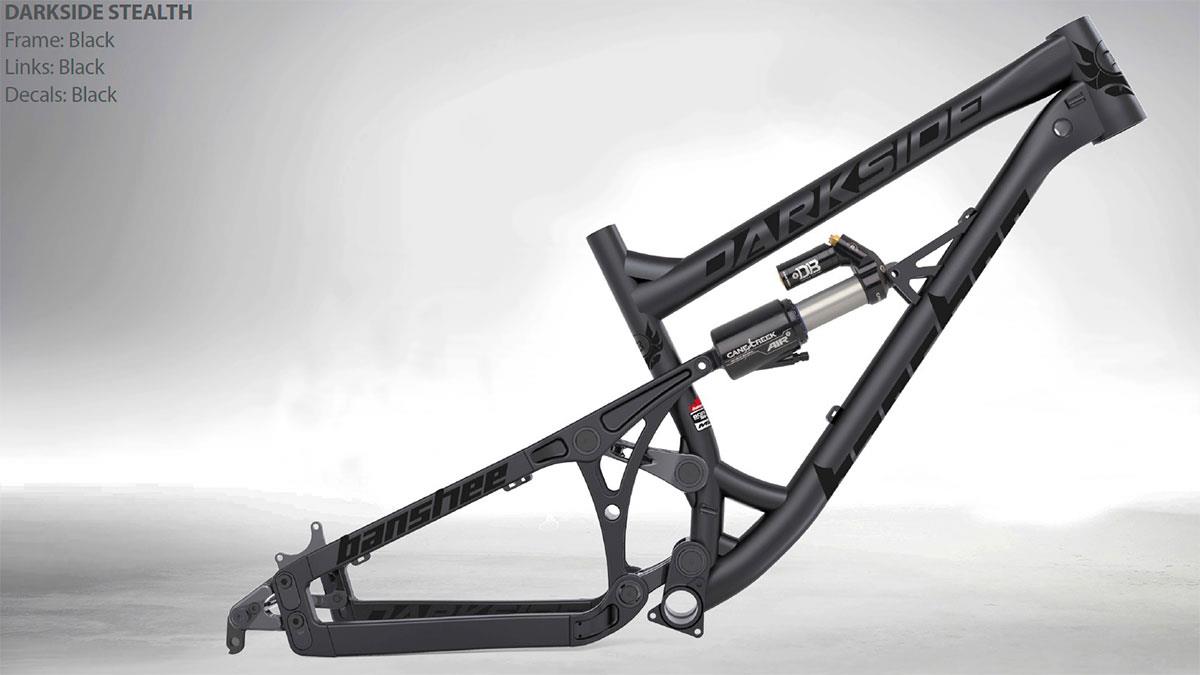

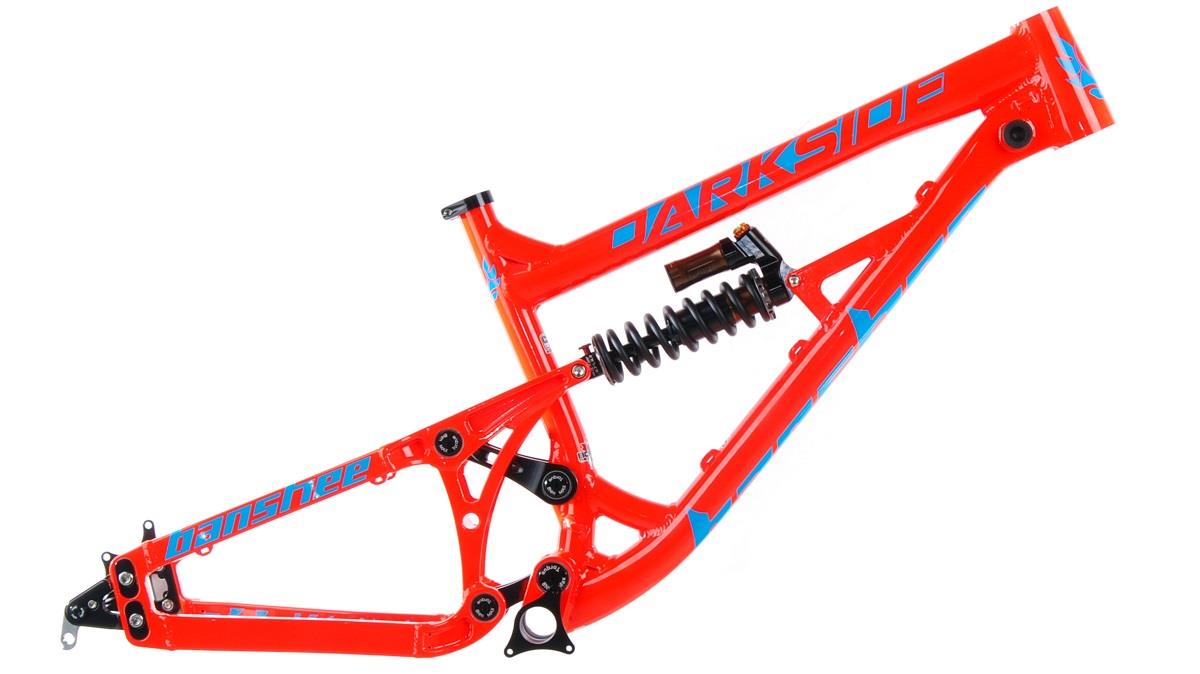

- Stealth, Red/Blue, Raw/Blue
- In this record
- 17 specifications · 4 archived images
Original buildHydroformed 7005 AL tubes
Frameset
| Frame Construction | 180mm of KS-Link suspension optimised for playful DH / park riding, 26 x 2.5 or 650b x 2.5 (with 650b dropouts) |
|---|---|
| Frame Material | Hydroformed 7005 AL tubes |
| Rear Shock | Cane Creek DBair CS |
Drivetrain
| Shifters | SRAM X01 DH - 7SPD - Trigger |
|---|---|
| Rear Derailleur | SRAM X01 DH - 7SPD - 10-24 |
| Crankset | RaceFace SixC - 165mm - 36T, e13 LG1 32-36T steel |
| Rear Cogs | SRAM X01 DH - 7SPD - 10-24 |
| Chain | Yaban S1010CR Hollowpin |
Brakes
| Brakes | SRAM Guide RS - 200/180mm |
|---|
Cockpit & Contact Points
| Headset | Banshee Munro Taper 44/56 zero stack |
|---|---|
| Handlebar | Race Face SixC 35mm - 800mm width - 20mm rise |
| Stem | RaceFace Atlas Direct Mount 35 - 50mm |
| Saddle | RaceFace Atlas - Railed |
| Seatpost | Banshee 30.9mm |
Wheels & Tires
| Hubs | Spank Spike Race 28 150mm |
|---|---|
| Rims | Spank Spike Race 28 150mm |
| Front Tire | Maxxis Minion DHF - 26x2.5 - 3C |
No specifications match. Try a component name or clear your search.
Gearing
Lower gears help on climbs. Higher gears suit higher speeds.
RPM = pedal turns per minute.
Speed unavailable: wheel or tire size is missing or unclear.
Add your rear tire size to calculate speedHow it works
Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.
Speeds are estimates from tire size and pedal cadence. Actual speeds vary.
Try your current gearingChanged tires or gears? Calculate your setup.
Your changes apply to this calculation. The archived build stays unchanged.
Gearing results
| Measure | Original | Your setup |
|---|---|---|
| Lowest ratio | — | — |
| Highest ratio | — | — |
| Total range | — | — |
| Lowest-gear speed | — | — |
| Highest-gear speed | — | — |
Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.
Parts & serviceability
Find replacement parts
Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Race Face Ride XC Seatpost Black, 30.9x375mm
Replacement option
More parts (7)Fewer parts
e13 LG1 32-36T steel
Based on the original build. Check fit and installed parts before ordering.
Parts and service referenceQuick reference before buying parts
Archived specifications for reference. Check the fitted parts before ordering.
- Front tire
- Maxxis Minion DHF - 26x2.5 - 3C
- Drivetrain
- 7-speed
- Seatpost diameter
- 30.9 mm
Equipment inspection checks 14 checks based on 6 archived component groups Open equipment checksClose equipment checks
Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.
Full used-bike inspection guide →
Frame and fork
Inspect the frame and fork →Archived: Frame: 180mm of KS-Link suspension optimised for playful DH / park riding, 26 x 2.5 or 650b x 2.5 (with 650b dropouts) · Fork: TBD
Suspension
Evaluate the suspension →Archived: Fork: TBD · Rear shock: Cane Creek DBair CS
Drivetrain
Check drivetrain wear →Archived: Shifters: SRAM X01 DH - 7SPD - Trigger · Rear derailleur: SRAM X01 DH - 7SPD - 10-24 · Crankset: RaceFace SixC - 165mm - 36T, e13 LG1 32-36T steel · Rear cogs: SRAM X01 DH - 7SPD - 10-24 · Chain: Yaban S1010CR Hollowpin
Brakes
Inspect the brakes →Archived: Brakes: SRAM Guide RS - 200/180mm
Wheels and tires
Check wheels and tires →Archived: Rims: Spank Spike Race 28 150mm · Hubs: Spank Spike Race 28 150mm · Front tire: Maxxis Minion DHF - 26x2.5 - 3C
Controls and contact points
Archived: Headset: Banshee Munro Taper 44/56 zero stack · Handlebar: Race Face SixC 35mm - 800mm width - 20mm rise · Stem: RaceFace Atlas Direct Mount 35 - 50mm · Seatpost: Banshee 30.9mm · Saddle: RaceFace Atlas - Railed
Have you owned this model?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.
Gallery4 images
No recent price sample is available for this bike. Check eBay for matching listings.
Find this bike on eBay
Search eBay US; check the model year, size and installed components. We may earn a commission from purchases.
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
