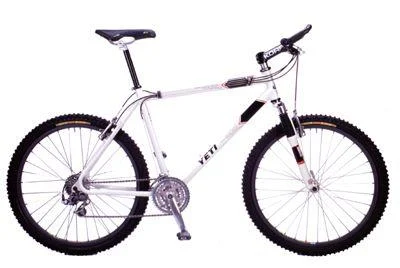

1998 Yeti F.R.O. Alloy LXT

Original specifications: Shimano Deore XT/LX drivetrain · 26" wheels · 25 lb published weight.

Share owner experience

Selling this bike? Create a shareable bike record

At a glance

Model year
1998
Category
Mountain
Original MSRP
$1,899.95
Sizes
14", 16", 17.5", 19", 20"
Colors
Creme, Red
Weight
25 lb
Geometry
Legacy reference
In this record
27 specifications · archived image · original MSRP · geometry
Archive ID
77654
Original build7005 custom-butted aluminum · Shimano Deore XT/LX · 26" wheels

Manufacturer catalog

Published sizes and colors

5 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

14"16"17.5"19"20"

Published colors

CremeRed

Frameset

Frame ConstructionTIG-welded
Frame Material7005 custom-butted aluminum
ForkRock Shox Judy XC
Fork MaterialAluminum/magnesium, triple-clamp crown

Drivetrain

Component GroupShimano Deore XT/LX
ShiftersShimano Deore XT RapidFire SL
Front DerailleurShimano Deore XT top-swing, top-pull/clamp-on 31.8mm
Rear DerailleurShimano Deore XT SGS
CranksetShimano Deore LX, 22/32/44 teeth
Bottom BracketShimano BB-UN51, 107mm spindle
BB Shell Width73mm English
Rear Cogs8-speed, 11 - 30 teeth
ChainShimano CN-HG70, 1/2 x 3/32"
PedalsTime ATAC

Brakes

BrakesShimano Deore LX V-Brake brakes, Shimano Deore XT levers

Cockpit & Contact Points

Headset1 1/8" threadless Tioga
HandlebarYeti Alloy
Handlebar ExtensionsScott aluminum
StemKore Lite
SaddleFi'zi:k Nisene
SeatpostKore Lite, 28.6mm diameter

Wheels & Tires

HubsShimano Deore LX
RimsMavic X222, 32-hole
SpokesDT stainless steel, 2.0mm straight gauge
Spoke NipplesBrass nipples
Front Tire26 x 1.95" Yeti Factor
Wheel Size26" wheels

Geometry

Legacy reference · 6 measurements

Model-level measurements; the frame size was not recorded. Use these as a historical reference, not for size-specific fit.

All geometry measurementsLegacy reference · 6 measurements
MeasurementLegacy reference
Top tube574 mm
Head-tube angle71°
Seat-tube angle73°
Chainstay / rear center429.3 mm
Wheelbase1066.8 mm
Fork offset / rake40.6 mm

The preserved source contains one model-level geometry set without an identified frame size.

Gearing

Chainring ÷ rear sprocket

Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.

Published build44/32/22T · 11–30T · 8-speed
Lowest0.73:1 Highest4.00:1 Total range545%
Campaign

Parts & serviceability

Find replacement parts

Original specifications
Chain · Original
Shimano CN-HG70, 1/2 x 3/32"
Retailer offers · Affiliate links
Brake pads · Original
Shimano Deore LX V-Brake brakes, Shimano Deore XT levers
Bottom bracket · Original
Shimano BB-UN51, 107mm spindle
More parts (6)
Crankset · Original
Shimano Deore LX, 22/32/44 teeth
Rear derailleur · Original
Shimano Deore XT SGS Search: Shimano Deore XT 8-speed mechanical rear derailleur
Shifters · Original
Shimano Deore XT RapidFire SL Search: Shimano Deore XT 8-speed mechanical shifter
Seatpost · Original
Kore Lite, 28.6mm diameter
Rims · Original
Mavic X222, 32-hole
Hubs · Original
Shimano Deore LX

Based on the original build. Confirm the model, size and fit before ordering; installed parts may differ. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases.

Bike-specific inspection checklist 20 checks based on 6 archived component groups Open checklistClose checklist
0 of 20 checked Progress stays in this browser for this bike.

This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.

Archived: 1998 Yeti F.R.O. Alloy LXT · Mountain bike, front suspension · Published sizes: 14", 16", 17.5", 19", 20"

Archived: Frame: TIG-welded · Fork: Rock Shox Judy XC · Aluminum/magnesium, triple-clamp crown

Archived: Fork: Rock Shox Judy XC

Archived: Group: Shimano Deore XT/LX · Shifters: Shimano Deore XT RapidFire SL · Front derailleur: Shimano Deore XT top-swing, top-pull/clamp-on 31.8mm · Rear derailleur: Shimano Deore XT SGS · Crankset: Shimano Deore LX, 22/32/44 teeth · Bottom bracket: Shimano BB-UN51, 107mm spindle · Rear cogs: 8-speed, 11 - 30 teeth · Chain: Shimano CN-HG70, 1/2 x 3/32"

Archived: Brakes: Shimano Deore LX V-Brake brakes, Shimano Deore XT levers

Archived: Wheel size: 26" wheels · Rims: Mavic X222, 32-hole · Hubs: Shimano Deore LX · Front tire: 26 x 1.95" Yeti Factor

Controls and contact points

Archived: Headset: 1 1/8" threadless Tioga · Handlebar: Yeti Alloy · Stem: Kore Lite · Seatpost: Kore Lite, 28.6mm diameter · Saddle: Fi'zi:k Nisene · Pedals: Time ATAC
