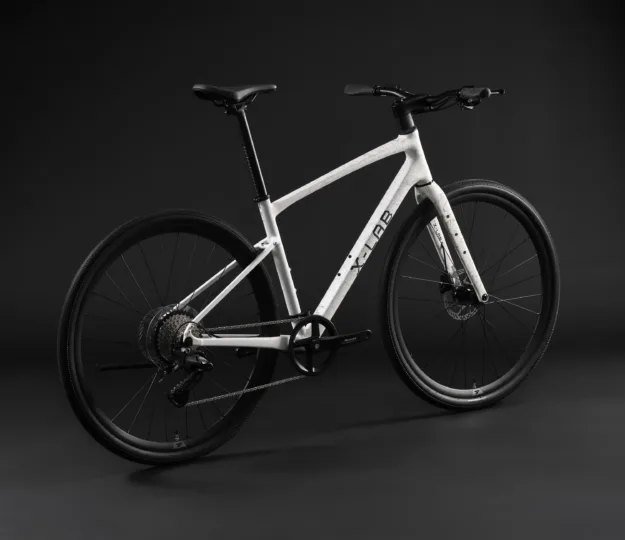

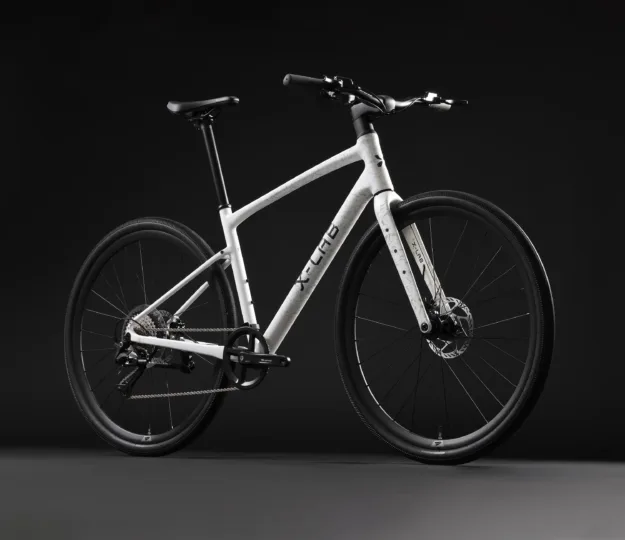

2026 X-LAB SP3
Original manufacturer specifications including CUES drivetrain, 700C wheels, 10.71 kg / 23.61 lbs (Size L) published weight.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- City & Commuter
- Original MSRP
- $799.00
- Sizes
- S, M, L, XL
- Colors
- Frostbite, Morning Moss
- Weight
- 10.71 kg / 23.61 lbs (Size L)
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 21 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001312
Frameset
| Frame Construction | XDS X6 Alloy Frame |
|---|---|
| Frame Material | Aluminum |

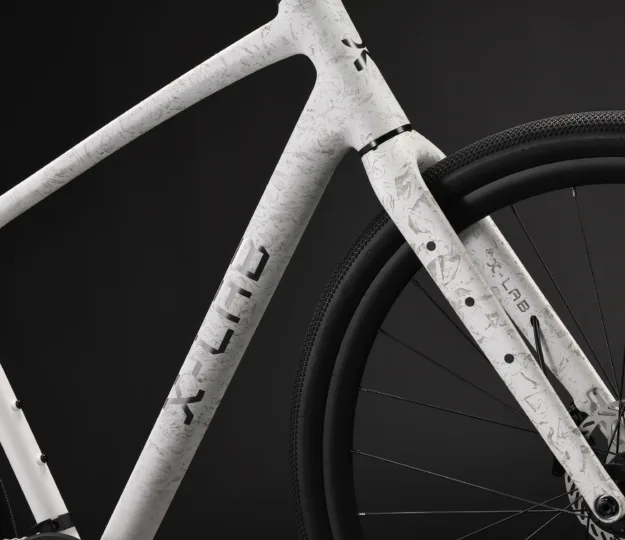

| Fork | XDS Carbon Fork, 100x12mm Thru-axle |
| Fork Material | Carbon |
Drivetrain
| Component Group | Cues |
|---|---|
| Shifters | Shimano Cues SL-U6000-10R |
| Rear Derailleur | Shimano Cues RD-U6020, 10-Speed |
| Crankset | Branta Alloy Square Taper Crankset, 170mm, 40T; Narrow-wide Teeth |
| Bottom Bracket | BSA Square Taper |
| Cassette | CS-M6010C 10-speed, 11-40T |
| Chain | TEC GT-Glide |
Brakes
| Brakes | Branta C515 Hydraulic Disc Brake, 3 Finger Lever, 2 Piston Caliper; Rotors: Branta AR14, F:160mm R:160mm |
|---|
Cockpit & Contact Points

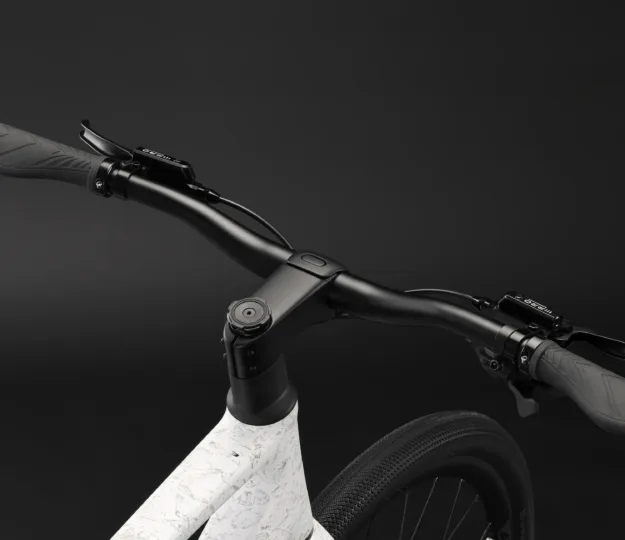

| Handlebar | Branta X6 Alloy Handlebar, 25mm Rise, 9 Degree Back Sweep |
|---|---|
| Stem | Branta Alloy Stem, 90mm, 0 Degree Rise |
| Saddle | Branta SRX+ |

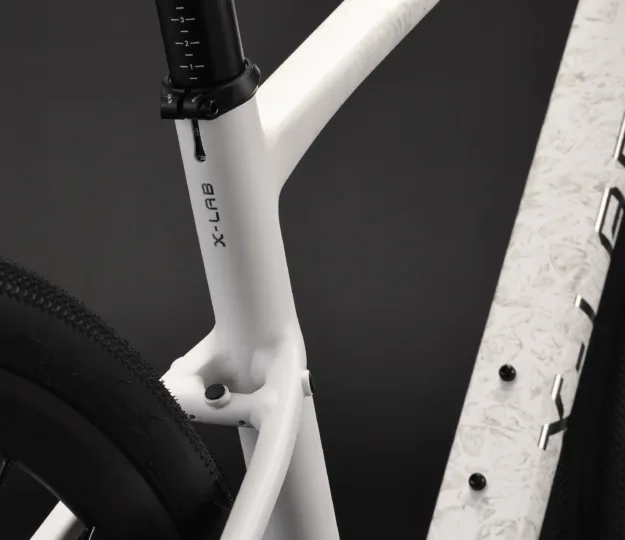

| Seatpost | XDS Alloy 31.6mm Seatpost, 400mm Length, 12mm Setback |
Wheels & Tires
| Wheels | Branta A27 Regular, Alloy Rim |
|---|---|
| Front Tire | Branta R240, 700x40C, 30TPI; Max Tire Clearance: 45C w/ Full-Wrapped Fender |
| Rear Tire | Branta R240, 700x40C, 30TPI; Max Tire Clearance: 45C w/ Full-Wrapped Fender |
| Wheel Size | 700C |
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | S | M | L | XL |
|---|---|---|---|---|
| Seat tube | 405 mm | 457 mm | 508 mm | 559 mm |
| Top tube | 546 mm | 574 mm | 602 mm | 622 mm |
| Head tube | 140 mm | 165 mm | 190 mm | 215 mm |
| Head-tube angle | 70° | 71° | 72° | 73° |
| Seat-tube angle | 75° | 74° | 74° | 73° |
| Chainstay / rear center | 445 mm | 445 mm | 445 mm | 445 mm |
| Wheelbase | 1054 mm | 1072 mm | 1089 mm | 1092 mm |
| Bottom-bracket drop | 72 mm | 72 mm | 72 mm | 72 mm |
| Reach | 390 mm | 405 mm | 420 mm | 420 mm |
| Stack | 563 mm | 589 mm | 615 mm | 643 mm |
| Standover height | 727 mm | 768 mm | 809 mm | 850 mm |
| Front center | 619 mm | 637 mm | 654 mm | 657 mm |
| Fork length / axle-to-crown | 398 mm | 398 mm | 398 mm | 398 mm |
Geometry source: X-LAB first-party Basic geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
S geometry
Archive context: Its wheelbase of 1054 mm sits toward the shorter end. The chainstay of 445 mm sits toward the shorter rear-center end. The seat angle of 75° sits toward the steeper end.
Compared with 27 distinct city & commuter geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze S geometry M geometry
Archive context: Its bottom-bracket drop of 72 mm sits toward the deeper-drop end. The chainstay of 445 mm sits toward the shorter rear-center end. Its stack of 589 mm sits toward the lower end.
Compared with 29 distinct city & commuter geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze M geometry L geometry
Archive context: Its wheelbase of 1089 mm sits toward the shorter end. The chainstay of 445 mm sits toward the shorter rear-center end. The head angle of 72° sits toward the steeper end.
Compared with 28 distinct city & commuter geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze L geometry XL geometry
Archive context: The head angle of 73° sits toward the steeper end. Its wheelbase of 1092 mm sits toward the shorter end. The chainstay of 445 mm sits toward the shorter rear-center end.
Compared with 16 distinct city & commuter geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Want to go deeper?Open this exact published size and configuration in the Velopedia Geometry Analyzer, then complete any measurements the manufacturer did not provide.
Analyze XL geometry Parts & serviceability
Find replacement parts
Shimano Cues RD-U6020, 10-Speed
Interpreted as Shimano CUES · 10-speed Exact archived model
Shimano Cues SL-U6000-10R
Interpreted as Shimano CUES · 10-speed Exact archived model
31.6 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-bike inspection
If you’re buying this bike used
Before any test ride: both brakes should stop the bike firmly and release cleanly; both wheels should run true and be securely attached; tires should have no casing damage; and the headset, handlebar, stem, cranks and pedals should have no looseness or play.
Follow the full used-bike inspection order →- FrameLook closely for dents and hairline cracks around welds, the head tube and bottom-bracket area. Cosmetic scratches matter less than a change in shape or a crack line.Inspect the frame and fork →
- BrakesBoth levers should feel firm and return cleanly. Check for fluid around the levers and calipers, inspect pad thickness and contamination, and look for worn or bent rotors.Inspect the brakes →
- DrivetrainShift through every gear under light load and measure chain wear. Confirm that the shifter, derailleur, chain and cassette belong to the same 10-speed system.Check drivetrain wear →
- Wheels & tiresSpin both wheels and watch the rims for side-to-side or vertical movement. Check for dents, cracks, loose or uneven spokes and hub play, then inspect both tire casings for cuts, cracking or exposed threads.Check wheels and tires →
- Bottom bracketTurn the cranks slowly, feel for rough bearings and check for side-to-side play. Creaking under load deserves investigation but does not identify the source by itself.Inspect the bottom bracket and shell →
Bike-specific inspection checklist 19 checks based on 5 archived component groups Open checklistClose checklist
This checklist uses the archived equipment for this bike. It cannot confirm the condition, service history or later component changes of the example in front of you.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 X-LAB SP3 · City/Commuter · Published sizes: S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: XDS X6 Alloy Frame · Fork: XDS Carbon Fork, 100x12mm Thru-axle · Carbon
Drivetrain
Check drivetrain wear →Archived: Group: CUES · Shifters: Shimano Cues SL-U6000-10R · Rear derailleur: Shimano Cues RD-U6020, 10-Speed · Crankset: Branta Alloy Square Taper Crankset, 170mm, 40T; Narrow-wide Teeth · Bottom bracket: BSA Square Taper · Cassette: CS-M6010C 10-speed, 11-40T · Chain: TEC GT-Glide
Brakes
Inspect the brakes →Archived: Brakes: Branta C515 Hydraulic Disc Brake, 3 Finger Lever, 2 Piston Caliper; Rotors: Branta AR14, F:160mm R:160mm
Wheels and tires
Check wheels and tires →Archived: Wheel size: 700C · Wheels: Branta A27 Regular, Alloy Rim · Front tire: Branta R240, 700x40C, 30TPI; Max Tire Clearance: 45C w/ Full-Wrapped Fender · Rear tire: Branta R240, 700x40C, 30TPI; Max Tire Clearance: 45C w/ Full-Wrapped Fender
Controls and contact points
Archived: Handlebar: Branta X6 Alloy Handlebar, 25mm Rise, 9 Degree Back Sweep · Stem: Branta Alloy Stem, 90mm, 0 Degree Rise · Seatpost: XDS Alloy 31.6mm Seatpost, 400mm Length, 12mm Setback · Saddle: Branta SRX+
Before and during the test ride
Follow the full used-bike inspection order →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
