2026 X-LAB AD9 Frameset
Original manufacturer specifications including 1.58 kg / 3.48 lbs (Size M, w/o headsets) published weight, geometry for 5 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Road
- Original MSRP
- $2,999.00
- Sizes
- XS, S, M, L, XL
- Colors
- Astana Team Edition, Hawkeye Purple/Black
- Weight
- 1.58 kg / 3.48 lbs (Size M, w/o headsets)
- Geometry
- 5 manufacturer sizes · Geometry context
- Record coverage
- 6 preserved details · 8 archived images · original MSRP · preserved geometry
- Archive ID
- 900001319
Frameset
| Frame Construction | XDS Carbon Frame, Toray T-1100, UDH Compatible |
|---|---|
| Frame Material | Carbon |
| Fork | XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle |
| Fork Material | Carbon |
Cockpit & Contact Points
| Seatpost | XDS Carbon Seatpost, Aero Profile |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Seat tube | 470 mm | 495 mm | 515 mm | 540 mm | 565 mm |
| Top tube | 504 mm | 523 mm | 540 mm | 559 mm | 579 mm |
| Head tube | 105 mm | 118 mm | 130 mm | 148 mm | 171 mm |
| Head-tube angle | 71° | 72° | 73° | 73° | 73° |
| Seat-tube angle | 75° | 75° | 74° | 74° | 73° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 970 mm | 978 mm | 982 mm | 992 mm | 1007 mm |
| Bottom-bracket drop | 72 mm | 72 mm | 70 mm | 70 mm | 70 mm |
| Reach | 371 mm | 379 mm | 387 mm | 395 mm | 405 mm |
| Stack | 505 mm | 520 mm | 534 mm | 553 mm | 575 mm |
| Standover height | 753 mm | 774 mm | 792 mm | 811 mm | 834 mm |
| Fork offset / rake | 48 mm | 48 mm | 43 mm | 43 mm | 43 mm |
| Front center | 575 mm | 582 mm | 583 mm | 592 mm | 607 mm |
| Trail | 67 mm | 63 mm | 64 mm | 61 mm | 59 mm |
Geometry source: X-LAB first-party Basic geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its wheelbase of 970 mm sits toward the shorter end. Its stack of 505 mm sits somewhat lower than typical. The seat angle of 75° sits somewhat steeper than typical.
Compared with 64 distinct road geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.S geometry
Archive context: The seat angle of 75° sits toward the steeper end. Its trail of 63 mm sits somewhat higher than typical. Its wheelbase of 978 mm sits somewhat shorter than typical.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.M geometry
Archive context: Its trail of 64 mm sits toward the higher-trail end. Its stack of 534 mm sits toward the lower end. Its wheelbase of 982 mm sits toward the shorter end.
Compared with 88 distinct road geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.L geometry
Archive context: Its wheelbase of 992 mm sits toward the shorter end. Its stack of 553 mm sits toward the lower end. The seat angle of 74° sits toward the steeper end.
Compared with 77 distinct road geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.XL geometry
Archive context: Its stack of 575 mm sits toward the lower end. Its wheelbase of 1007 mm sits somewhat shorter than typical. The chainstay of 410 mm sits somewhat shorter than typical.
Compared with 63 distinct road geometries in the XL-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 X-LAB AD9 Frameset · Road · Published sizes: XS, S, M, L, XL
Frame and fork
Inspect the frame and fork →Archived: Frame: XDS Carbon Frame, Toray T-1100, UDH Compatible · Fork: XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle · Carbon
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

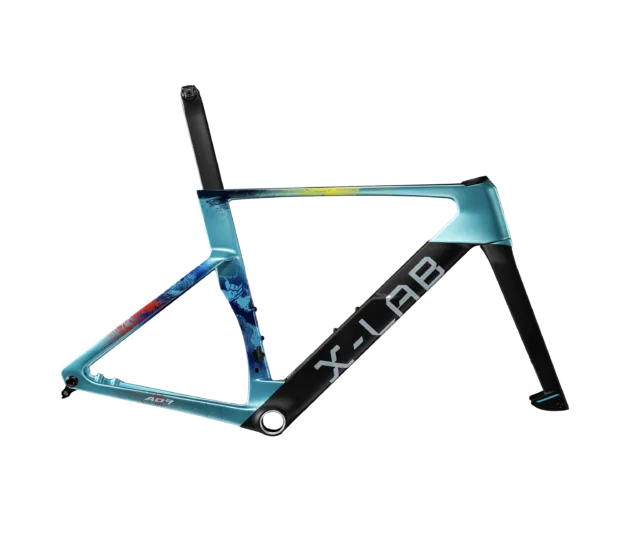

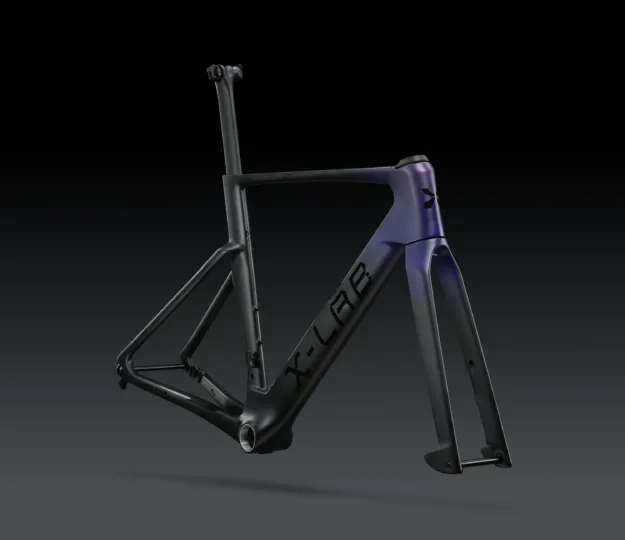

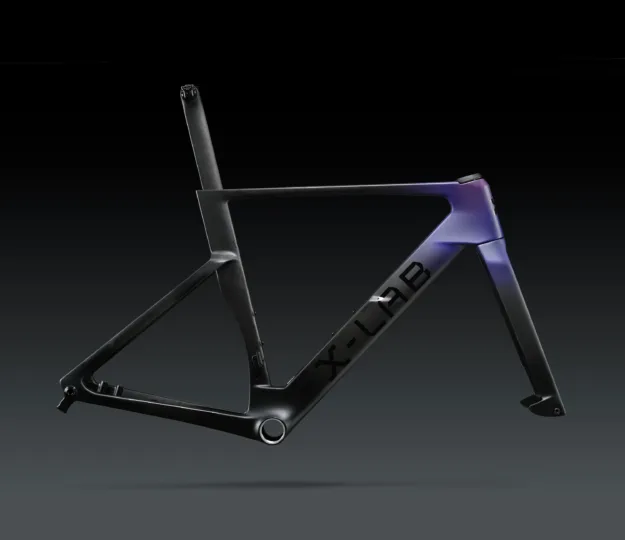

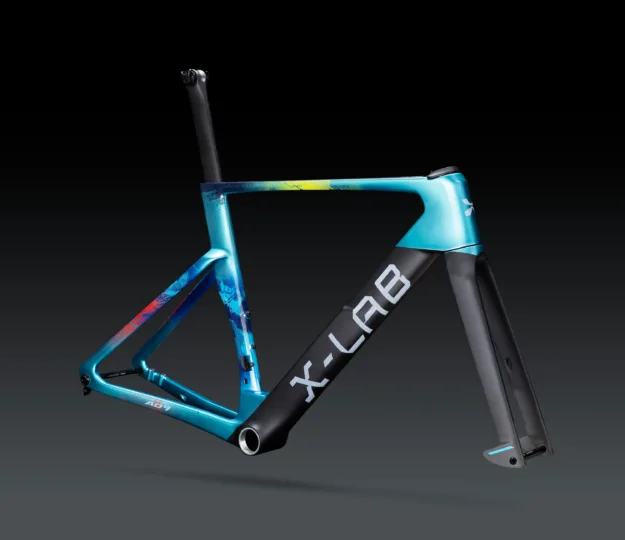

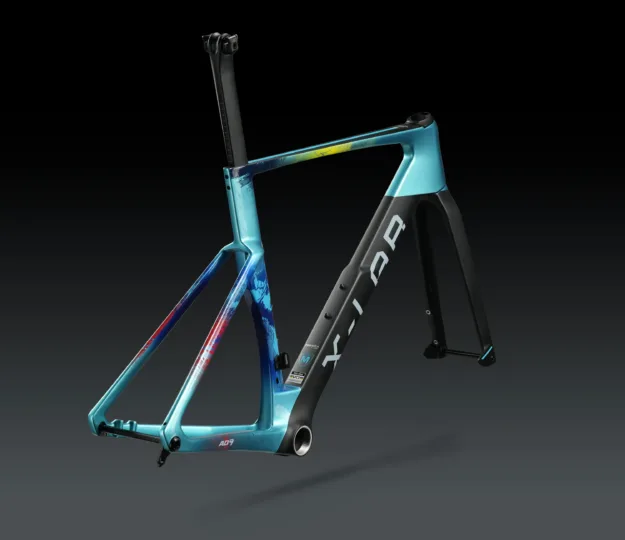

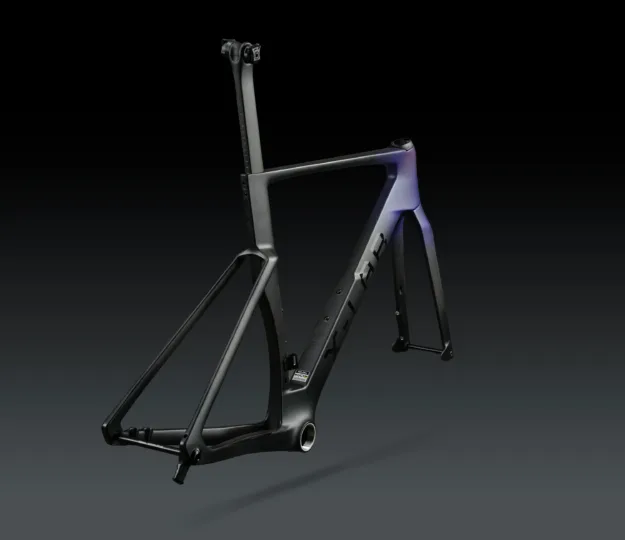

Gallery
