2026 X-LAB RT9 Frameset
Original manufacturer specifications including 1.14 kg / 2.51 lbs (Size M, w/o headsets) published weight, geometry for 4 published sizes.
Selling this bike? Create a shareable bike record
What Velopedia knows
- Model year
- 2026
- Category
- Road
- Original MSRP
- $3,499.00
- Sizes
- XS, S, M, L
- Colors
- Shadowbox
- Weight
- 1.14 kg / 2.51 lbs (Size M, w/o headsets)
- Geometry
- 4 manufacturer sizes · Geometry context
- Record coverage
- 6 preserved details · 4 archived images · original MSRP · preserved geometry
- Archive ID
- 900001313
Frameset
| Frame Construction | XDS Carbon Frame, Toray T-1100 + M40X, UDH Compatible |
|---|---|
| Frame Material | Carbon |
| Fork | XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle |
| Fork Material | Carbon |
Cockpit & Contact Points
| Seatpost | XDS Carbon Seatpost, 27.2mm |
|---|
Size-specific frame data
Geometry
Manufacturer-published geometry normalized for consistent archival comparison. Effective top tube and reach remain separate measurements because they describe different aspects of fit.
| Measurement | XS | S | M | L |
|---|---|---|---|---|
| Seat tube | 430 mm | 460 mm | 480 mm | 500 mm |
| Top tube | 498 mm | 520 mm | 540 mm | 563 mm |
| Head tube | 110 mm | 120 mm | 137 mm | 157 mm |
| Head-tube angle | 70.5° | 71.7° | 73° | 73.5° |
| Seat-tube angle | 75° | 74.2° | 74° | 73.5° |
| Chainstay / rear center | 410 mm | 410 mm | 410 mm | 410 mm |
| Wheelbase | 972.5 mm | 977 mm | 978 mm | 992 mm |
| Bottom-bracket drop | 74 mm | 74 mm | 72 mm | 72 mm |
| Reach | 362 mm | 372 mm | 384 mm | 396 mm |
| Stack | 510 mm | 525 mm | 543 mm | 567 mm |
| Standover height | 704 mm | 728 mm | 750 mm | 769 mm |
| Front center | 574 mm | 578 mm | 578 mm | 592 mm |
Geometry source: X-LAB first-party Basic geometry table ↗ Measurements can vary by configuration, wheel size, or flip-chip position where noted by the manufacturer.
Geometry tools
Analyze a published size
XS geometry
Archive context: Its reach of 362 mm sits toward the shorter end. The head angle of 70.5° sits toward the slacker end. Its wheelbase of 972.5 mm sits toward the shorter end.
Compared with 64 distinct road geometries in the XS-equivalent size cohort from model years 2024–2027 in the Velopedia archive.S geometry
Archive context: Its wheelbase of 977 mm sits toward the shorter end. Its reach of 372 mm sits somewhat shorter than typical. The chainstay of 410 mm sits somewhat shorter than typical.
Compared with 88 distinct road geometries in the Small-equivalent size cohort from model years 2024–2027 in the Velopedia archive.M geometry
Archive context: Its wheelbase of 978 mm sits toward the shorter end. The head angle of 73° sits toward the steeper end. Its stack of 543 mm sits somewhat lower than typical.
Compared with 88 distinct road geometries in the Medium-equivalent size cohort from model years 2024–2027 in the Velopedia archive.L geometry
Archive context: The head angle of 73.5° sits toward the steeper end. Its wheelbase of 992 mm sits toward the shorter end. The chainstay of 410 mm sits somewhat shorter than typical.
Compared with 77 distinct road geometries in the Large-equivalent size cohort from model years 2024–2027 in the Velopedia archive.Parts & serviceability
Find replacement parts
27.2 mm seatpost
Published diameter — verify length and setback
Searches use the archived manufacturer specification, not the components currently installed on a particular bicycle. Confirm the exact model, size and fit before ordering. As an Amazon Associate I earn from qualifying purchases. Velopedia may also earn from qualifying eBay purchases. Velopedia may also earn from qualifying retailer purchases. Commercial relationships do not influence Archive specifications or analysis.
Used-frameset inspection
If you’re buying this frameset used
Before buying: confirm the serial number and exact model, inspect frame and fork alignment, and inventory every included axle, hanger, clamp, headset part, cable guide and proprietary fitting.
Inspect the frame and fork →- FrameInspect the frame in bright light, especially around the head tube, bottom bracket, chainstays and clamped areas. Look for cracks, ripples, crushed sections or signs of a previous impact.Inspect the frame and fork →
- Included hardwareInventory every axle, hanger, clamp, headset part, cable guide, frame plug and proprietary fitting included with the frameset. Confirm replacement availability before treating a missing small part as insignificant.
- AlignmentSight along the frame and fork from several directions. Confirm that the fork, rear dropouts, head tube and other visible interfaces appear straight; professional measurement is appropriate when alignment cannot be established visually.
Used-frameset inspection checklist 14 universal checks for a record with limited component data Open checklistClose checklist
The archived record does not contain enough component detail for a fully specification-informed frameset checklist. Use these universal checks on the frameset in front of you, inventory every included part and confirm exact interfaces before choosing components.
Identity and fit
Follow the full used-bike inspection order →Archived: 2026 X-LAB RT9 Frameset · Road · Published sizes: XS, S, M, L
Frame and fork
Inspect the frame and fork →Archived: Frame: XDS Carbon Frame, Toray T-1100 + M40X, UDH Compatible · Fork: XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle · Carbon
Alignment
Inspect the frame and fork →Frame interfaces
Inspect the bottom bracket and shell →Before accepting the frameset
Inspect the frame and fork →Build relationships are limited to the archived manufacturer specifications. Confirm exact fit and standards before ordering parts or performing service.
Have you owned this bike?Help document firsthand fit, ride and maintenance details that may no longer be available.
This archive record has limited published detail. Share what would help another rider understand how this model fit, rode and held up over time. Velopedia reviews every contribution before publication.
Already contributed? Send me a fresh private edit link
For privacy, Velopedia shows the same confirmation whether or not an experience exists.

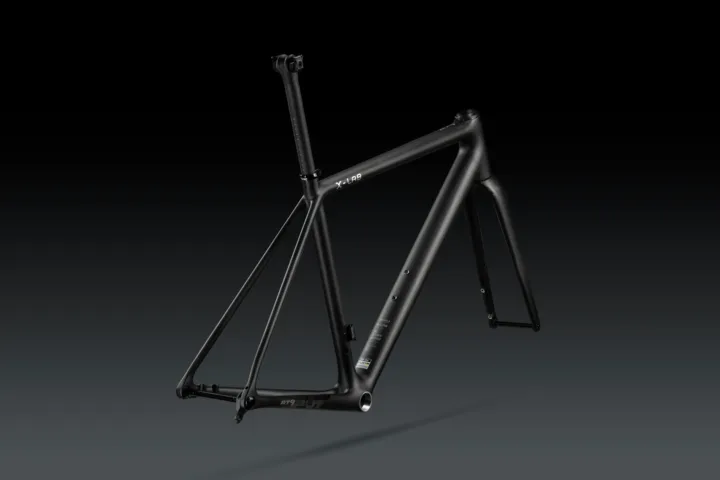

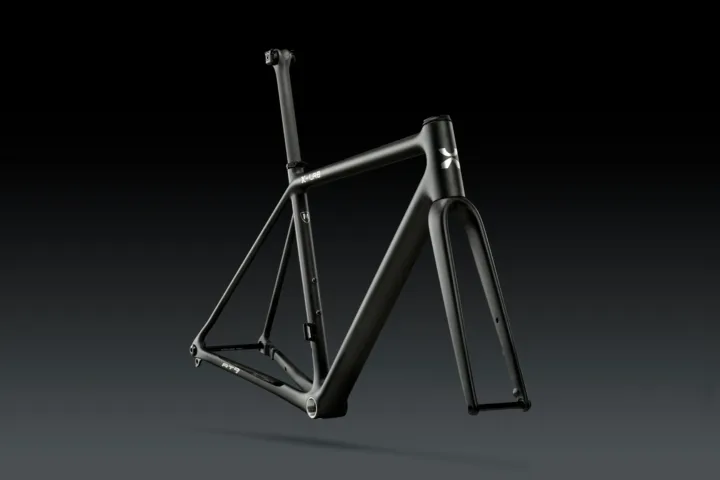

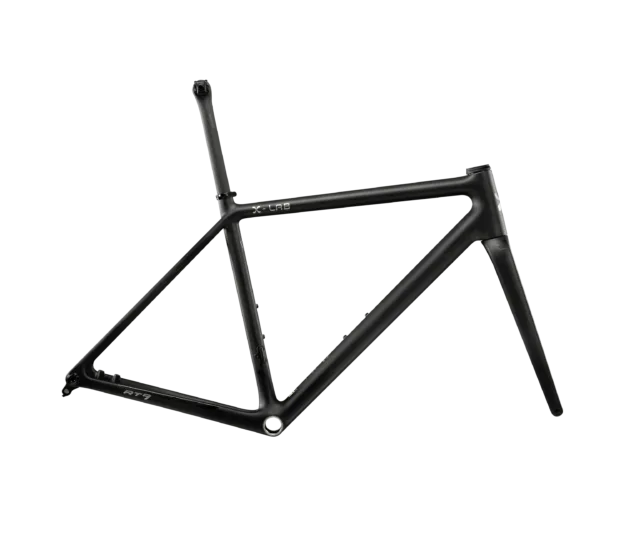

Gallery
