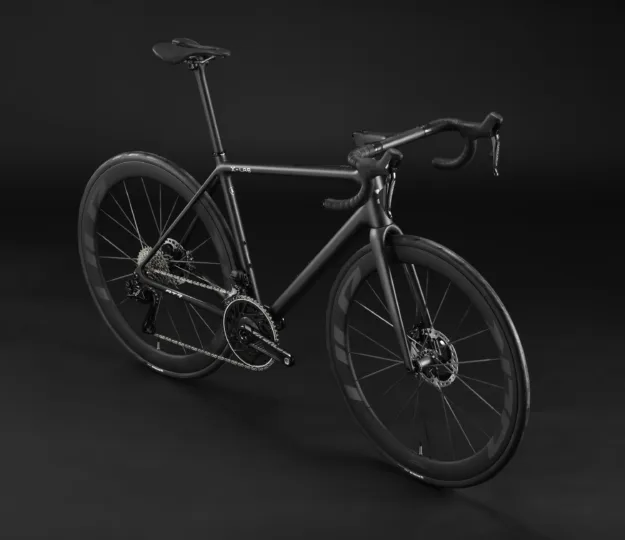

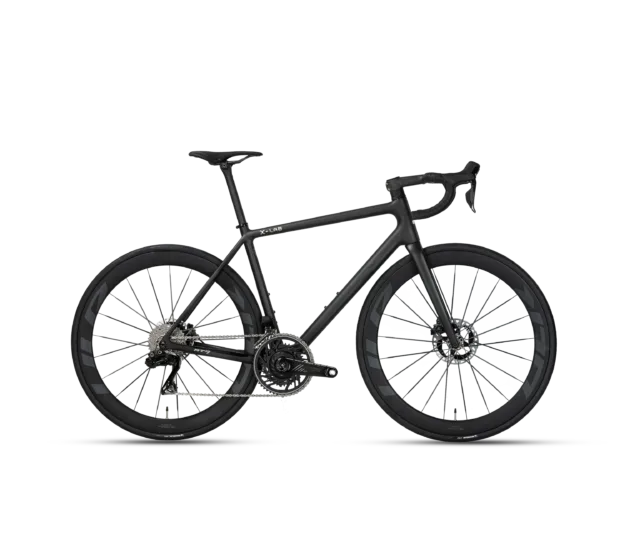

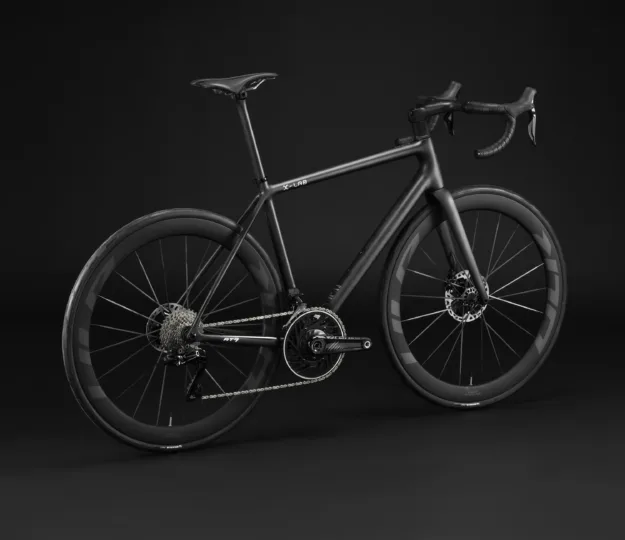

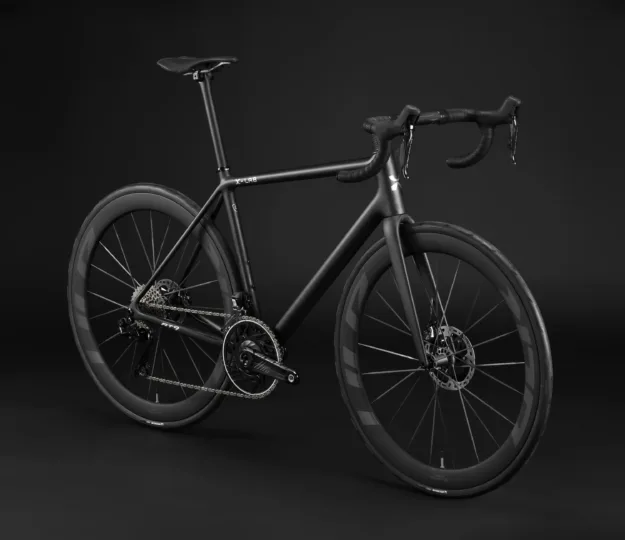

2026 X-LAB RT9

Original specifications: DURA-ACE Di2 drivetrain · 700C wheels · 6.20 kg / 13.64 lbs (Size L) published weight.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #900001314
Model year
2026
Category
Road
Original MSRP
$9,150.00
Sizes
XS, S, M, L
Colors
Shadowbox
Weight
6.20 kg / 13.64 lbs (Size L)
Geometry
4 manufacturer sizes
In this record
21 specifications · 8 archived images · original MSRP · geometry
Campaign
Original buildCarbon · Dura-Ace Di2 · 700C

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSML

Published colors

Shadowbox

Frameset

Frame ConstructionXDS Carbon Frame, Toray T-1100 + M40X, UDH Compatible
Frame MaterialCarbon
ForkXDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle
Fork MaterialCarbon

Drivetrain

Component GroupDura-Ace Di2

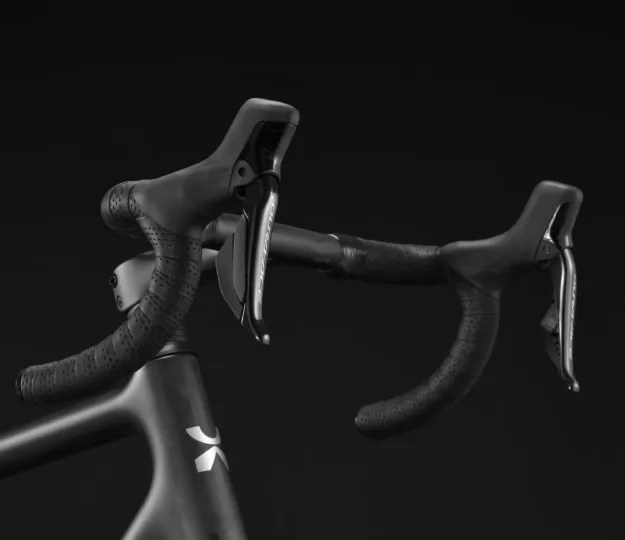

ShiftersShimano Dura-Ace ST-R9270 Di2
Front DerailleurShimano Dura-Ace FD-R9250 Di2
Rear DerailleurShimano Dura-Ace RD-R9250 Di2
CranksetBranta Carbon Power Meter Crankset, 52-36T; 29mm Alloy Spindle, Apple Find My Anti-Theft Technology
Bottom BracketBSA 29mm
CassetteShimano Dura-Ace CS-R9200, 11-34T
ChainShimano CN-M9100

Brakes

BrakesShimano Dura-Ace BR-R9270; Rotors: Shimano SM-MT900, F:160mm R:140mm

Cockpit & Contact Points

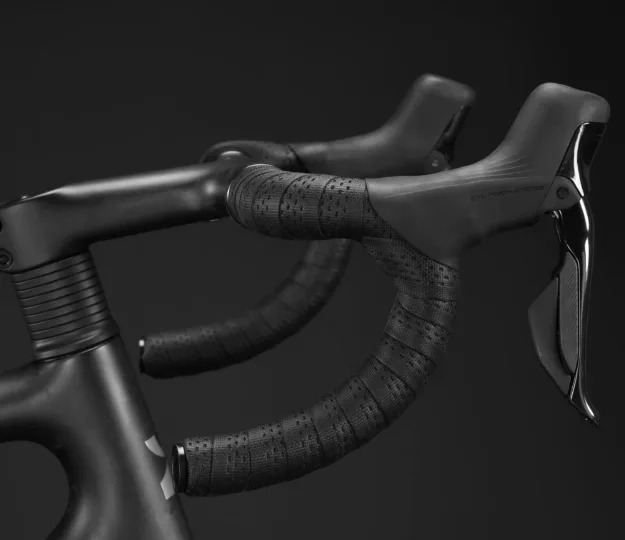

HandlebarBranta Carbon Integrated
StemBranta Carbon Integrated
SaddleSelle Italia SLR Boost, Carbon Rails
SeatpostXDS Carbon Seatpost, 27.2mm

Wheels & Tires

WheelsBranta C50 ULR, Carbon Rims & Spokes, Ceramic Bearings
Front TireMichelin Pro 5 700x28C; Max Tire Clearance: 30C
Rear TireMichelin Pro 5 700x28C; Max Tire Clearance: 30C
Wheel Size700C

Geometry

4 sizes · 12 measurements

Frame measurements by size.

All geometry measurements4 sizes · 12 measurements
MeasurementXSSML
Seat tube430 mm460 mm480 mm500 mm
Top tube498 mm520 mm540 mm563 mm
Head tube110 mm120 mm137 mm157 mm
Head-tube angle70.5°71.7°73°73.5°
Seat-tube angle75°74.2°74°73.5°
Chainstay / rear center410 mm410 mm410 mm410 mm
Wheelbase972.5 mm977 mm978 mm992 mm
Bottom-bracket drop74 mm74 mm72 mm72 mm
Reach362 mm372 mm384 mm396 mm
Stack510 mm525 mm543 mm567 mm
Standover height704 mm728 mm750 mm769 mm
Front center574 mm578 mm578 mm592 mm

Dimensions as recorded.

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

All published sizes52/36T · 11–34T
Lowest1.06:1 Highest4.73:1 Total range446%

Speed unavailable: wheel or tire size is missing or unclear.

Add your rear tire size to calculate speed
How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications
Cassette · Original
Shimano Dura-Ace CS-R9200

11-34T

Retailer offers
Front tire · Original
Michelin Pro 5 700x28C

Max Tire Clearance: 30C

Retailer offers
Seatpost · Original
XDS Carbon Seatpost

27.2mm

Retailer offers
More parts (6)Fewer parts
Chain · Original
Shimano CN-M9100
Brake pads · Original
Shimano Dura-Ace BR-R9270

Rotors: Shimano SM-MT900, F:160mm R:140mm

Saddle · Original
Selle Italia SLR Boost

Carbon Rails

Front derailleur · Original
Shimano Dura-Ace FD-R9250 Di2
Rear derailleur · Original
Shimano Dura-Ace RD-R9250 Di2
Shifters · Original
Shimano Dura-Ace ST-R9270 Di2

Based on the original build. Check fit and installed parts before ordering. Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Michelin Pro 5 700x28C; Max Tire Clearance: 30C
Rear tire
Michelin Pro 5 700x28C; Max Tire Clearance: 30C
Drivetrain
DURA-ACE Di2
Seatpost diameter
27.2 mm
Bottom bracket / shell
BSA 29mm
Equipment inspection checks 10 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 10 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: XDS Carbon Frame, Toray T-1100 + M40X, UDH Compatible · Fork: XDS Carbon Fork, Toray T-1100, 100x12mm Thru-axle · Carbon

Archived: Group: DURA-ACE Di2 · Shifters: Shimano Dura-Ace ST-R9270 Di2 · Front derailleur: Shimano Dura-Ace FD-R9250 Di2 · Rear derailleur: Shimano Dura-Ace RD-R9250 Di2 · Crankset: Branta Carbon Power Meter Crankset, 52-36T; 29mm Alloy Spindle, Apple Find My Anti-Theft Technology · Bottom bracket: BSA 29mm · Cassette: Shimano Dura-Ace CS-R9200, 11-34T · Chain: Shimano CN-M9100

Archived: Brakes: Shimano Dura-Ace BR-R9270; Rotors: Shimano SM-MT900, F:160mm R:140mm

Archived: Wheel size: 700C · Wheels: Branta C50 ULR, Carbon Rims & Spokes, Ceramic Bearings · Front tire: Michelin Pro 5 700x28C; Max Tire Clearance: 30C · Rear tire: Michelin Pro 5 700x28C; Max Tire Clearance: 30C

Controls and contact points

Archived: Handlebar: Branta Carbon Integrated · Stem: Branta Carbon Integrated · Seatpost: XDS Carbon Seatpost, 27.2mm · Saddle: Selle Italia SLR Boost, Carbon Rails
