2027 Trek Rail+ 5 Gen 5

Archived: 2027 Trek Rail+ 5 Gen 5 · Electric-assist · Published sizes: S, M, L, XL

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: Aluminum · Fork: RockShox Psylo Silver RC, Solo Air, Motion Control, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel

• Look for dents or shape changes and inspect the edges of welds around the head tube, bottom bracket, seat cluster and suspension mounts for hairline cracks.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: RockShox Psylo Silver RC, Solo Air, Motion Control, tapered steerer, 44mm offset, Boost 110, 15mm Maxle Stealth, 160mm travel · Rear shock: RockShox Deluxe Select, 205mm x 65mm

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

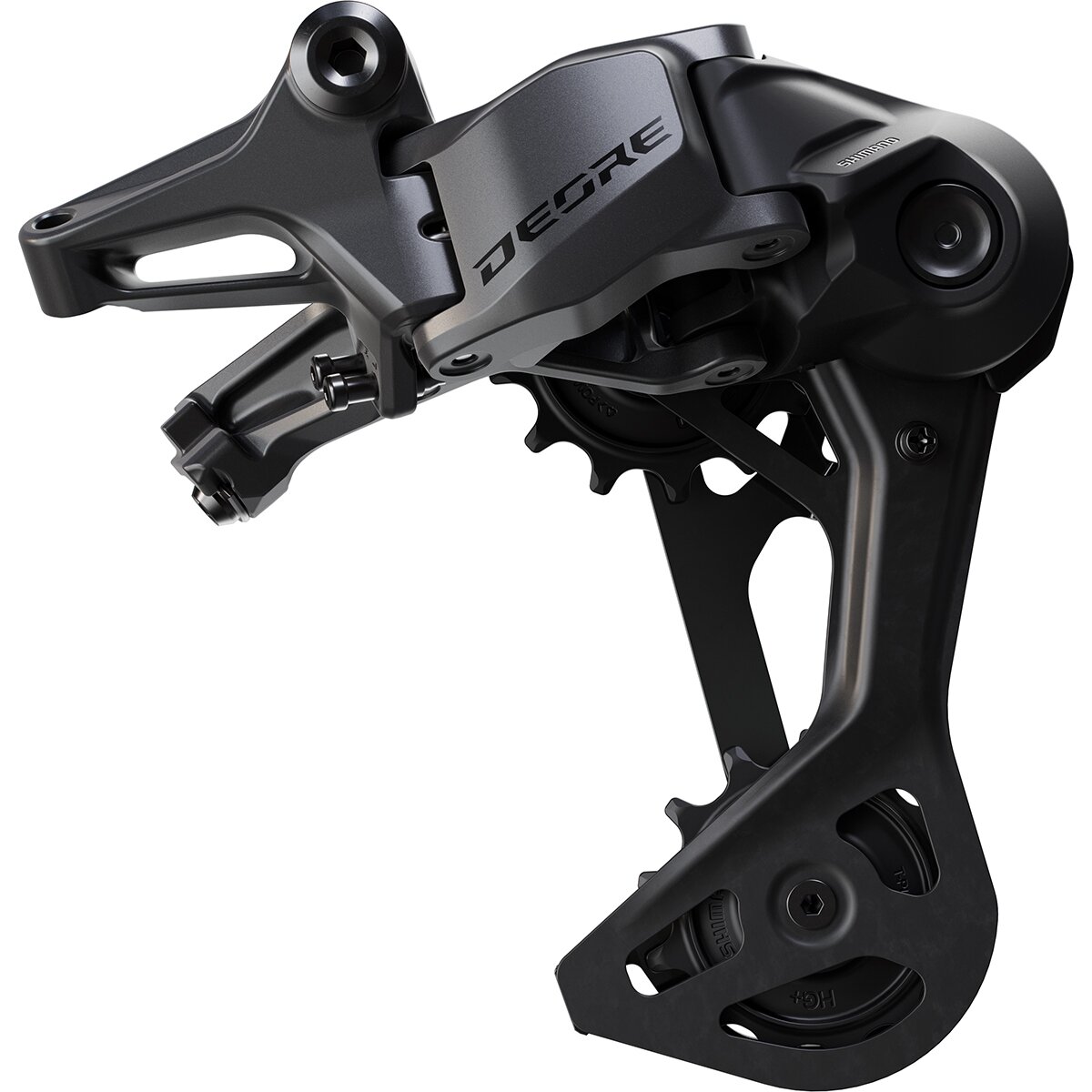

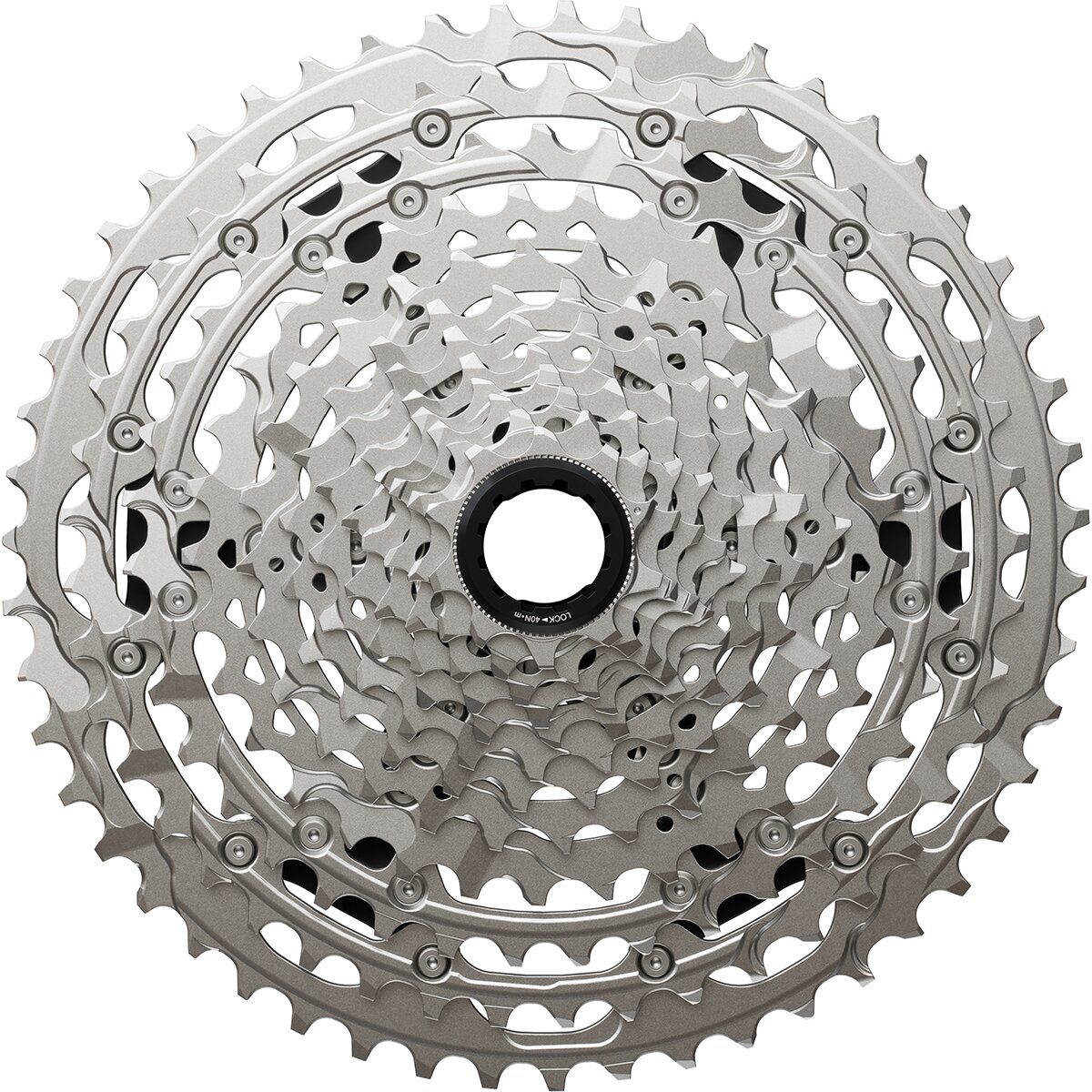

Archived: Group: Shimano Deore M6200, 12-speed · Shifters: Shimano Deore M6200 · Rear derailleur: Shimano Deore M8200, long cage · Crankset: FSA alloy, 160mm length · Cassette: Shimano M6200, 10-51, 12 speed · Chain: Shimano Deore M6100, 12 speed

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 caliper

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheels: Bontrager Line TLR 30 · Rims: S: Bontrager Line TLR 30, 27.5'' Tubeless Ready, 28-hole, Presta valve / M, L, XL: Bontrager Line TLR 30, 29'' Tubeless Ready, 28-hole, Presta valve · Hubs: (F) Shimano TC500 alloy, centerlock, 110x15mm thru axle / (R) Shimano TC500 alloy, centerlock, 148x12mm thru axle · Front tire: S: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 27.5x2.40'' / M, L, XL: Bontrager Gunnison Elite XR, Tubeless Ready, wire bead, 60 tpi, 29x2.40'' · Rear tire: S: Bontrager G…

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance. This record indicates different front and rear wheel diameters, so verify each tire at its correct end.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: 1-1/8'' threadless, sealed cartridge bearings · Handlebar: Bontrager Comp, alloy, 31.8mm, 40mm rise, 780mm width · Stem: Bontrager Comp, 31.8mm, 7 degree, 35mm length · Seatpost: S: TranzX JD-YSI34, 150mm travel, internal routing, 34.9mm / M, L, XL: TranzX JD-YSI34, 170mm travel, internal routing, 34.9mm · Saddle: Bontrager Verse P3, steel rails · Pedals: Nylon platform

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

Archived: Trek Rail+ 5 Gen 5 · electric-assist identification

• Inspect the battery case, mount, lock and electrical contacts for cracks, impact, corrosion, swelling, overheating marks or looseness. Confirm the battery charges normally.
• Confirm the correct charger, battery keys and removable system parts are included. Check charger cables and connectors for damage or improvised repairs.
• Power the system on from cold, check the display for warnings, and test every assist mode. Assistance should engage and stop predictably without intermittent cutouts or abnormal motor noise.
• Ask for available battery-health, cycle-count, diagnostic and firmware records. Confirm that replacement batteries and system support remain available before agreeing on value.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
