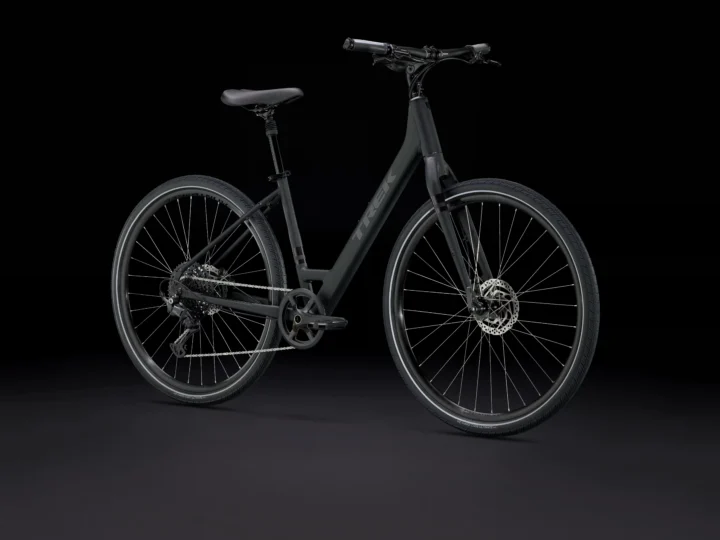

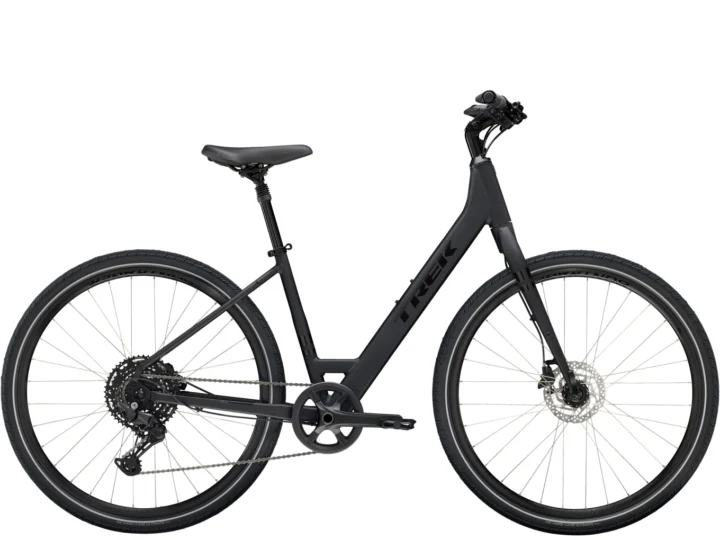

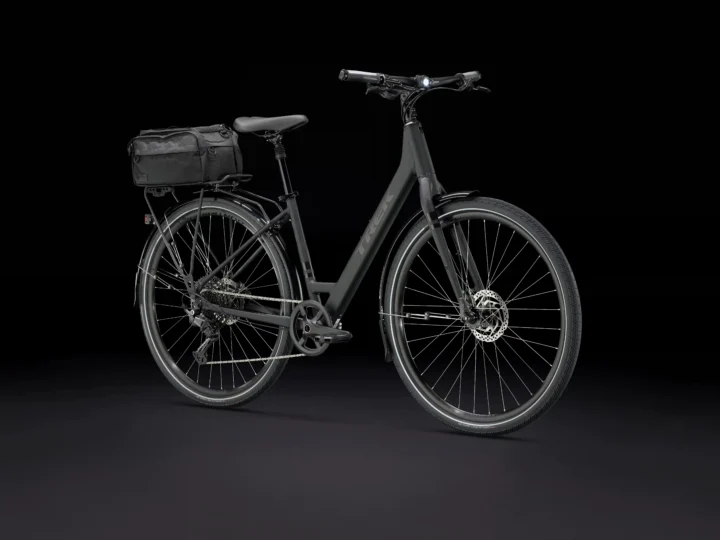

2024 Trek Verve 3 Lowstep

Original specifications: Shimano CUES, 10-speed drivetrain · 700c wheels · M - 14.02 kg / 30.91 lbs published weight.

Share owner experience

Selling this bike? Create a shareable bike record

At a glance

Model year
2024
Category
Hybrid
Original MSRP
$999.99
Sizes
XS, S, M, L
Colors
Matte Trek Black, Lava
Weight
M - 14.02 kg / 30.91 lbs
Geometry
4 manufacturer sizes
In this record
21 specifications · 8 archived images · original MSRP · geometry
Archive ID
900000768
Original buildAluminum · Shimano CUES, 10-speed · 700c

Manufacturer catalog

Published sizes and colors

4 sizes · 2 colors

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

XSSML

Published colors

Matte Trek BlackLava

Frameset

Frame ConstructionAlpha Gold Aluminum, internal cable routing, flat mount disc, rack & fender mounts, 135x5mm QR
Frame MaterialAluminum
ForkXS, S, M, L: Verve Disc, post mount, Steel legs, steel steerer, 460mm axle-to-crown, ThruSkew / XS, S, M, L: Verve alloy, steel steerer, internal brake routing, 460mm axle-to-crown, ThruSkew
Fork MaterialAluminum

Drivetrain

Component GroupShimano CUES, 10-speed
ShiftersShimano CUES U6000 w/optical gear display, 10 speed
Rear DerailleurShimano CUES U6000 GS
CranksetXS, S, M: Prowheel alloy, 40T narrow-wide ring, 170mm length / L: Prowheel alloy, 40T narrow-wide ring, 175mm length
CassetteShimano CUES LG300, LINKGLIDE, 11-48, 10 speed
ChainShimano LG500, 9/10/11 speed
PedalsBontrager City pedals

Brakes

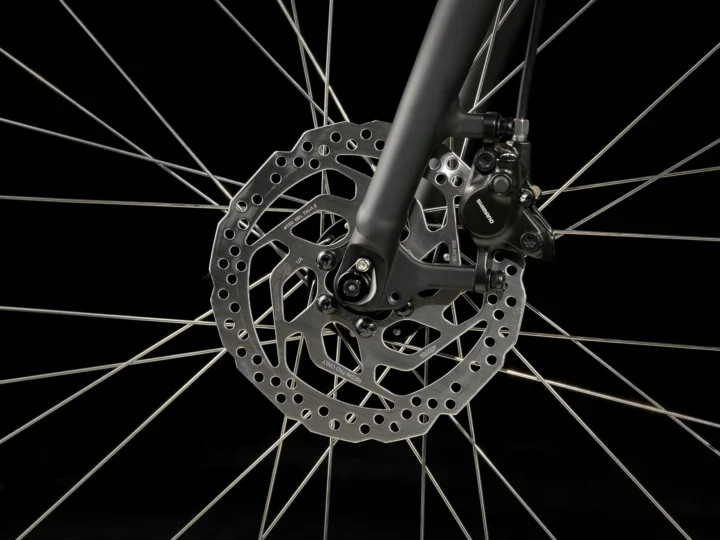

BrakesShimano MT200 hydraulic disc

Cockpit & Contact Points

HandlebarXS, S, M: Bontrager alloy, 31.8mm, comfort sweep, 620mm width / L: Bontrager alloy, 31.8mm, comfort sweep, 660mm width
StemXS, S: Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 85mm length / M, L: Bontrager alloy, 31.8mm clamp, adjustable rise, Blendr compatible, 105mm length
SaddleBontrager Boulevard
SeatpostAlloy, adjustable suspension, 27.2mm, 300mm length

Wheels & Tires

Hubs(F) Formula DC-20, alloy, 6-bolt, 100x5mm / (R) Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5mm

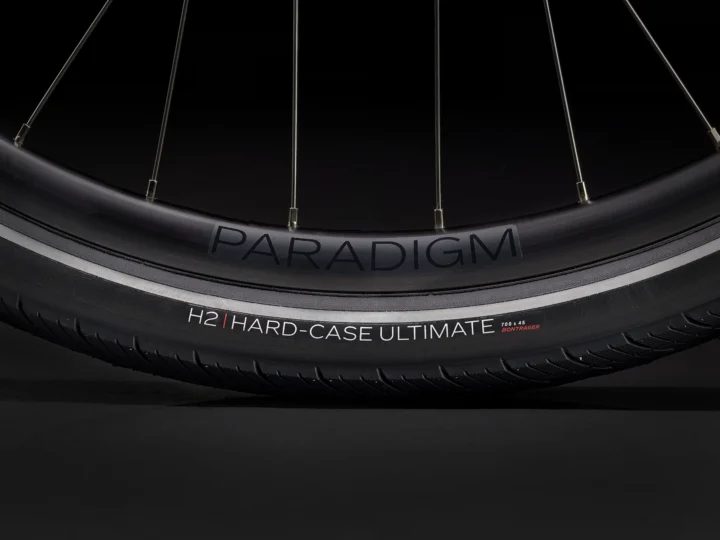

RimsBontrager Paradigm, Tubeless Ready, 32-hole, 21mm width, presta valve
Front TireBontrager H2 Hard-Case Ultimate, wire bead, 60 tpi, 700x45mm
Rear TireBontrager H2 Hard-Case Ultimate, wire bead, 60 tpi, 700x45mm
Wheel Size700c

Geometry

4 sizes · 15 measurements

Frame measurements by size.

All geometry measurements4 sizes · 15 measurements
MeasurementXSSML
Seat tube350 mm440 mm500 mm550 mm
Effective top tube546 mm568 mm594 mm604 mm
Head tube140 mm160 mm170 mm180 mm
Head-tube angle70.5°70.5°70.5°70.5°
Seat-tube angle74.5°73.5°72°72°
Chainstay / rear center470 mm470 mm470 mm470 mm
Wheelbase1080 mm1096 mm1105 mm1110 mm
Bottom-bracket drop62 mm62 mm62 mm62 mm
Bottom-bracket height301 mm301 mm301 mm301 mm
Reach375 mm380 mm385 mm392 mm
Stack615 mm634 mm644 mm653 mm
Standover height631 mm654 mm682 mm694 mm
Fork offset / rake45 mm45 mm45 mm45 mm
Trail81 mm81 mm81 mm81 mm
Wheel size700c700c700c700c

Measurements may vary by configuration, wheel size, or frame setting where noted in the published chart.

Gearing

Chainring ÷ rear sprocket

Lower ratios provide more mechanical advantage for climbing. Higher ratios turn the rear wheel farther with each crank revolution.

All published sizes40T · 11–48T
Lowest0.83:1 Highest3.64:1 Total range436%
