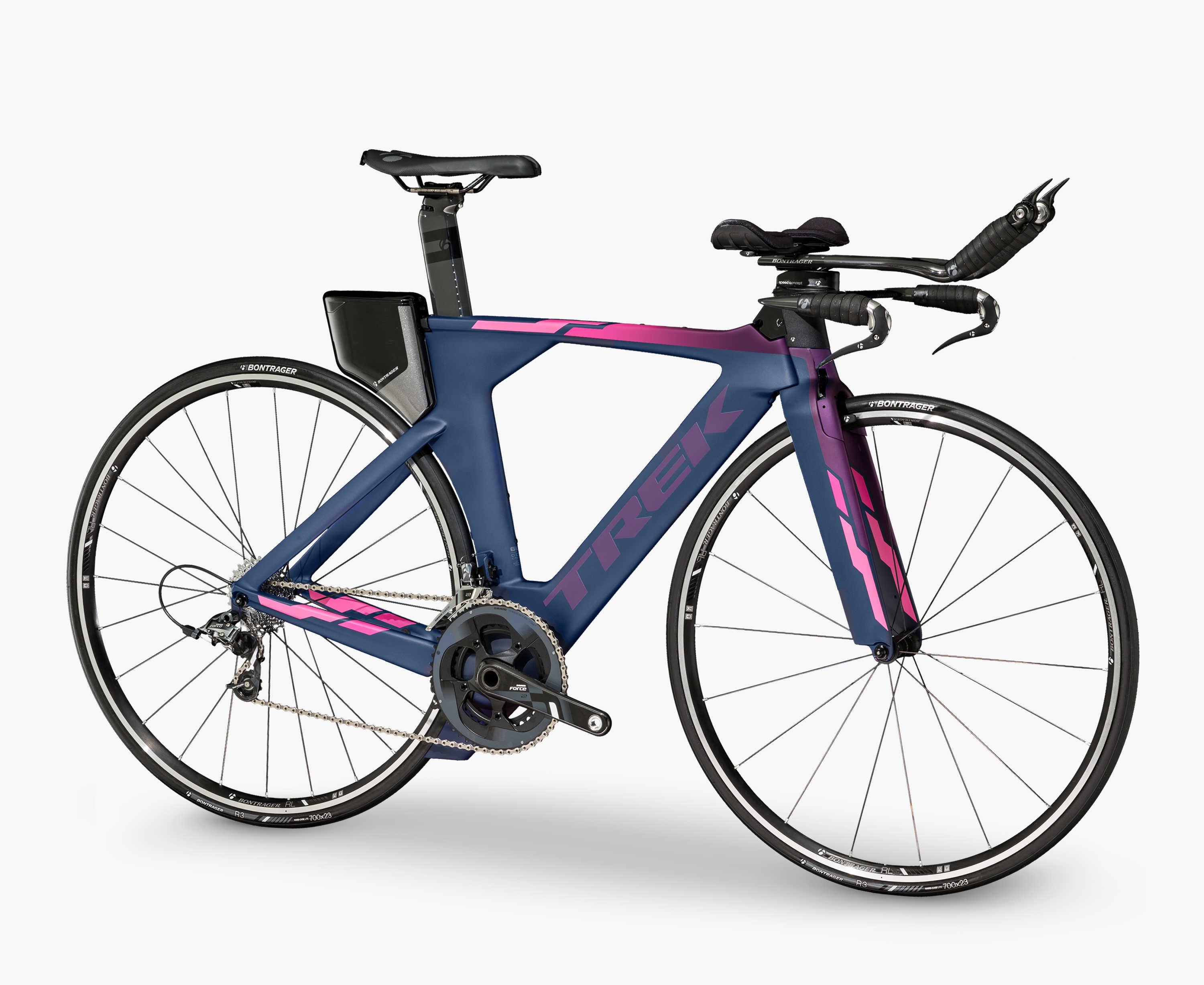

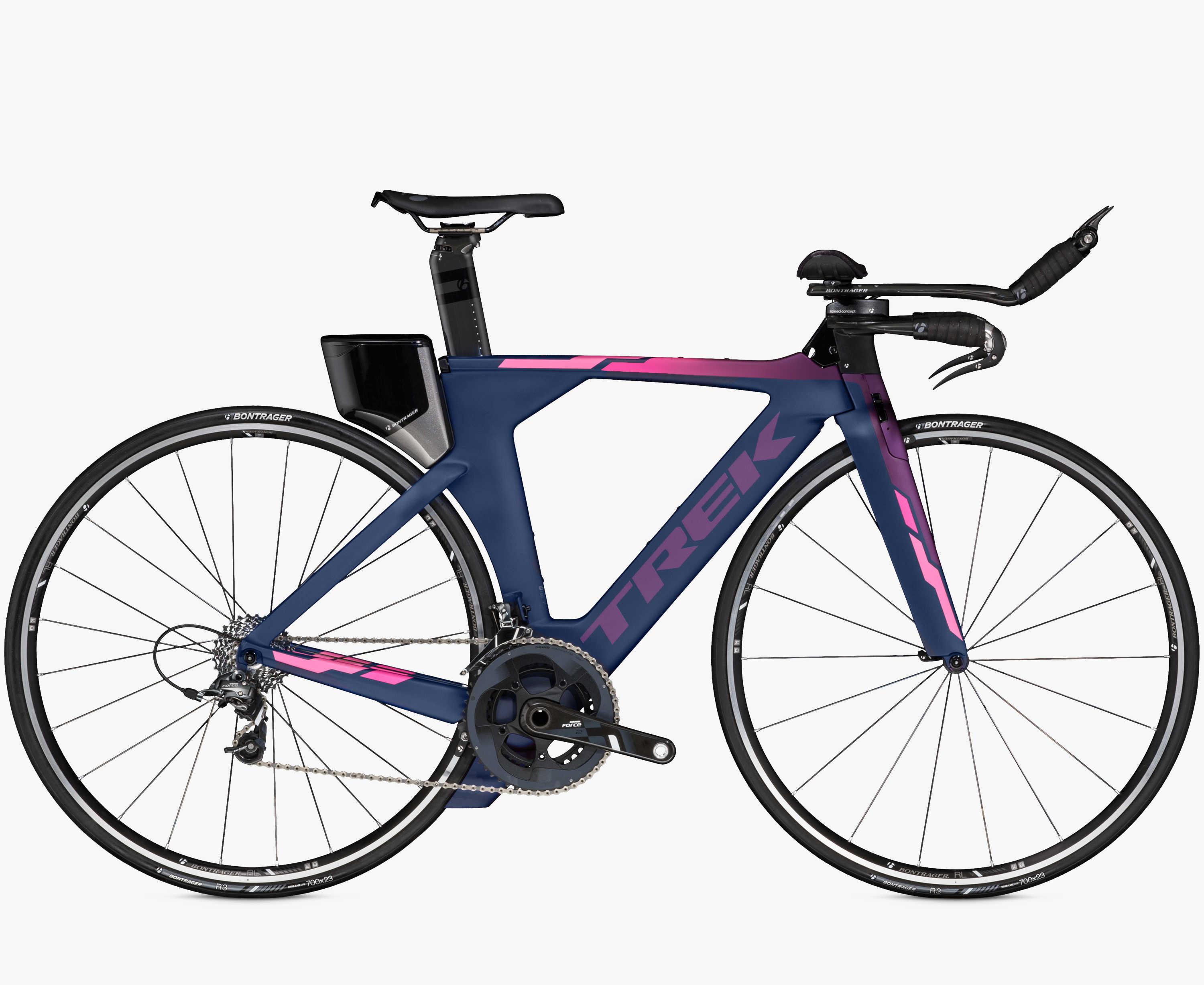

2016 Trek Speed Concept 9.5 WSD

Time Trial/Triathlon bicycle from the Velopedia specification archive.

Original MSRP
$5,499.99
Sizes
XS, S, M
Colors
Matte Navy/Purple to Pink Fade
Archive ID
1405188

Frameset

Frame Construction600 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, Speed Fin, BB90, DuoTrap compatible, SC Speed Box 2 compatible, includes SC Draft Box 2
Frame MaterialCarbon Fiber
Fork MaterialCarbon Fiber

Drivetrain

Component GroupSRAM Force
ShiftersSRAM 1190 R2C, bar end, 11 speed
Front DerailleurSRAM Force 22
Rear DerailleurSRAM Force 22
CranksetSRAM Force, 52/36 (semi-compact)
Bottom BracketBB90
Rear CogsSRAM PG-1170 11-28, 11 speed
ChainSRAM PC 1170

Brakes

BrakesBontrager Speed Limit integrated brakes, Bontrager Race Lite aero levers

Cockpit & Contact Points

HeadsetIntegrated, sealed bearings
HandlebarBontrager Speed Concept full foil aero bar, carbon, direct mount
StemBontrager Speed Concept, direct mount
SaddleBontrager Hilo RXL, hollow titanium rails
SeatpostBontrager Speed Concept Race X Lite, OCLV carbon, +/-15mm offset

Wheels & Tires

HubsBontrager alloy hubs
RimsBontrager Race Lite Tubeless Ready (XS: Xero XR-210 650c)
Front TireBontrager R3 Hard-Case Lite, 120tpi, aramid bead, 700x23c (XS: 650x23c)
Wheel Size700c

Gallery

More 2016 Trek Bicycles

View all

Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
