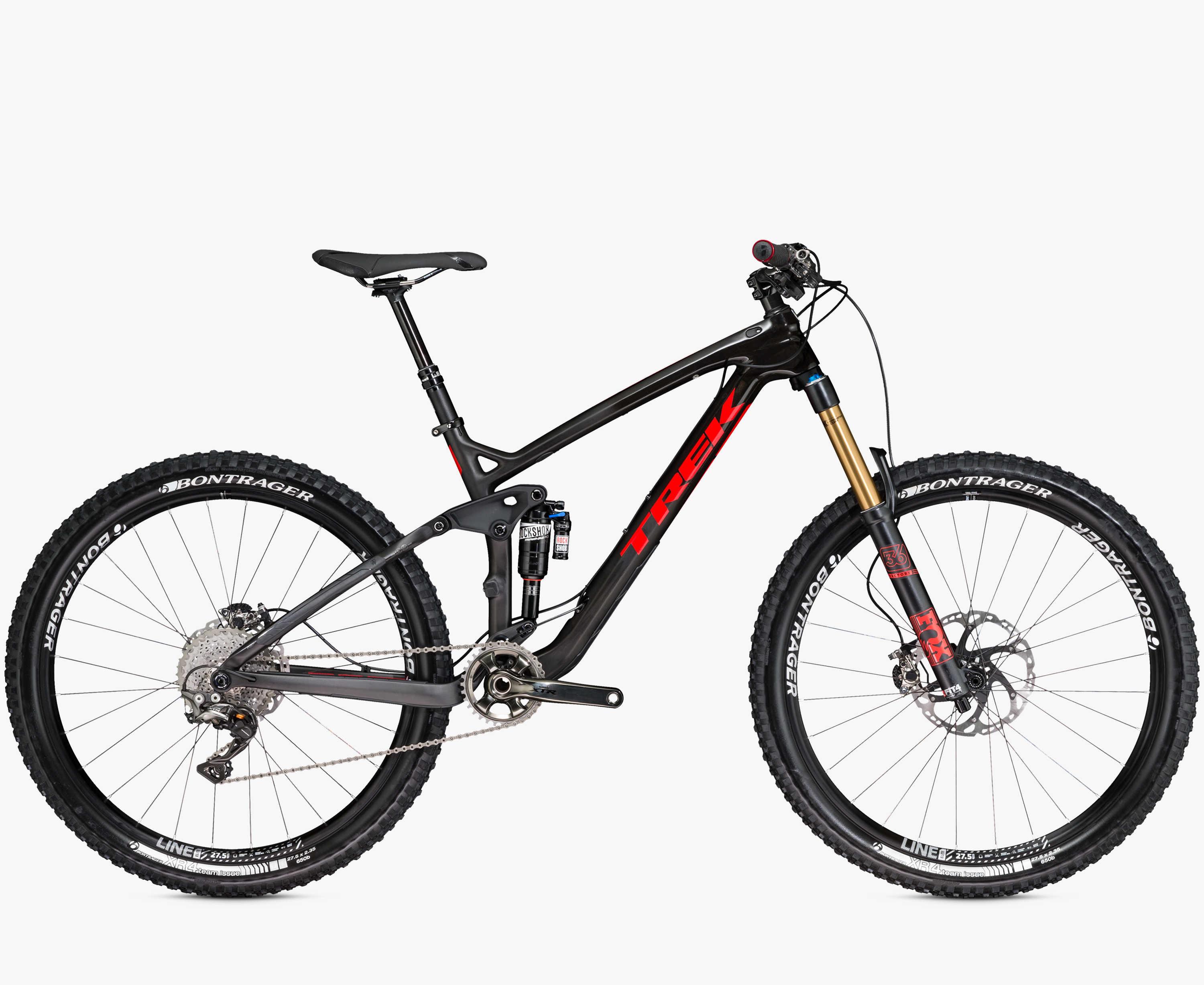

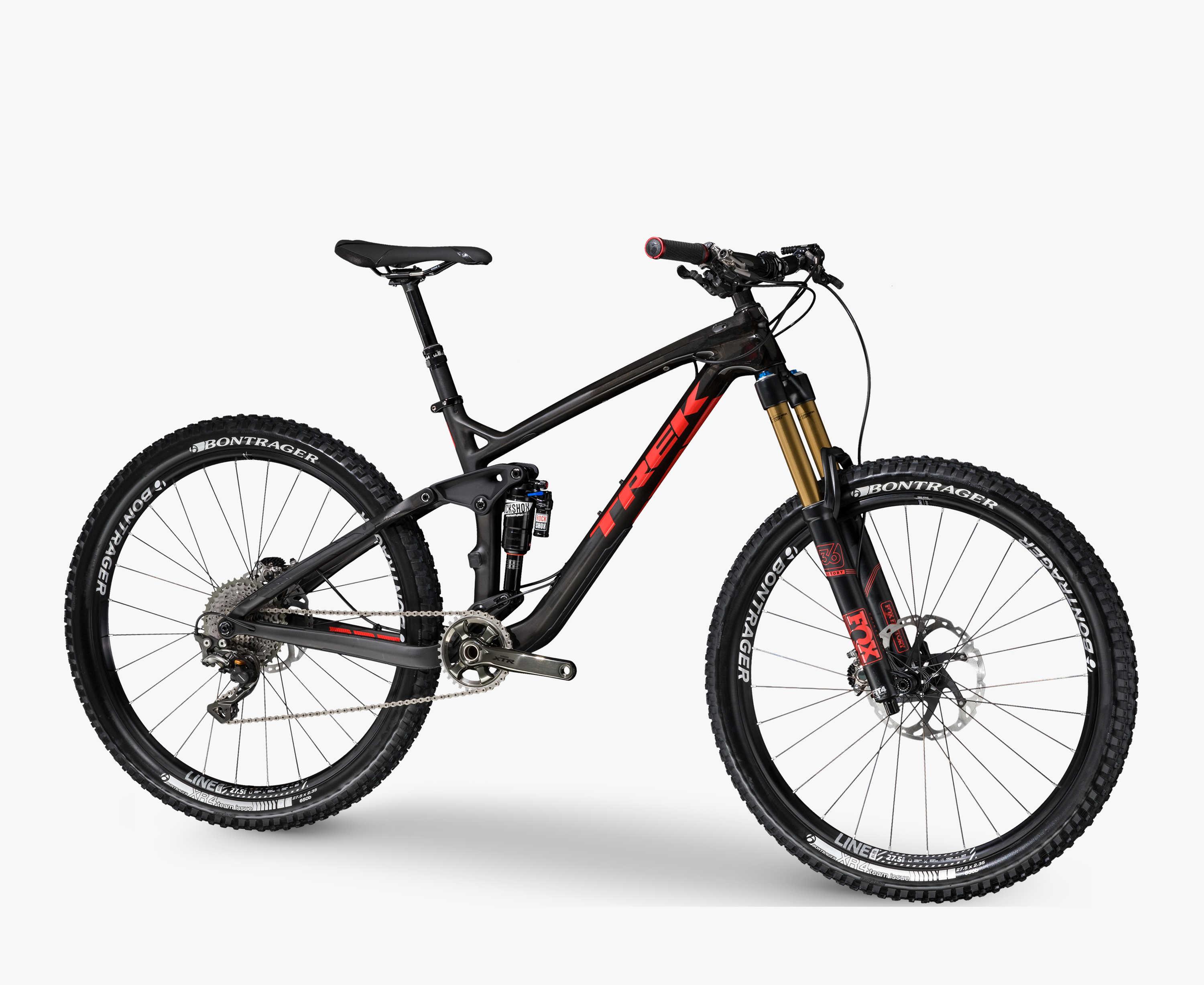

2016 Trek Slash 9.9
Mountain Dual Suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $7,999.99
- Sizes
- 15.5, 17.5, 18.5, 19.5, 21.5"
- Colors
- Gloss to Matte Carbon Smoke
- Archive ID
- 1450509
Frameset
| Frame Construction | OCLV Mountain Carbon main frame & stays, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, internal derailleur & dropper post routing, Carbon Armor, BB95, ISCG 05, 160mm travel |
|---|---|
| Frame Material | Carbon Fiber |
| Fork | Fox Factory 36 Talas, FIT4 3-position damper w/open adjust, E2 tapered steerer, 15QR, 120mm/160mm travel |
| Fork Material | Suspension |
| Rear Shock | RockShox Monarch Plus RC3 DebonAir, lockout, tuned by Trek Suspension Lab, 8.25x2.375" |
Drivetrain
| Component Group | Shimano XTR |
|---|---|
| Shifters | Shimano XTR, 11 speed |
| Rear Derailleur | Shimano XTR, Shadow Plus |
| Crankset | Shimano XTR, 32T |
| Bottom Bracket | BB95 |
| Rear Cogs | Shimano XTR, 11-40, 11 speed |
| Chain | Shimano HG900 |
Brakes
| Brakes | Shimano XTR Trail hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | FSA IS-2 carbon, E2, sealed alloy cartridge |
|---|---|
| Handlebar | Bontrager Rhythm Pro, OCLV Carbon, 31.8mm, 15mm rise |
| Stem | Bontrager Rhythm Pro, 31.8mm, 0 degree |
| Saddle | Bontrager Evoke 3, hollow titanium rails |
| Seatpost | RockShox Reverb Stealth, 2-bolt head, 31.6mm, zero offset |
Wheels & Tires
| Hubs | 15mm front, 142x12 rear |
|---|---|
| Rims | Bontrager Line Elite Tubeless Ready, TLR strips, Stacked Lacing, Rapid Drive |
| Front Tire | Bontrager XR4 Team Issue, Tubeless Ready, 120tpi, aramid bead, 27.5x2.35" |
| Wheel Size | 27.5 |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
