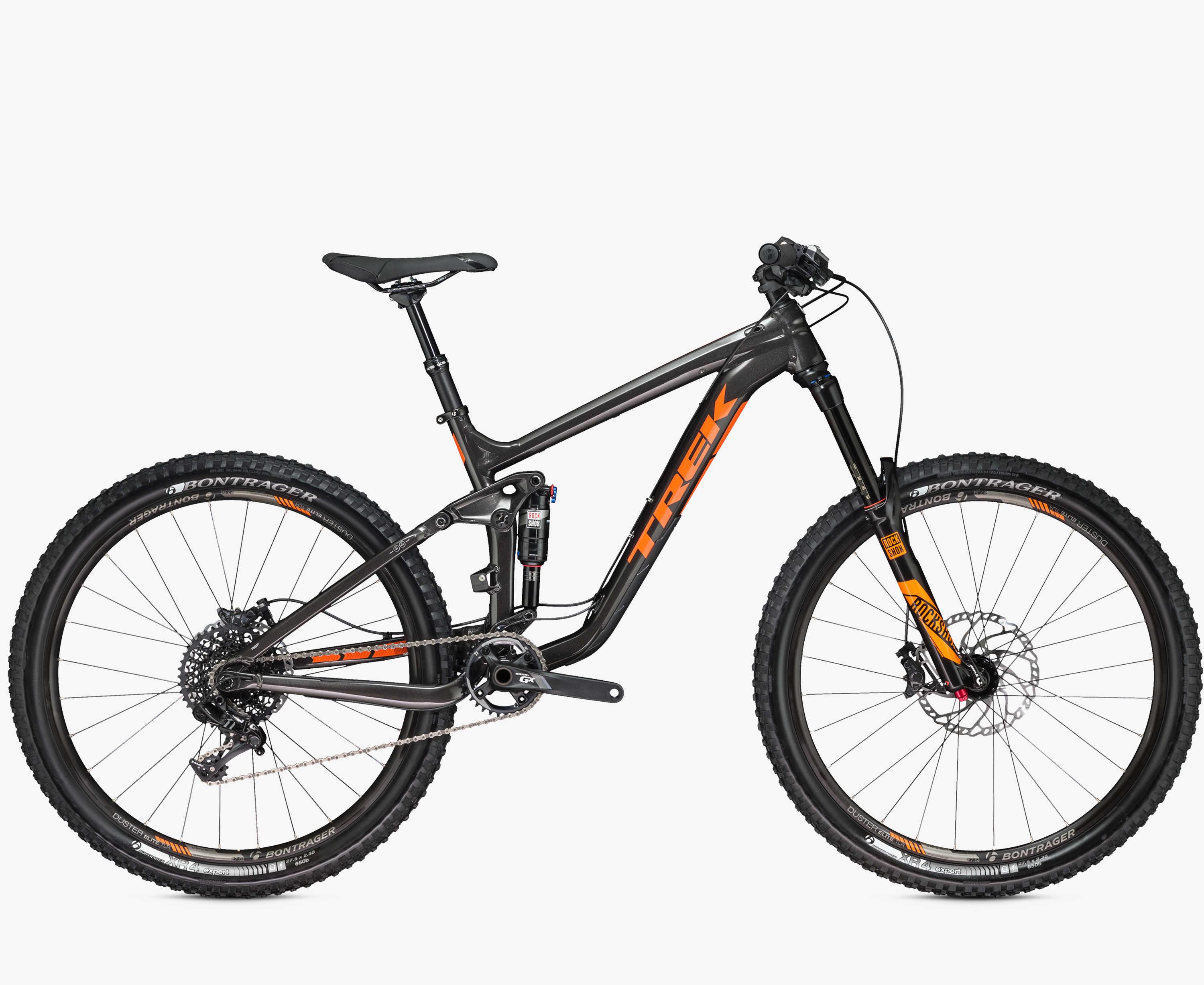

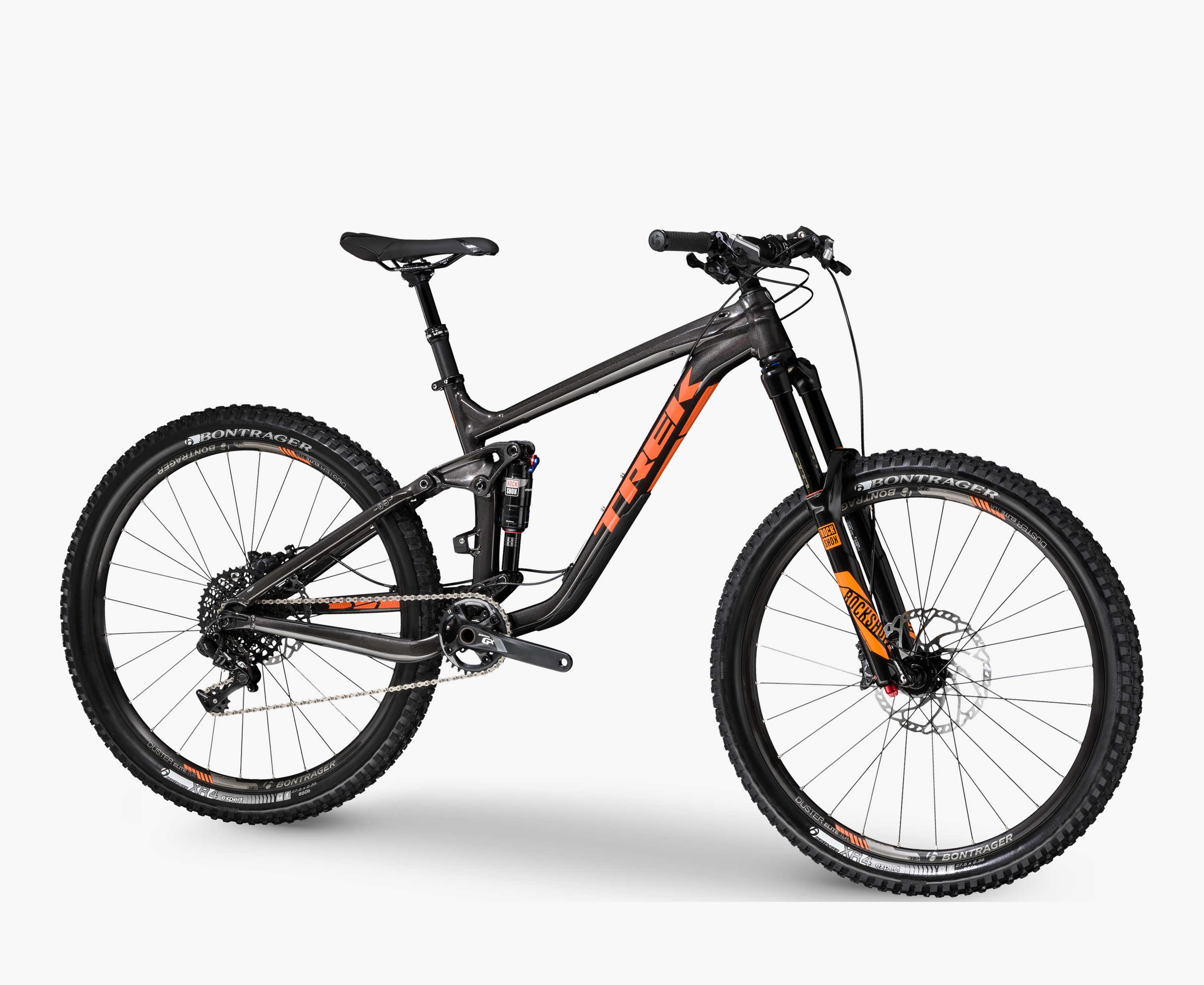

2016 Trek Slash 8
Mountain Dual Suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $3,999.99
- Sizes
- 15.5, 17.5, 18.5, 19.5, 21.5"
- Colors
- Dnister Black
- Archive ID
- 1154484
Frameset
| Frame Construction | Alpha Platinum Aluminum, ABP, Full Floater, EVO link, E2 tapered head tube, Mino Link, internal derailleur & dropper post routing, down tube guard, PF89.5, ISCG 05, 160mm travel |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Pike RC, 2-position Solo Air, Charger damper, lockout, E2 tapered steerer, 15mm Maxle Ultimate, 130mm/160mm travel |
| Fork Material | Suspension |
| Rear Shock | RockShox Monarch RL DebonAir, lockout, tuned by Trek Suspension Lab, 8.25x2.375" |
Drivetrain
| Component Group | SRAM GX1 |
|---|---|
| Shifters | SRAM GX1, 11 speed |
| Rear Derailleur | SRAM GX1, Type 2 |
| Crankset | SRAM GX 1000, 32T X-Sync |
| Bottom Bracket | PF89.5 |
| Rear Cogs | SRAM XG-1150, 10-42, 11 speed |
| Chain | SRAM PC 1130 |
Brakes
| Brakes | Shimano SLX hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | FSA IS-2 carbon, E2, sealed alloy cartridge |
|---|---|
| Handlebar | Bontrager Rhythm Elite, 31.8mm, 15mm rise |
| Stem | Bontrager Rhythm Comp, 31.8mm, 0 degree |
| Saddle | Bontrager Evoke 2, chromoly rails |
| Seatpost | KS eThirty Integra, remote lever, 2-bolt head, 31.6mm, zero offset, internal routing |
Wheels & Tires
| Hubs | 15mm front, 142x12 rear |
|---|---|
| Rims | Bontrager Duster Elite Tubeless Ready |
| Front Tire | Bontrager XR4 Expert, Tubeless Ready, aramid bead, 27.5x2.35" |
| Wheel Size | 27.5 |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
