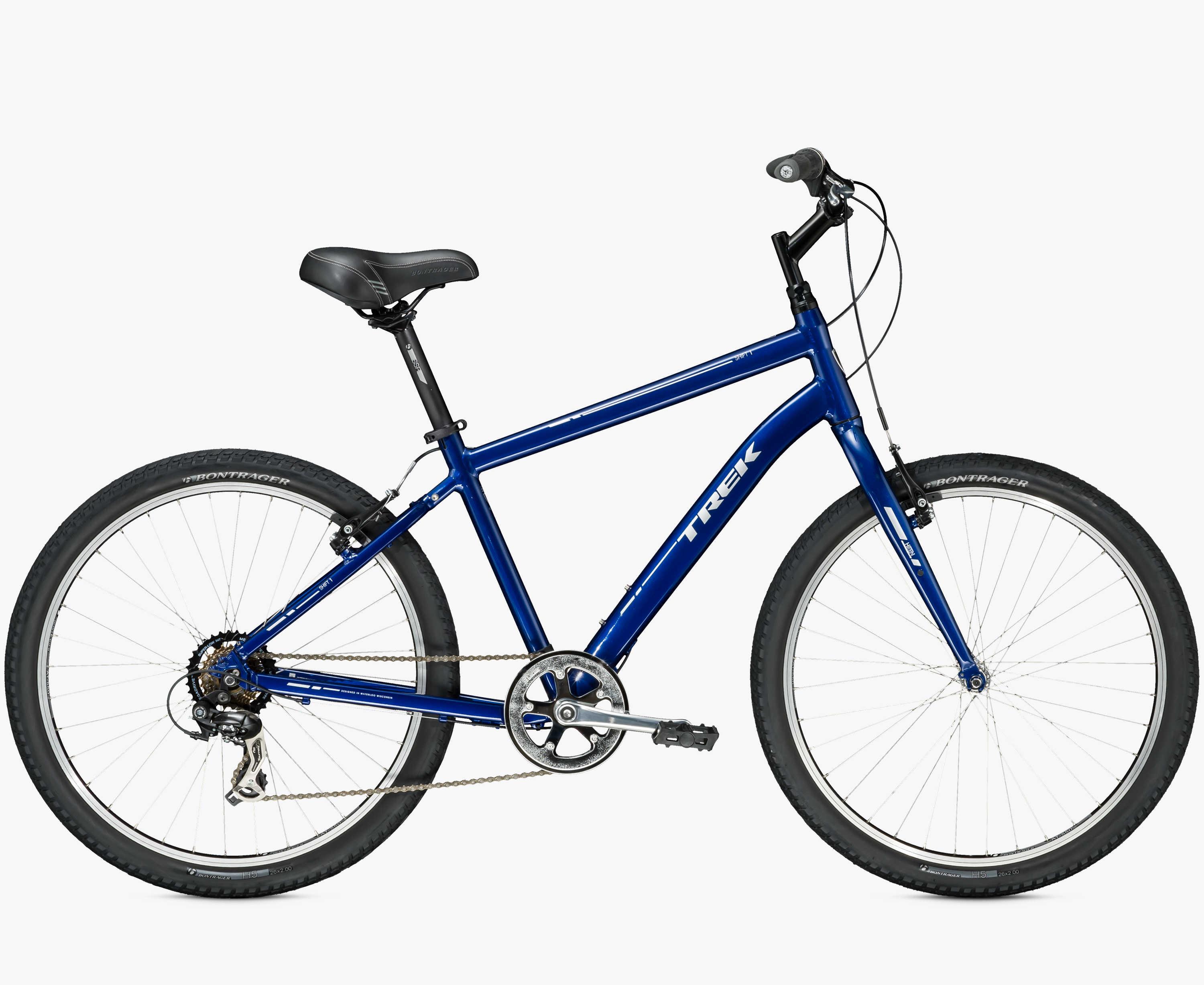

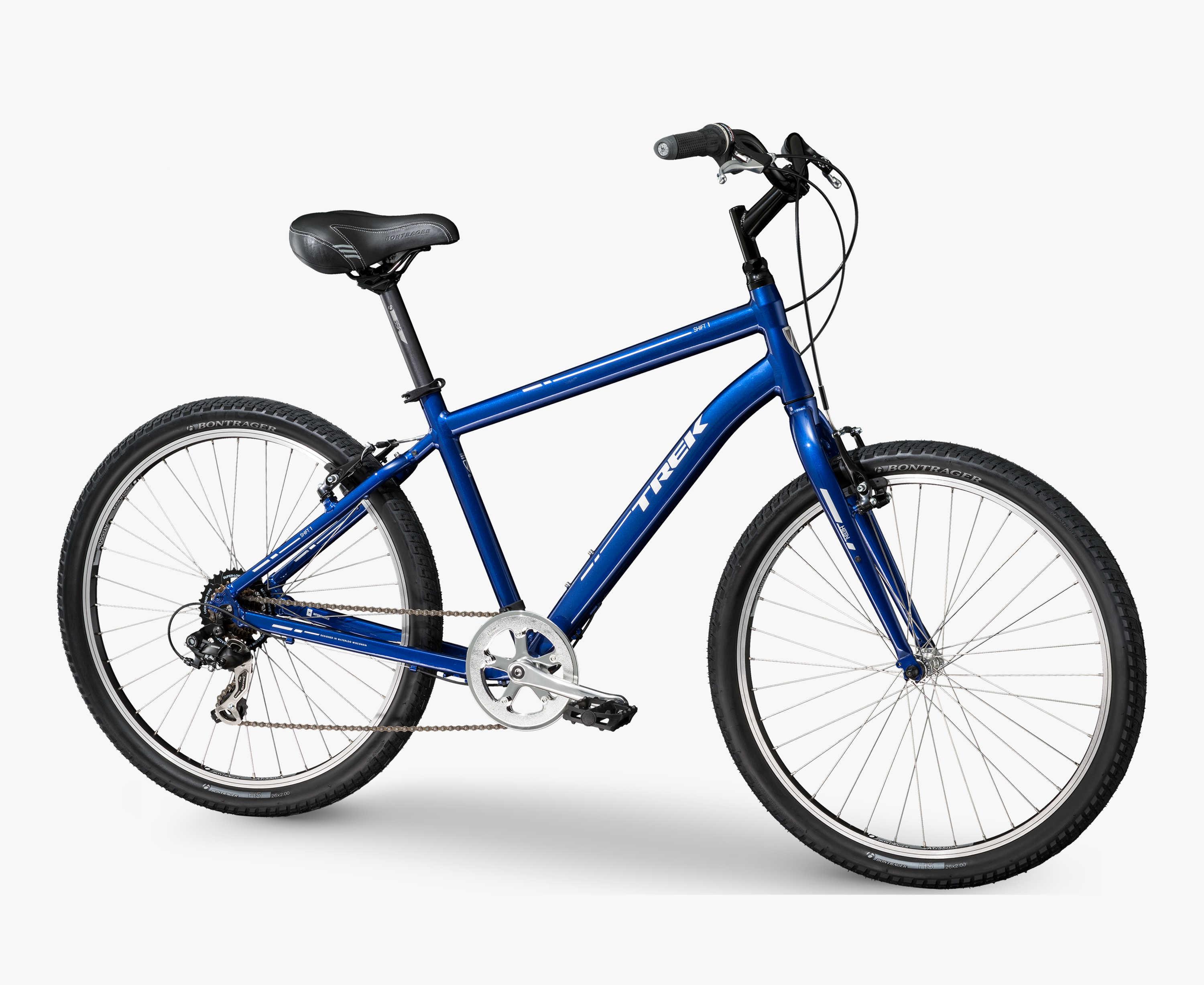

2016 Trek Shift 1

Original specifications: Shimano Tourney · 7-speed rear derailleur · 26 wheels.

Share owner experience

Planning to sell? Draft your listing

At a glance

Archive #1110433
Model year
2016
Category
Hybrid
Original MSRP
$439.99
Sizes
14.5, 16.5, 18.5, 21"
Colors
Trek Navy Blue
In this record
18 specifications · 2 archived images · original MSRP
Model history 3 other years

Browse other years

Compare side by side

Identification clues

2016 archived details

Published colors
Trek Navy Blue
Frame
Aluminum
Original equipment
Comfort mix

Clues, not proof of model year. Colors vary and components may have been replaced.

Sponsored affiliate link
Original buildAluminum · Comfort mix · 26

Manufacturer catalog

Published sizes and colors

4 sizes · 1 color

Manufacturer-published sizes and colors; availability and exact size/color pairings may vary by market or production run.

Published sizes

14.516.518.521"

Published colors

Trek Navy Blue

Frameset

Frame ConstructionAlpha Gold Aluminum, rack & fender mounts, internal cable routing
Frame MaterialAluminum

Drivetrain

Component GroupComfort mix
ShiftersSRAM MRX, 7 speed twist
Rear DerailleurShimano Tourney TX35
CranksetForged alloy, 42T w/chainguard
Rear CogsSunRace freewheel, 14-34, 7 speed
ChainKMC Z51

Brakes

BrakesTektro alloy linear-pull brakes, Tektro adjustable-reach alloy levers

Cockpit & Contact Points

Headset1-1/8" semi-integrated, semi-cartridge bearings
HandlebarBontrager Riser, 25.4mm, 30mm rise
StemBontrager quill, 25.4mm, 25 degree
SaddleBontrager Suburbia w/super-soft padding
SeatpostBontrager SSR, 2-bolt head, 31.6mm, 12mm offset

Wheels & Tires

HubsFormula alloy hubs
RimsBontrager AT-550 alloy rims
Front TireBontrager H5, 26x2.0"
Wheel Size26

Gearing

Lower gears help on climbs. Higher gears suit higher speeds.

RPM

RPM = pedal turns per minute.

All published sizes42T · 14–34T · 7-speed
Lowest1.24:1 Highest3.00:1 Total range243%
Estimated speed At 90 RPM Lowest gear8.6 mph Highest gear20.9 mph

Uses front tire 26×2; rear size isn’t listed.

How it works

Ratio = front teeth ÷ rear teeth. Hub gears also include the hub’s internal ratio. A 400% range means the highest ratio is four times the lowest.

Speeds are estimates from tire size and pedal cadence. Actual speeds vary.

Try other gearing

Try your current gearingChanged tires or gears? Calculate your setup.

Your changes apply to this calculation. The archived build stays unchanged.

Your gearing setup
Gears

Use up to three front tooth counts, separated by /. For one rear sprocket, enter the same count twice.

Rear tire

Apply the marking on your rear tire or edit its dimensions below. Older or fractional inch sizes need the ISO marking (e.g. 37-590).

For 32-622, width is 32 mm and rim diameter is 622 mm. Use the rear tire on mixed-wheel bikes. Leave both fields empty to compare ratios only.

Gear, dimension and cadence changes update results automatically.

Speeds are estimates. These calculations do not establish component compatibility or available tire clearance.

Parts & serviceability

Find replacement parts

Original specifications

Affiliate links may earn Velopedia a commission. As an Amazon Associate I earn from qualifying purchases.

Chain · Original
KMC Z51
Cassette / rear cogs · Original
SunRace freewheel

14-34, 7 speed

Front tire · Original
Bontrager H5

26x2.0"

Replacement search: 26x2 bicycle tire Before ordering: Check rim type and tire clearance.
More parts (6)Fewer parts
Brake pads · Original
Tektro alloy linear-pull brakes

Tektro adjustable-reach alloy levers

Saddle · Original
Bontrager Suburbia w/super-soft padding
Rear derailleur · Original
Shimano Tourney TX35
Stem · Original
Bontrager quill

25.4mm, 25 degree

Seatpost · Original
Bontrager SSR

2-bolt head, 31.6mm, 12mm offset

Rims · Original
Bontrager AT-550 alloy rims

Based on the original build. Check fit and installed parts before ordering.

Parts and service referenceQuick reference before buying parts

Archived specifications for reference. Check the fitted parts before ordering.

Front tire
Bontrager H5, 26x2.0"
Drivetrain
7-speed
Seatpost diameter
31.6 mm
Sponsored affiliate link
Equipment inspection checks 9 checks based on 5 archived component groups Open equipment checksClose equipment checks
0 of 9 checked Progress stays in this browser for this record.

Checks selected from the archived equipment. Confirm what is fitted today. This is not a complete safety inspection; use the full inspection guide before test riding.

Full used-bike inspection guide →

Archived: Frame: Alpha Gold Aluminum, rack & fender mounts, internal cable routing

Archived: Group: Comfort mix · Shifters: SRAM MRX, 7 speed twist · Rear derailleur: Shimano Tourney TX35 · Crankset: Forged alloy, 42T w/chainguard · Rear cogs: SunRace freewheel, 14-34, 7 speed · Chain: KMC Z51

Archived: Brakes: Tektro alloy linear-pull brakes, Tektro adjustable-reach alloy levers

Archived: Wheel size: 26 · Rims: Bontrager AT-550 alloy rims · Hubs: Formula alloy hubs · Front tire: Bontrager H5, 26x2.0"

Controls and contact points

Archived: Headset: 1-1/8" semi-integrated, semi-cartridge bearings · Handlebar: Bontrager Riser, 25.4mm, 30mm rise · Stem: Bontrager quill, 25.4mm, 25 degree · Seatpost: Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset · Saddle: Bontrager Suburbia w/super-soft padding
