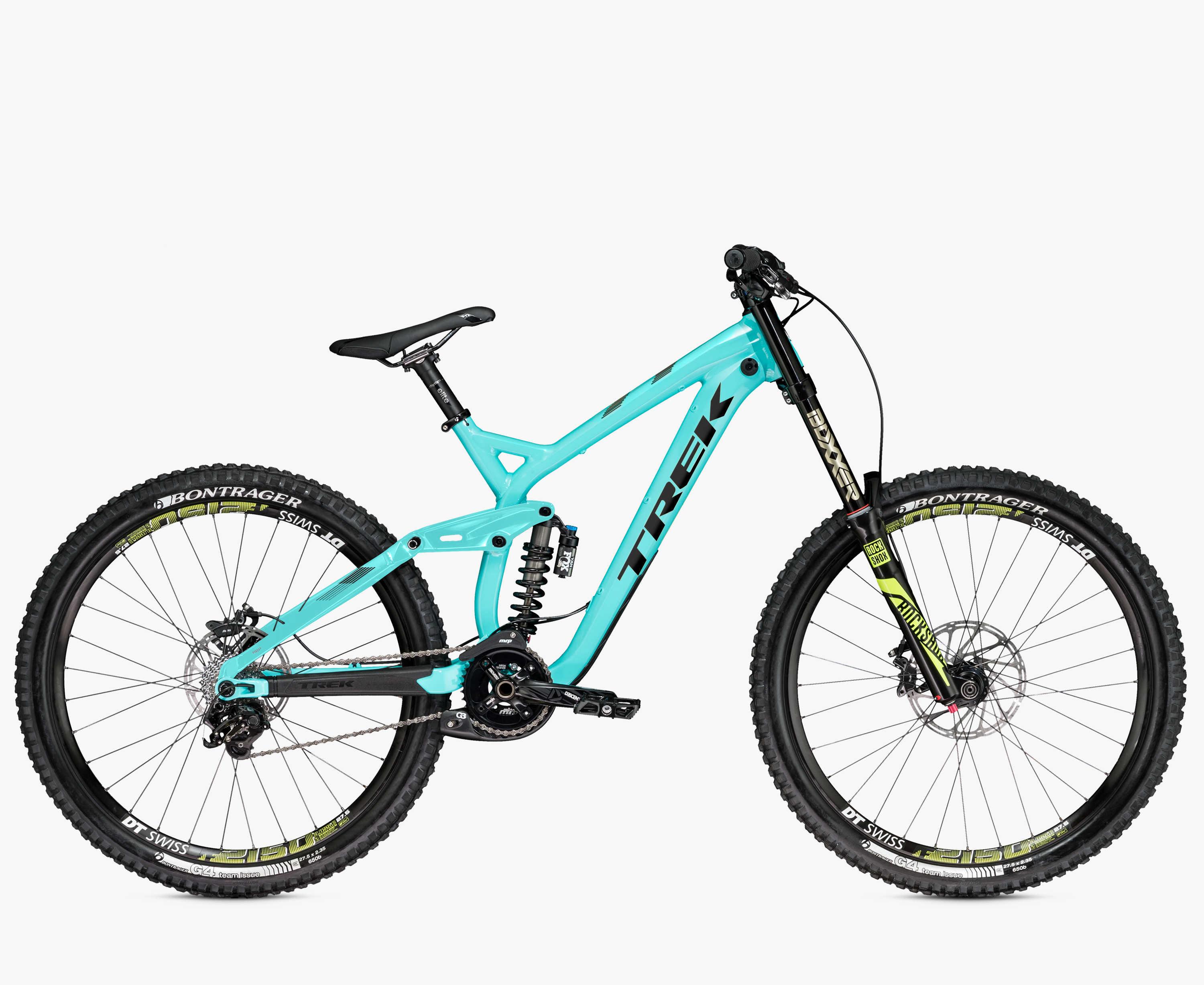

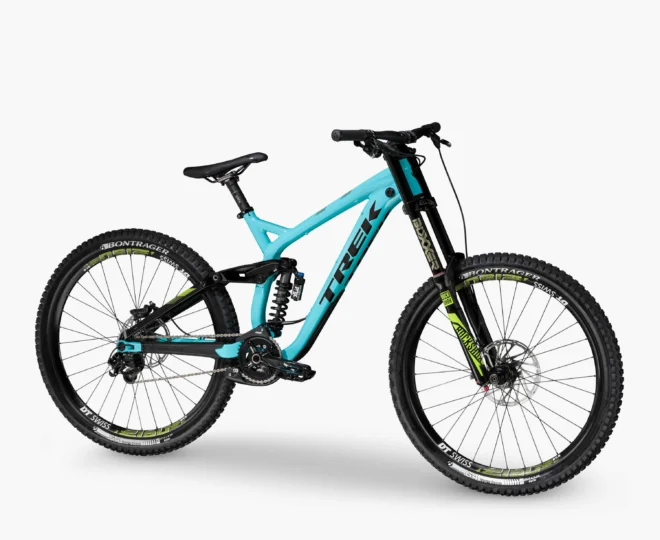

2016 Trek Session 88
Mountain Dual Suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $4,999.99
- Sizes
- S, M, L, XL
- Colors
- Miami Green
- Archive ID
- 1399843
Frameset
| Frame Construction | Alpha Platinum Aluminum, ABP, Full Floater, EVO Link, E2 tapered head tube, Mino Link, integrated frame protection, internal control routing, MicroTruss, down tube guard, ISCG Mount, 210mm travel |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Boxxer RC, coil spring (S, M red; L, XL blue), low speed compression, internal preload, Motion Control IS, 20mm Maxle DH, 200mm travel |
| Fork Material | Suspension |
| Rear Shock | Fox Performance VAN RC, externally adjustable rebound and low-speed compression; (S 400lb; M 450lb; L 500lb; XL 500lb spring), tuned by Trek Suspension Lab, 8.75x2.75" |
Drivetrain
| Component Group | DH mix |
|---|---|
| Shifters | SRAM X9, 10 speed |
| Rear Derailleur | SRAM X0, Type 2 |
| Crankset | Truvativ Descendant, 36T |
| Rear Cogs | SRAM PG 1030, 11-26, 10 speed |
| Chain | KMC X10 |
Brakes
| Brakes | SRAM CODE R hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | FSA Orbit, E2, sealed cartridge bearing |
|---|---|
| Handlebar | Bontrager Rhythm Elite, 31.8mm, 15mm rise |
| Stem | Bontrager Direct Mount, 31.8mm |
| Saddle | Bontrager Evoke 2, chromoly rails |
| Seatpost | Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset |
Wheels & Tires
| Hubs | 20mm front, 157x12 rear |
|---|---|
| Rims | DT Swiss FR2150 |
| Front Tire | Bontrager G4 Team Issue, 27.5x2.35" |
| Wheel Size | 27.5 |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
