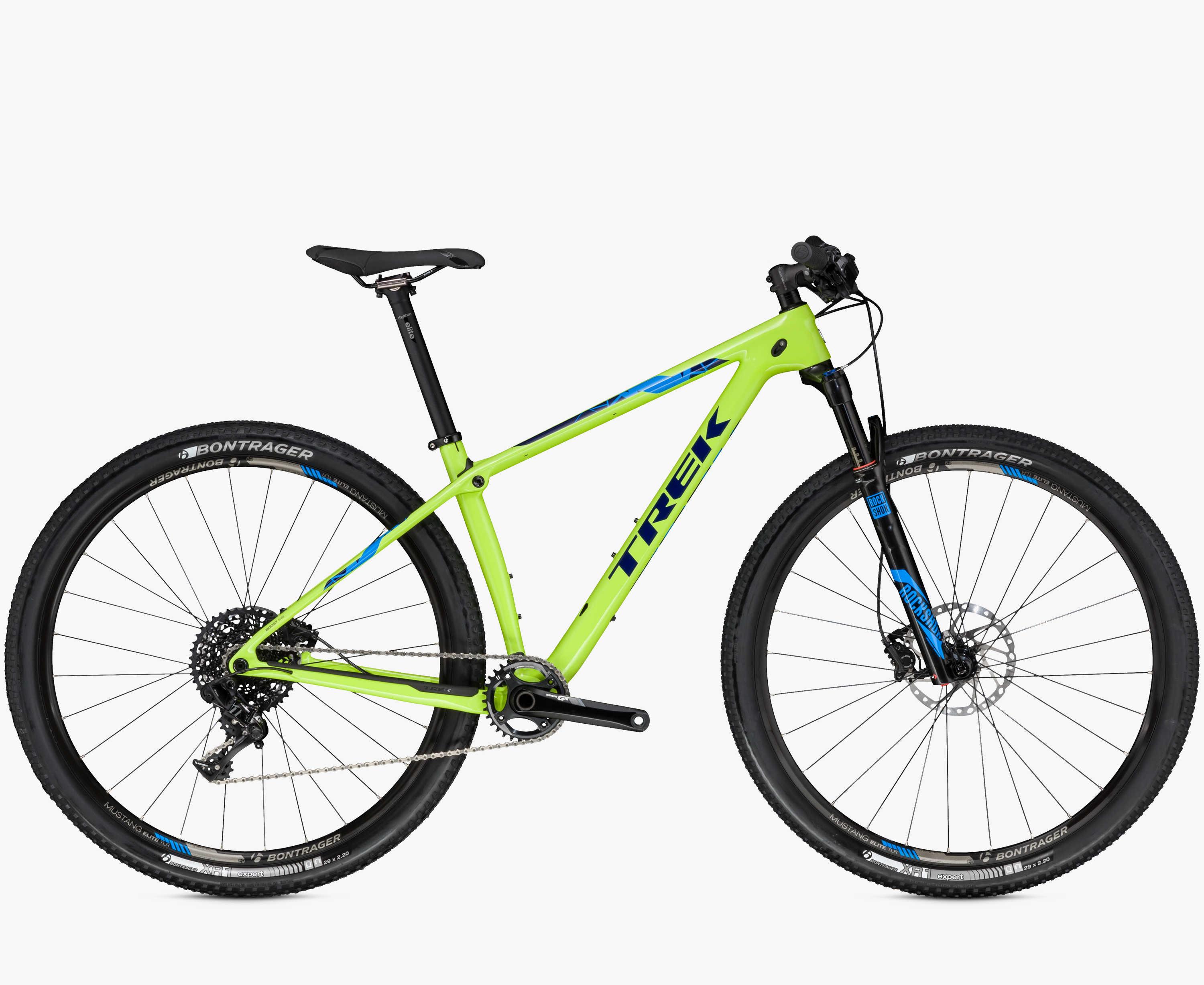

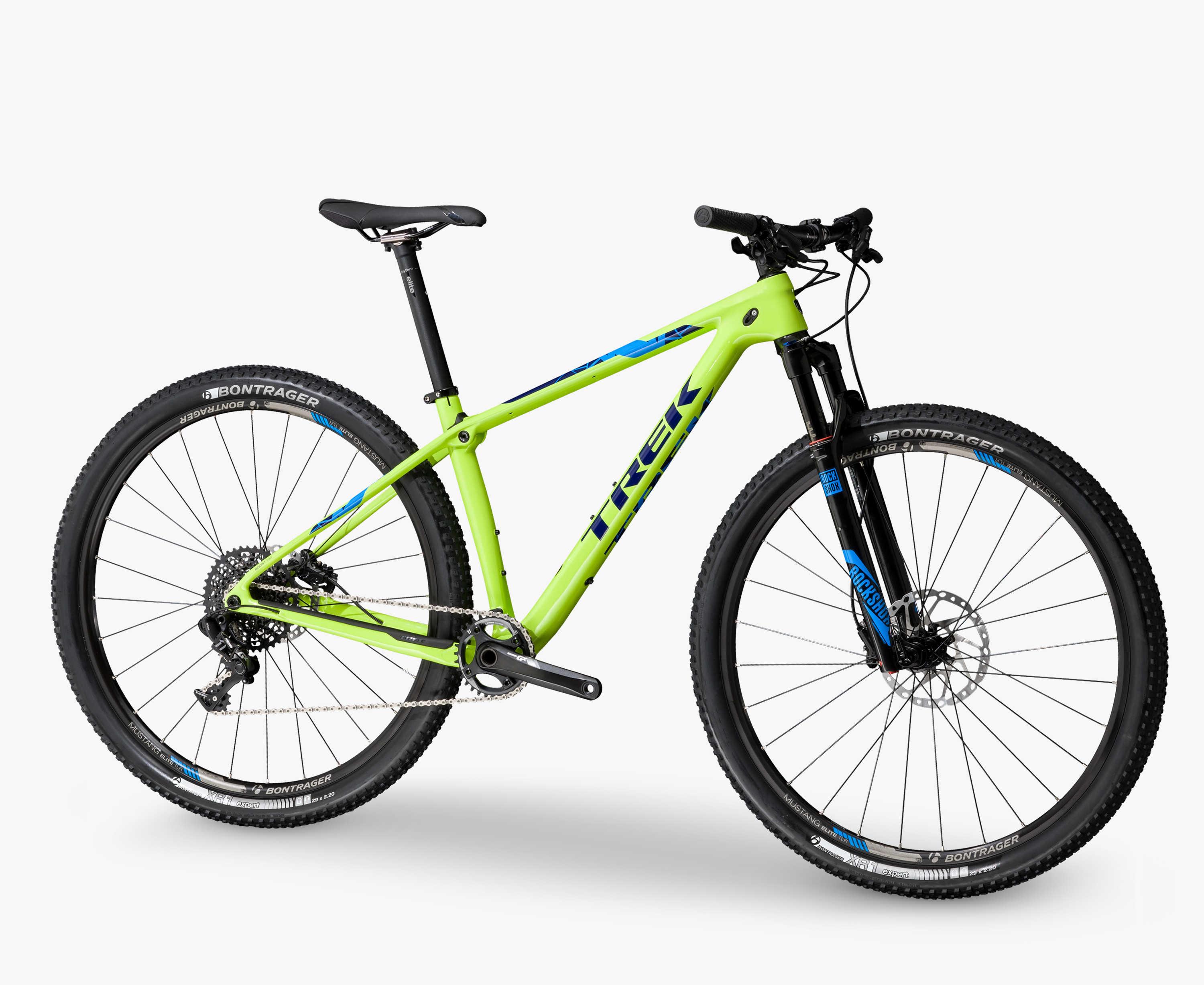

2016 Trek Procaliber 9.7 SL

Archived: 2016 Trek Procaliber 9.7 SL · Mountain Hardtail · Published sizes: 15.5" (27.5" wheels), 17.5, 18.5, 19.5, 21.5" (29" wheels)

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: OCLV Mountain Carbon, IsoSpeed, E2 tapered head tube, MicroTruss, Control Freak internal routing, balanced post mount brake, PF92, Boost148 & G2 Geometry on 29ers · Fork: RockShox Reba RL, Solo Air, Motion Control damper, remote lockout, E2 tapered steerer, Boost110 & G2 Geometry w/51mm offset on 29ers, 100mm travel · Suspension

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: RockShox Reba RL, Solo Air, Motion Control damper, remote lockout, E2 tapered steerer, Boost110 & G2 Geometry w/51mm offset on 29ers, 100mm travel

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Ask for dated fork-service records. A clean exterior does not establish the condition of internal seals, oil or bushings.

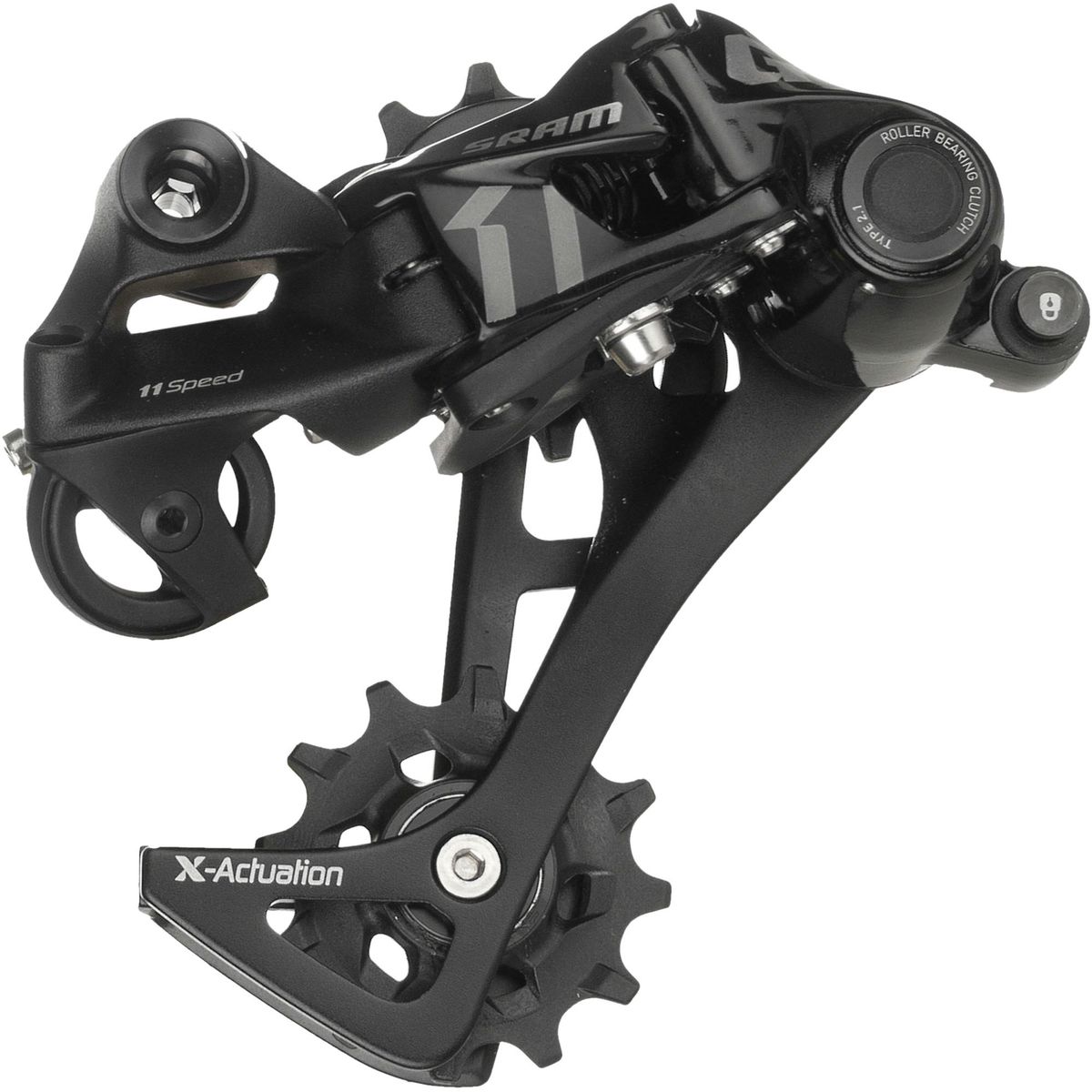

Archived: Group: SRAM GX1 · Shifters: SRAM GX, 11 speed · Rear derailleur: SRAM GX · Crankset: SRAM GX 1000, 32T X-Sync · Bottom bracket: PF92 · Rear cogs: SRAM XG-1150, 10-42, 11 speed · Chain: SRAM PC 1130

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano Deore hydraulic disc

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 27.5/29 · Rims: Bontrager Mustang Elite Tubeless Ready · Hubs: 15mm front, 12mm rear (Boost110 & Boost148 on 29ers) · Front tire: Bontrager XR1 Expert, Tubeless Ready, aramid bead, 29x2.20" (Bontrager XR2 Expert, Tubeless Ready, aramid bead, 27.5x2.20")

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance. This record indicates different front and rear wheel diameters, so verify each tire at its correct end.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: FSA IS-2 carbon, E2, sealed alloy cartridge · Handlebar: Bontrager Race Lite, 31.8mm, 5mm rise · Stem: Bontrager Elite, 31.8mm, 7 degree, Blendr compatible · Seatpost: Bontrager Rhythm Elite, 2-bolt head, 31.6mm, zero offset · Saddle: Bontrager Evoke 2, chromoly rails

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure.
• Check that the seatpost moves for adjustment and that the saddle, post and clamp hold securely without cracks, severe corrosion or damaged hardware.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
