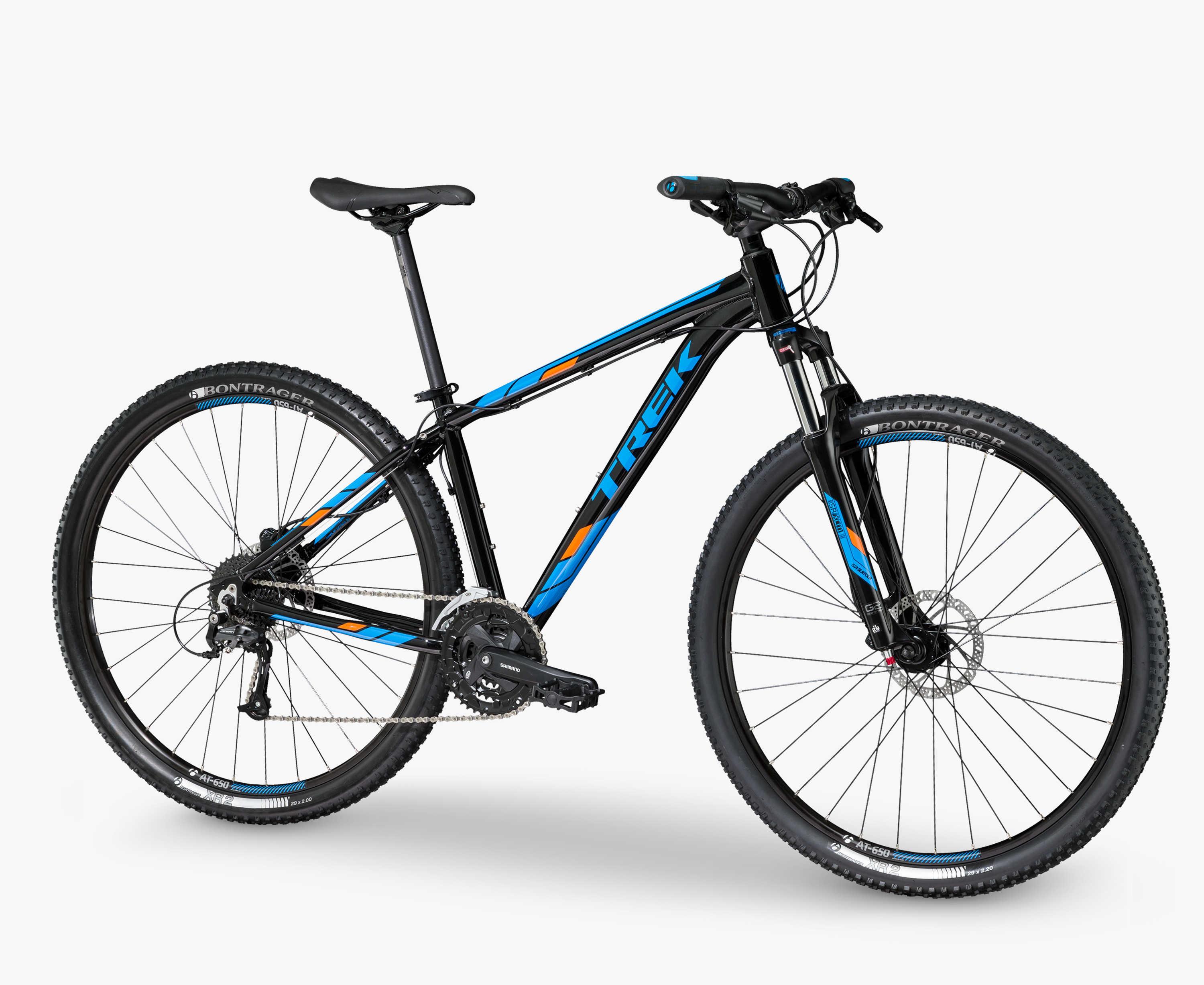

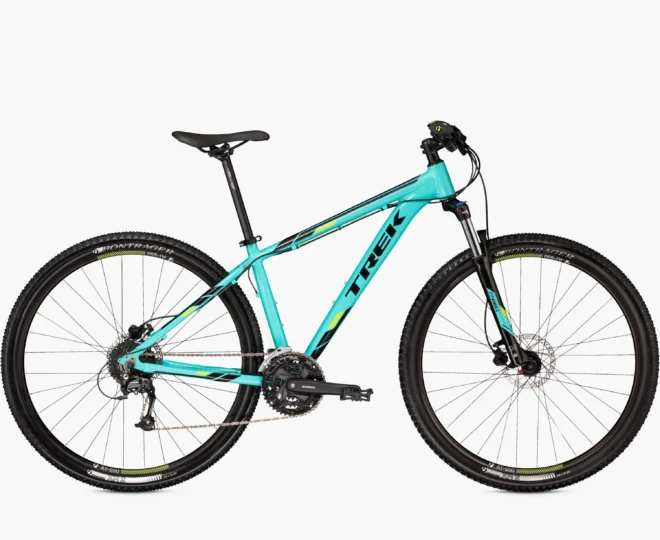

2016 Trek Marlin 7
Mountain Hardtail bicycle from the Velopedia specification archive.
- Original MSRP
- $769.99
- Sizes
- 13.5, 15.5" (27.5" wheels); 17.5, 18.5, 19.5, 21.5, 23" (29" wheels)
- Colors
- Trek Black/Waterloo Blue, Miami Green
- Archive ID
- 1469267
Frameset
| Frame Construction | Alpha Silver Aluminum w/semi-integrated head tube, rack & fender mounts, G2 Geometry on 29ers |
|---|---|
| Frame Material | Aluminum |
| Fork | SR Suntour XCM, coil spring, preload, adjustable rebound, hydraulic lockout, G2 Geometry w/51mm offset on 29ers, 100mm travel (13.5" : 80mm travel) |
| Fork Material | Suspension |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano Altus M370, 9 speed |
| Front Derailleur | Shimano |
| Rear Derailleur | Shimano Acera M390 |
| Crankset | Shimano M351, 40/32/22 |
| Rear Cogs | Shimano HG20, 11-34, 9 speed |
| Chain | KMC X9 |
Brakes
| Brakes | Tektro M290 hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | 1-1/8" threadless, semi-integrated, semi-cartridge bearings |
|---|---|
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise |
| Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
| Saddle | Bontrager Evoke 1.5 |
| Seatpost | Bontrager SSR, 2-bolt head, 27.2mm, 12mm offset |
Wheels & Tires
| Hubs | Bontrager disc |
|---|---|
| Rims | Bontrager AT 650 Disc |
| Front Tire | Bontrager XR2, 29x2.20" front, 29x2.00" rear (Bontrager XR2, 27.5x2.20") |
| Wheel Size | 27.5/29 |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
