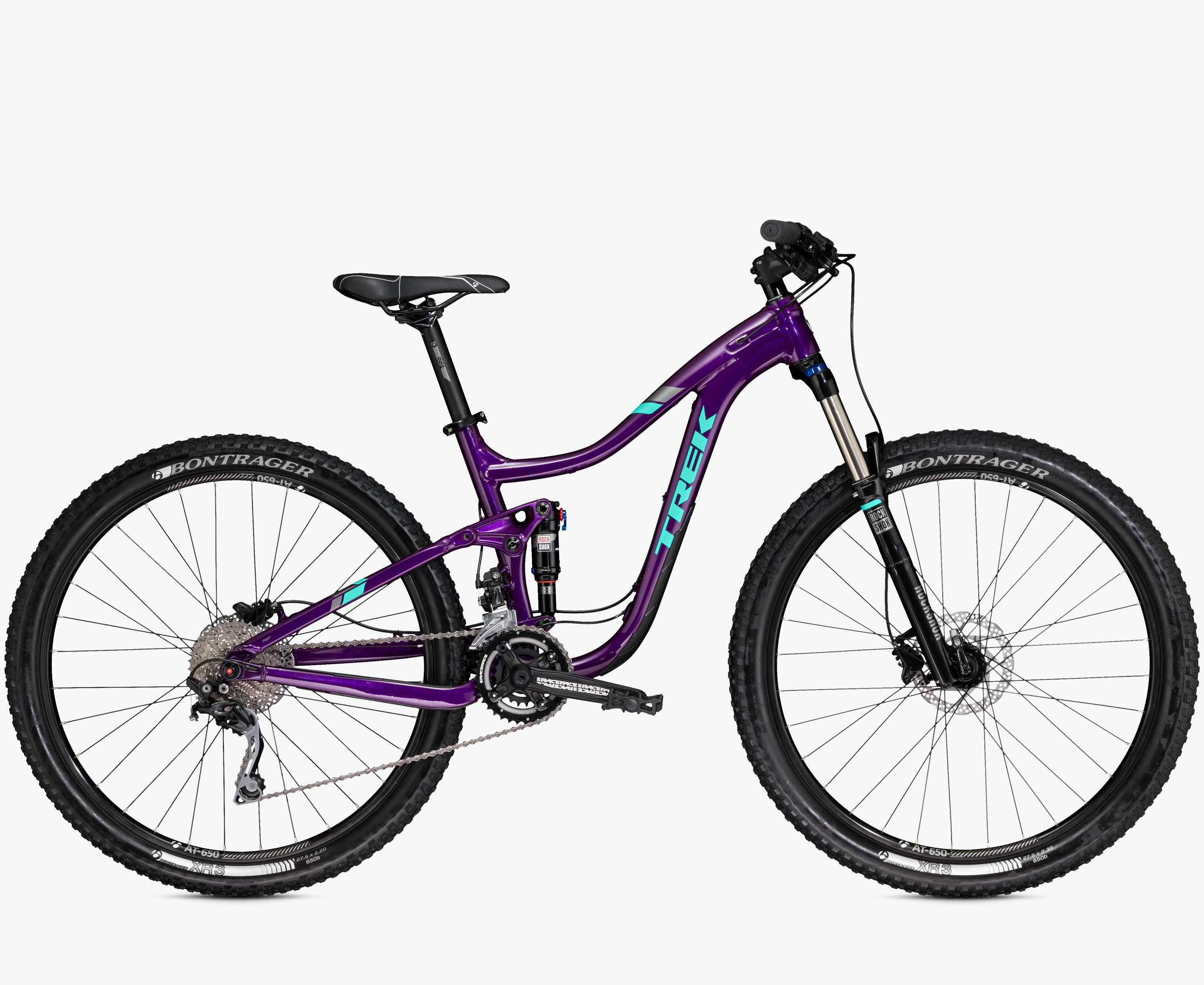

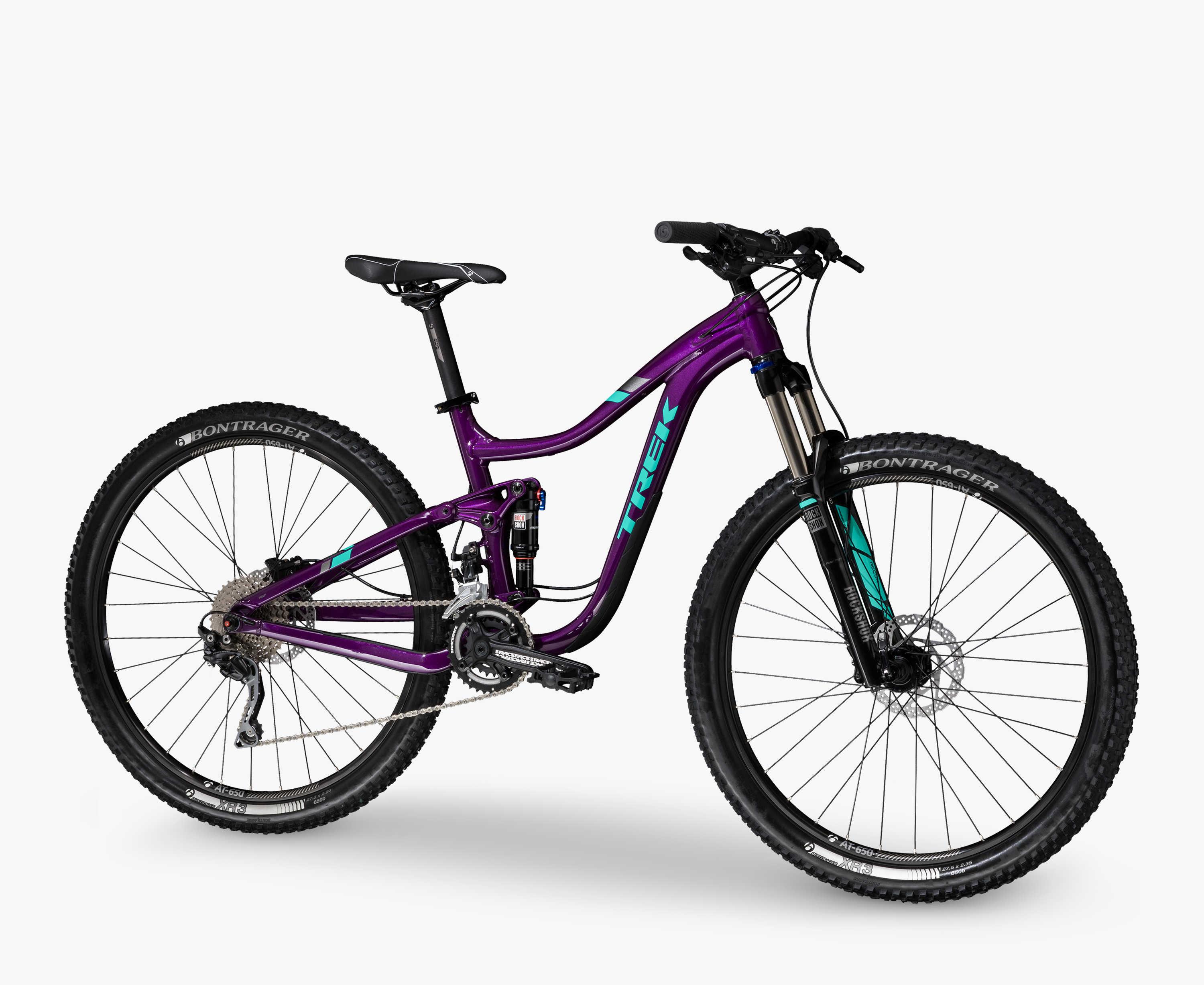

2016 Trek Lush 27.5 WSD
Mountain Dual Suspension bicycle from the Velopedia specification archive.
- Original MSRP
- $2,099.99
- Sizes
- 14, 15.5, 17, 18.5"
- Colors
- Purple Lotus
- Archive ID
- 1354497
Frameset
| Frame Construction | WSD Alpha Platinum Aluminum, ABP Convert, Full Floater, E2 tapered head tube, PF89.5, magnesium EVO link, internal derailleur & dropper post routing, down tube guard, 120mm travel |
|---|---|
| Frame Material | Aluminum |
| Fork | RockShox Recon Silver, Solo Air, TurnKey lockout, E2 tapered steerer, 15mm Maxle Lite, 120mm travel |
| Fork Material | Suspension |
| Rear Shock | RockShox Monarch RL, lockout, 6.75x1.75" |
Drivetrain
| Component Group | Shimano mix |
|---|---|
| Shifters | Shimano Deore, 10 speed |
| Front Derailleur | Shimano SLX |
| Rear Derailleur | Shimano Deore, Shadow |
| Crankset | Race Face Ride, 36/22 |
| Bottom Bracket | PF89.5 |
| Rear Cogs | Shimano HG50, 11-36, 10 speed |
| Chain | KMC X10 |
Brakes
| Brakes | Shimano M395 hydraulic disc |
|---|
Cockpit & Contact Points
| Headset | FSA IS-2, E2, sealed alloy cartridge |
|---|---|
| Handlebar | Bontrager alloy, 31.8mm, 15mm rise |
| Stem | Bontrager Elite, 31.8mm, 7 degree, Blendr compatible |
| Saddle | Bontrager Evoke 1 WSD |
| Seatpost | Bontrager SSR, 2-bolt head, 31.6mm, 12mm offset |
Wheels & Tires
| Hubs | Bontrager disc |
|---|---|
| Rims | Bontrager AT 650 Disc |
| Front Tire | Bontrager XR3, 27.5x2.30" front, 27.5x2.20" rear |
| Wheel Size | 27.5 |
Gallery
Specifications are presented as a reference. Components may vary by market, size, production run, or later manufacturer revisions.
