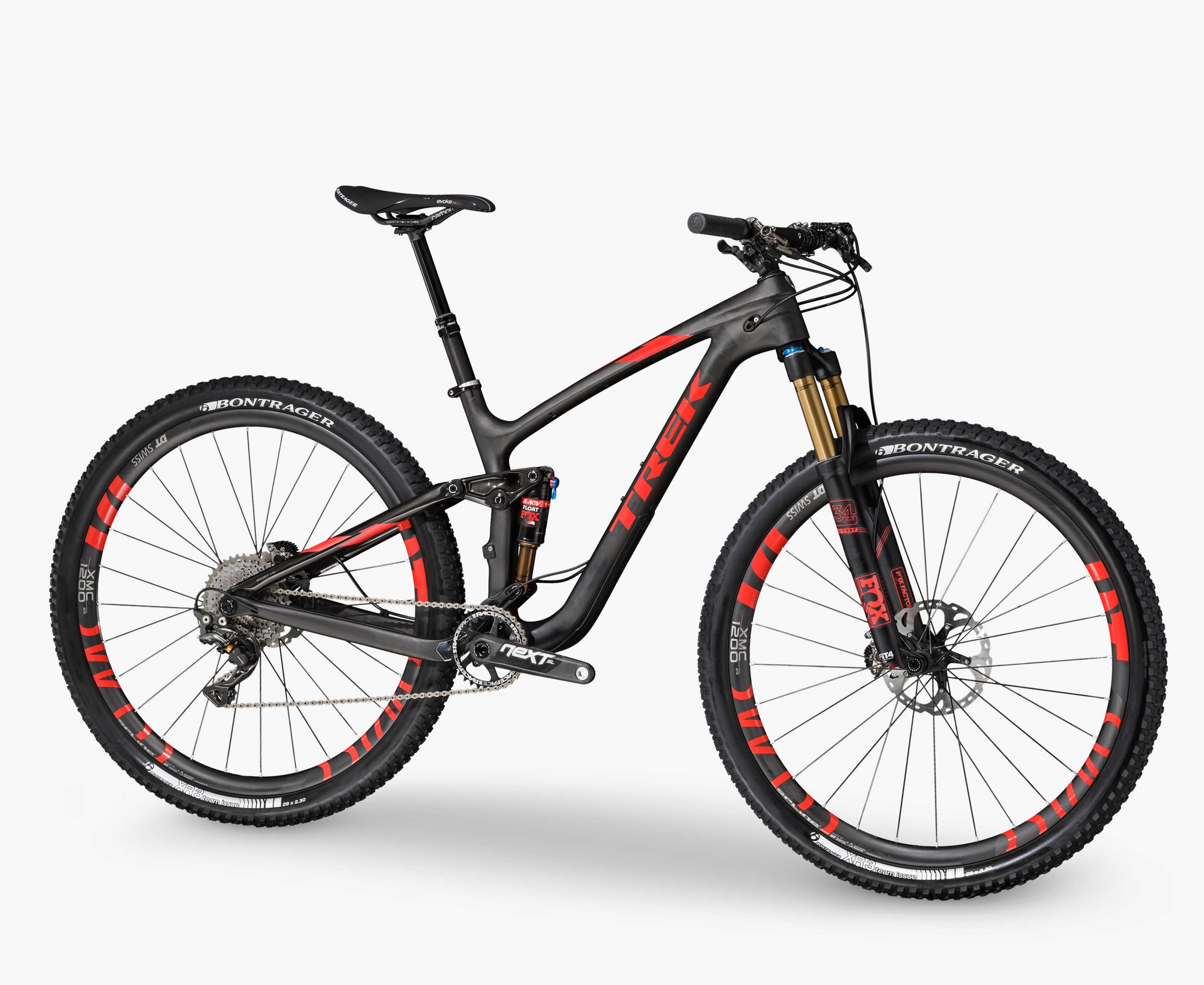

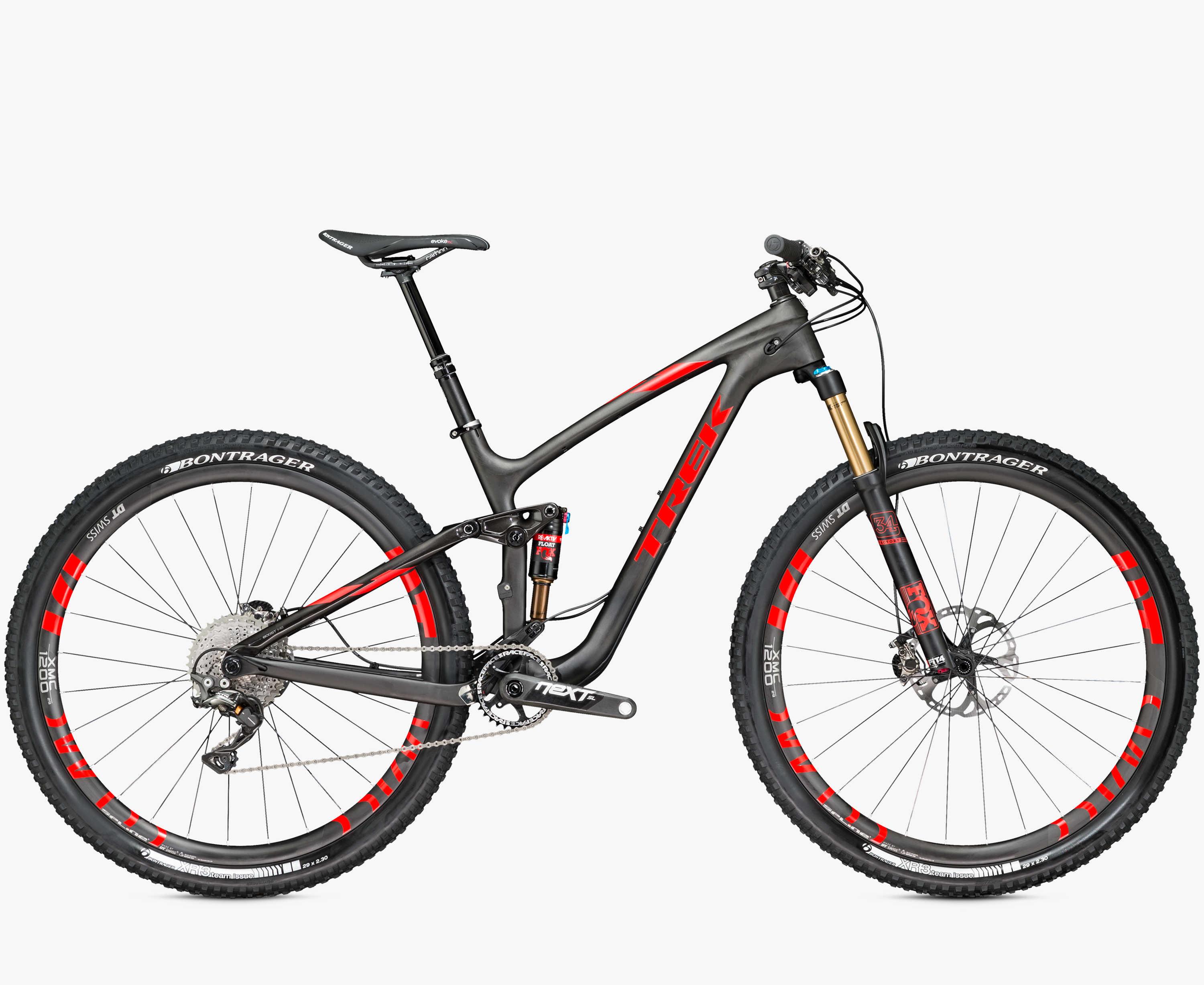

2016 Trek Fuel EX 9.9 29

Archived: 2016 Trek Fuel EX 9.9 29 · Mountain Dual Suspension · Published sizes: 15.5, 17.5, 18.5, 19.5, 21.5"

• Confirm the frame markings and seller description match this archived model. Note every component that differs from the published build.
• Record the frame serial number. It should be legible, unaltered and consistent with the seller’s ownership history.
• Find the size marking on the bicycle and confirm the fit before judging the condition or price.

Archived: Frame: OCLV Mountain Carbon main frame & stays, Boost148, Carbon Armor, ABP Convert, Full Floater, E2 tapered head tube, PF92, Control Freak internal control routing, ISCG 05 mount, magnesium EVO link, Mino Link, G2 Geometry, 120mm travel · Fork: Fox Factory 34 Float, FIT4 3-position damper w/open adjust, E2 tapered steerer, Kashima Coat, Boost110, G2 Geometry w/51mm offset, 120mm travel · Suspension

• Inspect the frame in bright light, especially the head tube, bottom-bracket area, chainstays and clamped surfaces. Look for cracks, ripples, crushed sections or signs of impact.
• Stand behind and in front of the bicycle to look for obvious frame, fork or wheel misalignment. Ask directly about crashes, transport damage and repairs.

Archived: Fork: Fox Factory 34 Float, FIT4 3-position damper w/open adjust, E2 tapered steerer, Kashima Coat, Boost110, G2 Geometry w/51mm offset, 120mm travel · Rear shock: Fox Factory Float EVOL, RE:aktiv 3-position damper, Kashima Coat, tuned by Trek Suspension Lab, 7.25x1.875"

• Inspect the fork stanchions for scratches or coating wear, look for oil or dirt rings at the seals, and cycle the fork through its travel while checking for binding or bushing play.
• Inspect the shock shaft and seals, cycle the rear suspension through its travel and check for oil, air loss, binding or unusual top-out and bottom-out noises.
• Hold the rear brake and load the suspension from several directions. Check pivots, bearings and mounting hardware for knock, looseness or side play.
• Ask for dated fork, shock and pivot-service records. A clean exterior does not establish the condition of internal seals, oil, bushings or bearings.

Archived: Group: Shimano XTR · Shifters: Shimano XTR, 11 speed · Rear derailleur: Shimano XTR, Shadow Plus · Crankset: Race Face Next SL, 32T · Bottom bracket: PF92 · Rear cogs: Shimano XTR, 11-40, 11 speed · Chain: Shimano XTR

• Shift through every available gear under light load. Hesitation, skipping or inconsistent indexing can reflect wear, damage, poor adjustment or mismatched replacement parts.
• Measure chain wear with a compatible gauge and inspect chainring, cassette or freewheel teeth. A new chain does not rule out wear in the remaining drivetrain.
• Turn the cranks slowly, feel for rough bearings and check for side-to-side play. Inspect crank arms, chainring bolts and pedal threads for looseness or damage.

Archived: Brakes: Shimano XTR Trail hydraulic disc

• Squeeze each lever firmly. It should feel consistent and return cleanly. Check levers, hoses and calipers for fluid, inspect pad thickness and contamination, and examine rotors for wear or bending.
• Before riding, test every installed brake separately at walking speed. Each should stop firmly and release cleanly without its control reaching the end of its usable travel.

Archived: Wheel size: 29 · Rims: DT Swiss XMC1200 Carbon, tubeless strips & valves · Hubs: DT Swiss XMC1200 Boost110 front, Boost148 rear · Front tire: Bontrager XR3 Team Issue, Tubeless Ready, 120tpi, aramid bead, 29x2.30"

• Spin both wheels and watch for side-to-side and vertical movement. Check spoke tension, rim condition and hub play. Inspect the carbon rims closely for impact marks, cracks, delamination or damage around spoke holes and bead hooks.
• Inspect both tire casings for cuts, cracking, plugs, bulges or exposed threads and confirm the installed sizes are safe for the rims and available frame and fork clearance.
• Remove and reinstall or closely inspect both wheel-retention systems. Axles or quick releases should tighten correctly with undamaged threads, hardware and dropouts.
• Confirm whether the bike is actually set up tubeless, whether both tires hold pressure, and when sealant and rim tape were last serviced.

Archived: Headset: FSA IS-2, E2, sealed alloy cartridge · Handlebar: Bontrager Rhythm Pro Carbon Low Riser, 31.8mm, 15mm rise · Stem: Bontrager Rhythm Pro, 31.8mm, 0 degree · Seatpost: RockShox Reverb Stealth, 2-bolt head, 31.6mm, zero offset · Saddle: Bontrager Evoke RXL, carbon rails

• Apply the front brake and rock the bike to check for headset play or notchiness. Inspect the stem, handlebar and clamp zones, then confirm every fastener and control is secure. Look particularly closely for crushing, scoring or cracks at carbon handlebar clamp areas.
• Cycle the dropper post repeatedly. It should reach full travel, remain extended under load and have no unusual oil, excessive rotational play or damaged remote, cable, hose or battery.

• Before riding, confirm both wheels are secure, tires are safe, both brakes function, and the headset, handlebar, stem, cranks and pedals have no looseness.
• Begin at low speed. Test steering, braking and shifting progressively, then load the drivetrain and suspension only after the basic safety checks pass.
• Listen and feel for repeated knocks, grinding, skipping, brake pulsation or movement at joints. Stop the test if the bicycle cannot be controlled safely.
